Mk-Messtechnik Product Quick Find
| Picture | Product Name | Key Parameters | ||||
| Analog Links | Channel | Voltage | Bit | Speed | Connector Type | |
 |
U1/8 | 1 Channel | +/-5 V | 8 Bit | DC - 50 MHz | BNC |
| |
U1/12 | 1 Channel | +/-15 V | 10 Bit | DC - 10 MHz | BNC |
| |
U1/12-1M | 1 Channel | +/-15 V | 10 Bit | DC - 1 MHz | BNC |
 |
U2/12 | 2 Channels | +/-15 V | 10 Bit | DC - 10 MHz | BNC |
| |
U2/12-1M | 2 Channels | +/-15 V | 10 Bit | DC - 1 MHz | BNC |
 |
U8/12-1M | 8 Channels | +/-15 V | 10 Bit | DC - 1 MHz | BNC |
 |
Ux/14 (x-up to 16 channels) |
1 to 16 Channels | +/-15 V | 10 Bit | DC - 100 kHz | BNC |
| Digital Links | Description | Speed | Connector Type | |||
 |
opto1394 | FireWire IEEE 1394 | 400 Mbit/s | IEEE1394 | ||
| |
optoLAN-100-MAX | 100BaseT Ethernet | 100 Mbit/s | RJ45 | ||
| |
optoLAN-Gb | 1GBit, 100BaseT, 10BaseT Ethernet | 1 GBit/s | RJ45 | ||
 |
optoRS232-HS | RS232 serial signals | 116 kBit/s | SUB-D9 female + male | ||
| |
optoRS485 | RS485 serial signals | 0..1MBit/s | SUB-D9 female | ||
 |

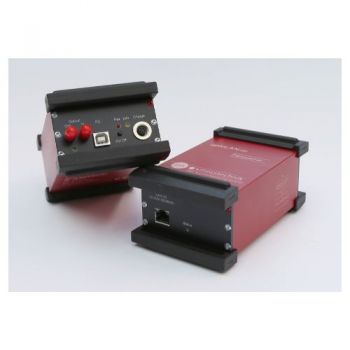

optoUSB2.0 | Universal Serial Bus 2.0 | 480MBit/s | 4x USB-A, USB-B(PC) | ||
 |
optoUSB2.0-RBDIR | Universal Serial Bus 2.0 | 480MBit/s | Rosenberger HSD | ||
| Input | Output | Comm speed | Connector | |||
 |
optoTTL-5-2-u | 16 TTL Channels | 3.5V or 5V | 3.5V or 5V | up to 100 kHz | SUB-S25 |
| |
optoTTL-12-5-u | 16 TTL Channels | 5V or 12V | 5V | up to 100 kHz | SUB-S25 |
| |
optoTTL-b-12 | 16 TTL Bidirectional | 12V | 12V | up to 10 kHz | 2x SUB-S25 |
| Automotive Links | Type | Speed | Connector Type | |||
 |
optoCAN-FD | CAN Bus | High Speed | 10 MBits/s | SUB-D9 female | |
 |
optoCAN-HS | CAN Bus | High Speed | 1 MBits/s | SUB-D9 female | |
 |
optoCAN-LS | CAN Bus | Low Speed | 125 kbit/s | SUB-D9 female | |
 |
optoCAN-SW | CAN Bus | Single Wire | 83 kbit/s | SUB-D9 female | |
 |
optoA2B | A2B signals | ADI AD242x chipset | Rosenberger HSD | ||
 |
optoFlex | Flexray-signals | 10 Mbit/s | SUB-D9 female | ||
 |
optoK | K-Line Signals | 30 kbit/s | SUB-D9 female | ||
 |
optoLIN | LIN-signals | 20 kbit/s | SUB-D9 female | ||
 |
optoPSI5 | PSI5 Signals | 200 kbit/s | BNC | ||
 |

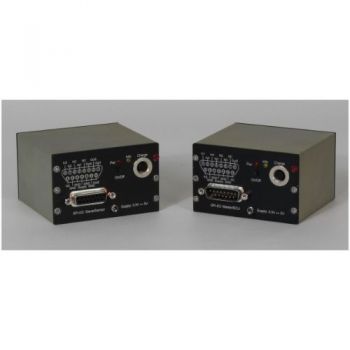

optoSPI | SPI Signals | 1 Mbit/s | SUB-D 15 | ||
 |
optoSENT | asynchrony SENT signals 8 Bit | >20 MS/s | SUB-D9 Male/Female | ||
| |
option -o2 | Adds second channel to optoSENT | ||||
| |
optoSENT-2-d | Bidirectional transition of SENT signals | SUB-D9 Male/Female | |||
 |
optoLVDS | Customized per application with required Chipset/pinout/connector/… | ||||
| Automotive Ethernet | Type | Chip Set | Connector Type | |||
 |
optoLAN-88Q1010 | 100Base-T1 | Marvell® 88Q1010 | Rosenberger HSD | ||
| |
optoLAN-GB 88Q2112 | 1GBase-T1 & 100BaseT1 | Marvell® 88Q2112 | Rosenberger HSD | ||
| |
optoLAN-GB 89883 | 1GBase-T1 & 100BaseT2 | Broadcom© BCM89810© | Rosenberger HSD | ||
| |
optoLAN-BCM89810 | 100Base-T1 | Broadcom© BCM89883© | Rosenberger HSD | ||
| |
optoLAN-BCM89811-88Q1010 | 100Base-T1 | Mix | Rosenberger HSD | ||
 |

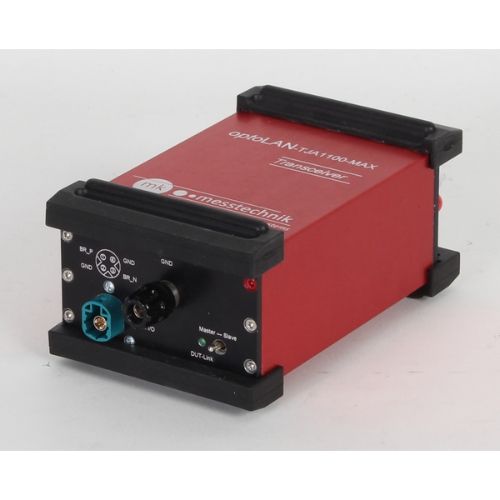

optoLAN-TJA1100-MAX | 100BaseT1 | NXP© TJA1100© | Rosenberger HSD | ||
 |
,-BroadR-Reach media converter HSD | Coverts 100BaseT1(automotive) to 100Bast-Tx network(standard) | Rosenberger HSD | |||
| |
,-BroadR-Reach GB media converter HSD | Coverts 1000BaseT1(automotive) to 1000Bast-Tx network(standard) | Rosenberger HSD | |||
| Camera | Type | Zoom | ||||
 |
dAV-Cr-HD | HD Camera, full-featured chamber use | Mic. Built-in | 20x-Opt (30x Option) / 12x-Dig | ||
| option -HiRF | Option for 600V/m HIRF fields | |||||
 |

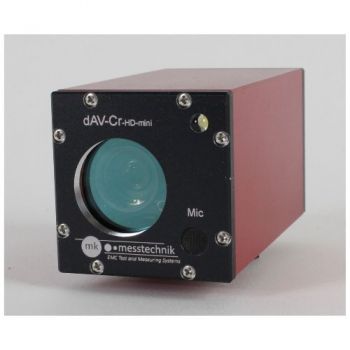

dAV-Cr-HD-mini | HD Camera, tripod/mobile applications | Mic. Built-in | 10x-Opt / 0x-Dig | ||
 |
dAV-Cr-HD-µ | HD Camera, close proximity monitoring | Mic. Built-in | 0x-Opt / 16x-Dig | ||
 |
optoLWIR | Infrared Camera | ||||
| Pan/Tilt | Type | |||||
 |

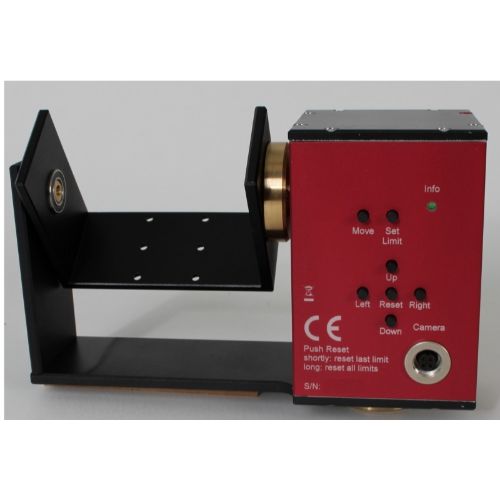

PT-02 | Pan/tilt for mounting in the chamber | ||||
 |
PT-03 | Pan/tilt more rugged for mobile use | ||||
 |
Camera control software ccs | Control Camera pan/tilt/zoom via software | ||||
 |
dAV-Rrc-Joy | Control Camera pan/tilt/zoom via external joystick | ||||
 |
dAV-Rrc-Joy-Matrix | Control Camera pan/tilt/zoom via external joystick Multichannel | ||||
| Camera Receiver | Type | |||||
 |
dAV-Rr-HD-TT | Tabletop Video/Audio Receiver | 1-4 Channels | |||
 |
dAV-Rr-HD-19" | Rackmount Video/Audio Reciever | 1-8 Channels | |||
 |
dAV-Rmrr 19" | Rackmount Video/Audio Reciever | 20 or 40 Channels | |||
 |
-dAV-quad 4k | Addon to receiver to combine 4 video signals | ||||
| -HDrec option | Addon to receiver to record video | |||||
| Audio/Video | Type | Connector Type | ||||
 |
dAV-a | Digital Audio Unidirectional Link | Mono | 3.5mm plug | ||
| |
dAV-b | Digital Audio Bidirectional Link | Mono | 3.5mm plug | ||
| |
dAV-v | Digital Video NTSC/PAL Unidirectional Link | 3.5mm plug | |||
 |
dAV-TRX | Bidirectional Intercom system | Mono | |||
| External Power supplies to extend Links run time | Voltage | Power | Works w/ | |||
| BP60-5f | 5 cell external power pack | 6V | 4Ah | Links | ||
| BP60-5f/10Ah | 10 cell external power pack | 6V | 10Ah | Links | ||
| PB120-5f | 10 cell external power pack | 12V | 4Ah | Cameras | ||
| SPS120 | Power Supply | 12V | Cameras | |||
| Hardened DC Battery Supplies | ||||||
 |
BV-10D | .+10V DC & -10V DC | regulated | 200mA | 2x10 cell | 2.5 Ah |
 |

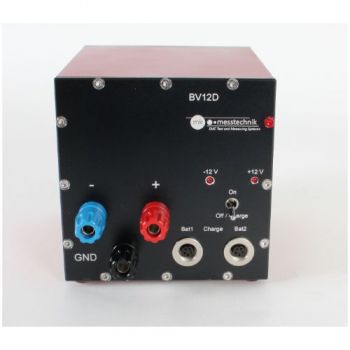

BV-12D | .+12V DC & -12V DC | unregulated | 200mA | 2x10 cell | 2.5 Ah |
 |

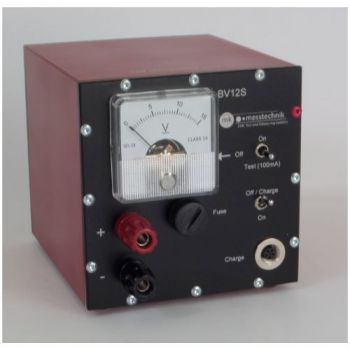

BV-12S | .+12V DC | unregulated | 1A | 10 cell | 4 Ah |
 |

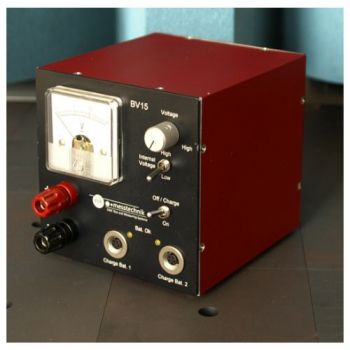

BV-15S | 3 to 15V DC | regulated | 500mA | 2x9 cell | 2.5 Ah |
 |
BV-24S | .+24V DC | unregulated | 3A | 2 cell | 15Ah |
