optoA2B, Fiber-optic, Automotive Link for A2B Signals

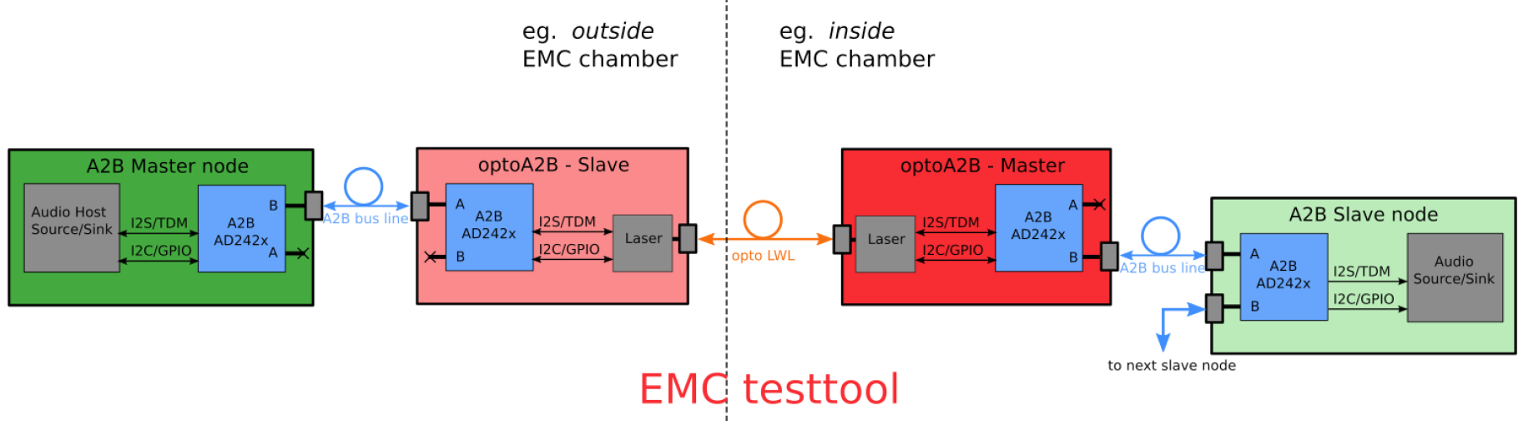

The optoA2B system is a robust solution for the optical transmission of A2B signals, designed to deliver high performance in EMI and EME test environments. The system comprises a master and a slave unit, both powered by internal batteries and interconnected via optical fiber. With its optical transmission capabilities and shielded casing, the optoA2B ensures reliable, interference-free signal transmission.

Key Features and Benefits

1. Reliable Optical Transmission:

   • Specifically designed for transmitting A2B signals via optical fiber.
   • Optimized for high-performance operation in challenging EMI and EME environments.

2. Portable and Flexible Design:

   • Battery-powered master and slave units offer portability and easy setup for versatile testing scenarios.
   • Optical fiber connection ensures high signal integrity.

3. Optional 19" Rack Integration:

   • One unit can be optionally integrated into a 19" rack housing for permanent setups.
   • Reduces setup time, minimizes error sources, and conserves workspace on the table.

4. Scalable Channel Capacity:

   • The 19" rack housing can accommodate up to eight communication links, including SENT, CAN, FlexRay, and more.
   • Channels can be added incrementally for future scalability.

The optoA2B system is an ideal solution for automotive and industrial testing environments requiring precise, interference-free transmission of A2B signals. Its scalable and compact design ensures it fits seamlessly into any testing setup.

   Go to our quick guide for all mk messtechnik fiberoptic links

A Quoted kit will consist of the following configuration:

optoA2B (AD2428) HSD optical link for A2B signals

• DUT SW has to be able to "build" a branch to integrate optoA2B in the total signal trace
• works with "Mentor" tools
• optoA2Bs (from SN: # 25128) are equipped with 10 μH inductors instead of 3.3 μH inductors at the front end for L5, L6
• according "AD240x, AD241x, AD242x, Reference Schematics Rev 2.0 , Sep 25, 2020".
• Compatibility to AD 243x Chipsets:
  • The optical link can also be used together with AD243x Chip(s) in customer's device(s), as long as
  • SPI over Distance is not used / not needed
  • "High Bus Power" (>2,7W) is not used / not needed
  • Other limitations may apply in special configurations, please contact us first

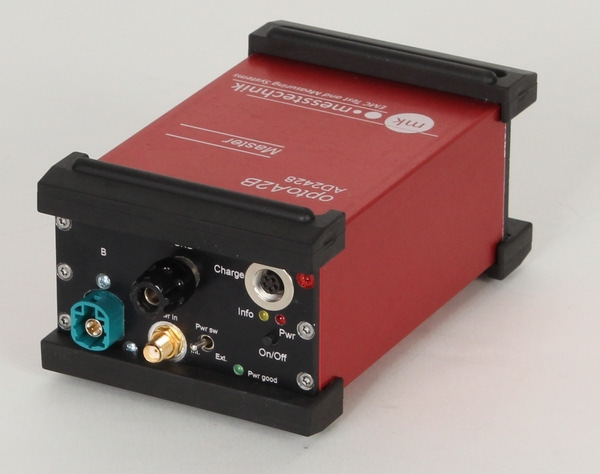

1x optoA2B Main (AD2428) HSD

• optical Main for A2B signals with AD2428 chipset integrated
• connector: Rosenberger HSD fixed pinout:
  • 1: B+
  • 2: GND
  • 3: B-
  • 4: GND
• A2B bus power switchable (internal / external via SMA)
• optical connector: 1x FSMA
• integrated NiMH batteries: 5 cells, 6 V/4 Ah
• battery run time: >10 h
• charge connector: female 5 pole Binder 712 (prepared for external supply)
• shielded aluminum housing
• Optional available external power supplies - prices on request:
  • BP60-5f (4 Ah shielded battery pack to power optical device inside ALC) OR
  • BP60-5f/10Ah (10 Ah shielded battery pack to power optical device inside ALC)
  • SC-30-5m5m (shielded connection cable)
  • PS75-5m (standard non-shielded wall plug power supply to be used outside ALC)

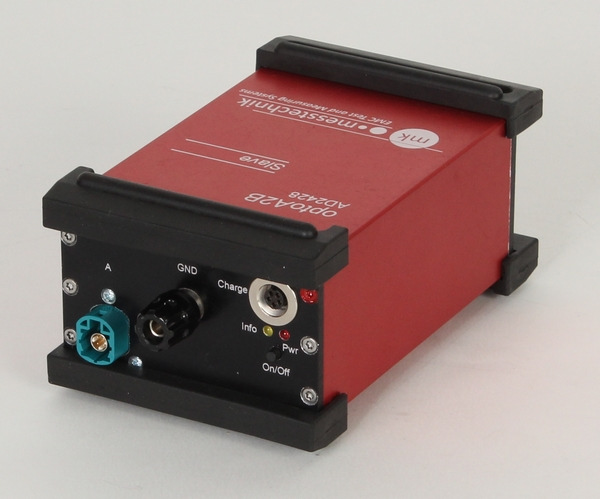

1x optoA2B Sub (AD2428) HSD

• optical Sub for A2B signals with AD2428 chipset integrated
• connector: Rosenberger HSD fixed pinout:
  • 1: GND
  • 2: A-
  • 3: GND
  • 4: A+
• optical connector: 1x FSMA
• integrated NiMH batteries: 5 cells, 6 V/4 Ah
• battery run time: >10 h
• charge connector: female 5 pole Binder 712 (prepared for external supply)
• shielded aluminum housing
• Optional available external power supplies - prices on request:
  • BP60-5f (4 Ah shielded battery pack to power optical device inside ALC) OR
  • BP60-5f/10Ah (10 Ah shielded battery pack to power optical device inside ALC)
  • SC-30-5m5m (shielded connection cable)
  • PS75-5m (standard non-shielded wall plug power supply to be used outside ALC)

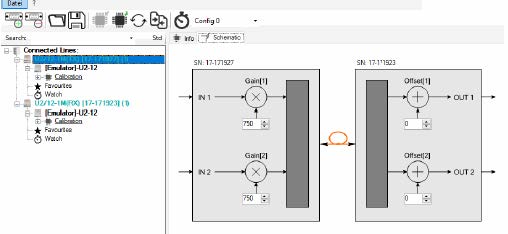

1x mkConfigSW

• to be used for EMS/EME-testing
• metal housing with connection plate enables GND connection if wanted/needed

1x  internal USB storage

• internal USB storage, integrated into the device, capacity approx. 4 GB
• Connector: type-B

1x  UC-180cm-[USB-A_male]-USB2.0-[USB-B_male]

• Standard USB2.0 cable
  • connector side 1: USB type A male
  • connector side 2: USB type B male
• total length (tip to tip): 1.8 m
• to be used outside ALC only. NOT to be used together with DUT testing

1x LWL-2-20m-[FSMA]-OM1_625-[FSMA]

• duplex optical fiber, cable type: OM1, multimode, 62,5/125 μm
• connector side 1: 2x FSMA male (metal), connector side 2: 2x FSMA male (metal)
• total length: 20 m

2x CH-1-5m standard plug-in charger

• number of cells: 4 .. 10 NiMH/NiCd cells up to 5 Ah
• AC-input: 100-240 V, charge current: 600-800 mA, charge connector: 5 pole male
• ***AC-plug: Type A (US), others on request
• NEW!!! Push pull option for devices (PP12)
  • optional push pull 12 mm power connector for devices
    • includes:
    • 12 mm push pull connector devices (all devices per set)
    • 12 mm push pull connector for chargers (all chargers or power supplies per set)

1x optoA2B initial setup support

• mandatory minimum initial setup support via phone / mail to be ordered with a "new" optoA2B system. Only needs to be ordered one time. If you order the same link again and have experience with the setup, please state this in the request and refer to the according serial number and this position could be omitted.
• Please note, that this is the minimum mandatory support. If the system is more complex than known at project start (not all facts comitted), it might be to have your working HW at mk onsite to evaluate the total setup and the engineering support could have to be raised if it runs out of hand.
• engineering (general) -1h
  • engineer work time [h]

Selection of Adator Cables (each included in quote only purchase what you want)

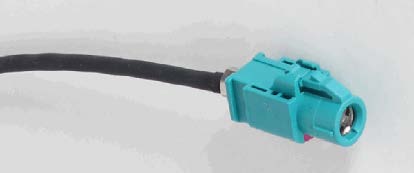

STPC_A2B_Main-200cm-[HSD-Z_female]-DACAR647-4-[open]

• customized shielded twisted pair adapter cable for optoA2B Main
• cable type: LEONI DACAR647-4
  • connector side 1: HSD Z female
  • connector side 2: open
• total length: 200cm
  • HSD => open end
  • HSD 1 (B+) => open (white)
  • HSD 2 => NC
  • HSD 3 (B-) => open (green)
  • HSD 4 => NC
• The strain relief is not the same grade as an original cable; you should NOT pull at the cable but at the crimped plug!

STPC_A2B_Sub-200cm-[HSD-Z_female]-DACAR647-4-[open]

• customized shielded twisted pair adapter cable for optoA2B Sub
• cable type: LEONI DACAR647-4
  • connector side 1: HSD Z female
  • connector side 2: open
• total length: 200cm
  • HSD => open end
  • HSD 1 => NC
  • HSD 2 (A-) => open (white)
  • HSD 3 => NC
  • HSD 4 (A+) => open (green)
• The strain relief is not the same grade as an original cable; you should NOT pull at the cable but at the crimped plug!

UTPC_A2B_Main-200cm-[HSD-Z_female]-Krocar64996795-[5 2 open]

• customized unshielded twisted pair adapter cable for optoA2B Main
• cable type: Kromberg & Schubert FLKCuMgU9Y-9Y (KROCAR 64996795)
  • connector side 1: HSD Z female
  • connector side 2: open
• total length: 200 cm
  • HSD => open end
  • HSD 1 (B+) => open (white)
  • HSD 2 => NC
  • HSD 3 (B-) => open (green)
  • HSD 4 => NC
• The strain relief is not the same grade as an original cable; you should NOT
  pull at the cable but at the crimped plug!

UTPC_A2B_Sub-200cm-[HSD-Z_female]-Krocar64996795-[open]

• customized unshielded twisted pair adapter cable for optoA2B Sub
• cable type: Kromberg & Schubert FLKCuMgU9Y-9Y (KROCAR 64996795)
  • connector side 1: HSD Z female
  • connector side 2: open
• total length: 200 cm
  • HSD => open end
  • HSD 1 => NC
  • HSD 2 (A-) => open (white)
  • HSD 3 => NC
  • HSD 4 (A+) => open (green)
• The strain relief is not the same grade as an original cable; you should NOT
  pull at the cable but at the crimped plug!
