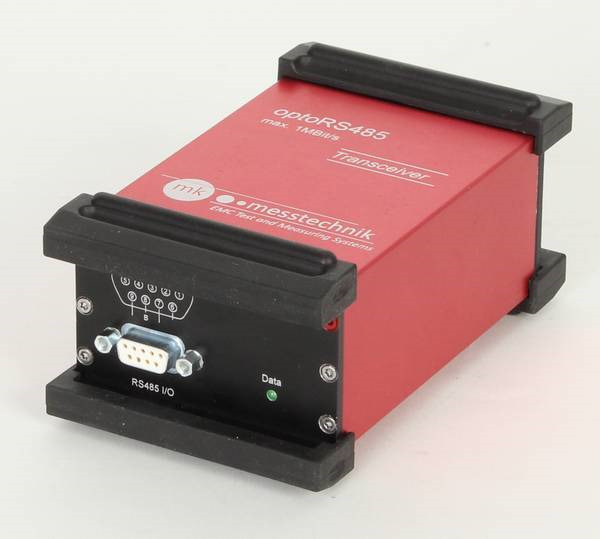

optoRS485, Fiber-optic Link for RS485 signals

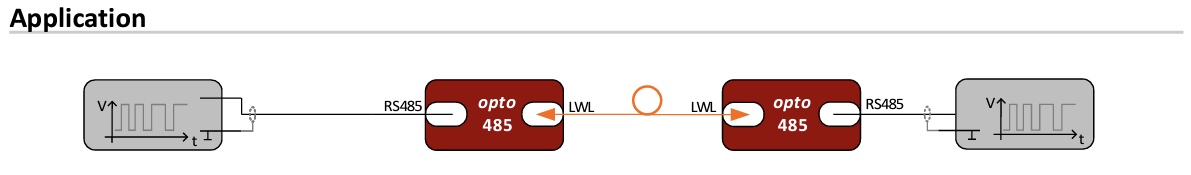

The optoRS485 system can be used for the optical transmission of RS485-signals up to a data rate of 1 Mbit/s. It can be used to transmit RS485-signals over long distances or to handle ground potential problems. With the optical transmission and the shielded case, the system is well equipped for EMI and EME tests.

MARKETS:

TEST STANDARDS:

optoRS485 Data Sheet

SPECIFICATIONS

optoRS485, Fiber-optic Link for RS485 signals


The optoRS485 system can be used for the optical transmission of RS485-signals up to a data rate of 1 Mbit/s. It can be used to transmit RS485-signals over long distances or to handle ground potential problems. With the optical transmission and the shielded case, the system is well equipped for EMI and EME tests.

   Go to our quick guide for all mk messtechnik fiberoptic links



Included in a System offer

Optical transmission of serial RS485 signals
signals: Data + / Data -
transmission: half duplex
data rate: max. 4 MBit/s, depending on signal integrity (cabeling, etc..)

  • 2x optoRS485 TransceiveroptoRS232-HS Transceiver-DUT
    • RS485 connector: SUB-D 9 male connector
    • Optical connector: 2 x FSMA
    • integrated NiMH batteries: 5 cells, 6 V/4 Ah
    • battery run time: >20 h
    • charge connector: female 5 pole Binder 712 (prepared for external supply)
    • shielded aluminum housing
  • 2x CH-1-5m
    • standard plug-in charger (e.g. Friwo)
    • number of cells: 4 .. 10 NiMH/NiCd cells up to 5Ah AC-input: 100-240V
    • charge current: 600-800mA charge connector: 5 pole male
    • AC-plug: Standard, Type A (US) others on request
  • 1x LWL-2-20m-[FSMA]-OM1_625-[FSMA]LWL-2-20m-[FSMA]-OM1_625-[FSMA]
    • duplex optical fiber (62,5/125µm), length 20m, FSMA-FSMA
