optoLIN, Fiber-optic, Automotive Link for LIN signals, 20kbit/s

The optoLIN system is a dependable solution for the optical transmission of LIN (Local Interconnect Network) signals, supporting transmission rates of up to 20 kbit/s. This advanced system comprises two identical, battery-powered transceivers connected via optical fiber, ensuring reliable and interference-free communication. Its optical transmission and shielded casing make it an ideal choice for EMI and EME test environments.

Key Features and Benefits

1. Reliable Optical Transmission:

   • Capable of transmitting LIN signals at speeds up to 20 kbit/s.
   • Ensures minimal interference and robust signal integrity, even in high-EMI environments.

2. Compact and Durable Design:

   • The system’s transceivers are housed in a rugged shielded case for optimal protection.
   • Portable, battery-powered design makes it suitable for various testing setups.

3. Optional 19" Rack Integration:

   • One side of the system can be integrated into a 19" rack housing for permanent setups.
   • This setup reduces error sources, minimizes setup time, and saves valuable workspace.
   • The rack housing can accommodate up to eight communication links, including SENT, CAN, FlexRay, and more. Channels can be added later as needed.

4. Integrated LVDS Option:

   • Available with an optional unidirectional LVDS (Low-Voltage Differential Signaling) transmission for additional testing capabilities.

Scalable and Flexible Configurations
Whether you require a tabletop solution or a streamlined rack-mounted setup, the optoLIN system adapts to your specific needs. Its modular design and scalability allow for future expansion, ensuring long-term value in testing environments.

Applications
The optoLIN system is ideal for automotive and industrial applications requiring precise and interference-free LIN signal testing, particularly in EMI and EME testing scenarios.

With its versatile configuration options, robust design, and reliable performance, the optoLIN system is an essential tool for any testing environment where signal integrity and flexibility are critical.

   Go to our quick guide for all mk messtechnik fiberoptic links

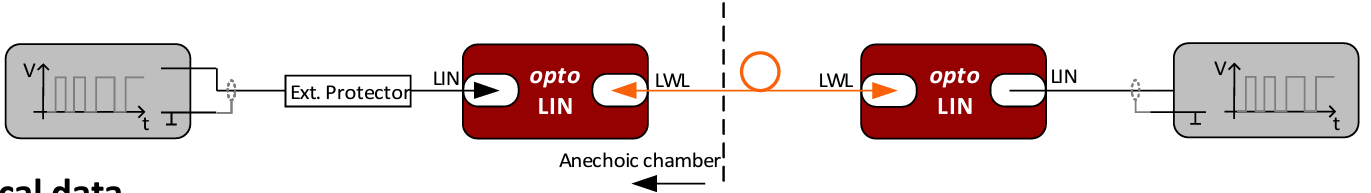

A Quoted kit will consist of the following configuration:

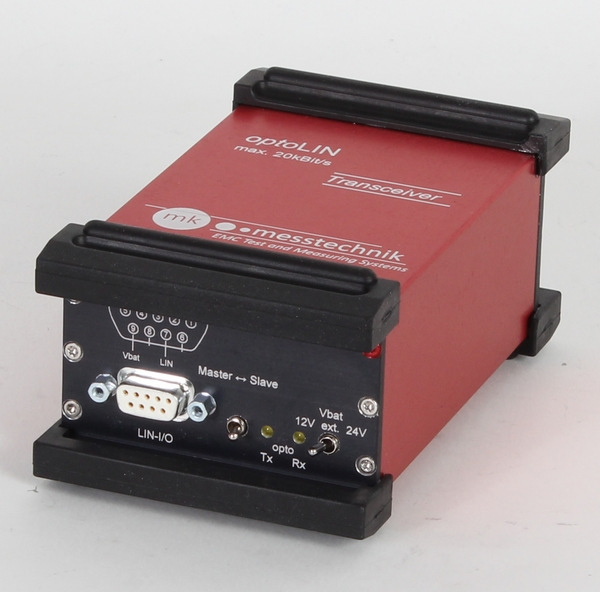

2x optoLIN Transceiver

• LIN-interface: max. 20 kbit/s, for 12 V and 24 V applications
• LIN-transceiver: TJA1021
• LIN-connector: SUB-D9
• Master/Slave switchable
• optical connector: 2x FSMA
• integrated NiMH batteries: 5 cells, 6 V/4 Ah
• battery run time: >40 h
• charge connector: female 5 pole Binder 712 (prepared for external supply)
• shielded aluminum housing
• available option: 19" rack mount (for several automotive links in 2HU)
• standard fiber length 20 m, other length on request
• other LIN transceivers available on request
• Optional available external power supplies - prices on request:
  • BP60-5f (4 Ah shielded battery pack to power optical device inside ALC) OR
  • BP60-5f/10Ah (10 Ah shielded battery pack to power optical device inside ALC)
  • SC-30-5m5m (shielded connection cable)
  • PS75-5m (standard non-shielded wall plug power supply to be used outside ALC)

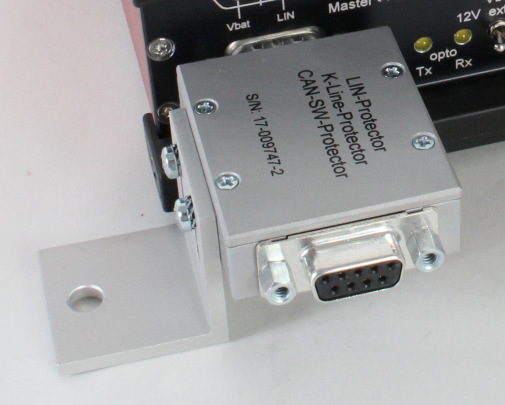

1x external LIN/K-Line/CAN-SW protector

• to be used for EMS/EME-testing
• metal housing with connection plate enables GND connection if wanted/needed

1x LWL-2-20m-[FSMA]-OM1_625-[FSMA]

• duplex optical fiber, cable type: OM1, multimode, 62,5/125 μm
• connector side 1: 2x FSMA male (metal), connector side 2: 2x FSMA male (metal)
• total length: 20 m

2x CH-1-5m standard plug-in charger

• number of cells: 4 .. 10 NiMH/NiCd cells up to 5 Ah
• AC-input: 100-240 V, charge current: 600-800 mA, charge connector: 5 pole male
• ***AC-plug: Type A (US), others on request
• NEW!!! Push pull option for devices (PP12)
  • optional push pull 12 mm power connector for devices
    • includes:
    • 12 mm push pull connector devices (all devices per set)
    • 12 mm push pull connector for chargers (all chargers or power supplies per set)
