U1/8, 1 Channel, 50 MHz, Analog Fiber-optic links

These measuring systems are used for the optical, digital transmission of analog signals with a resolution of 8 Bit and a maximal analog bandwidth of 50 MHz.

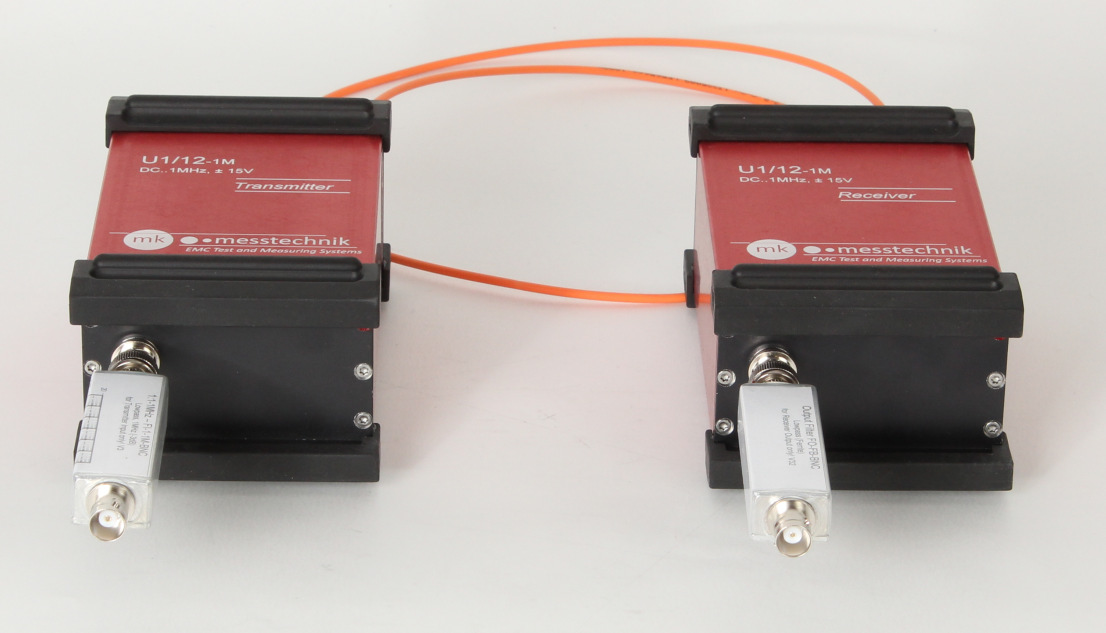

They consist of a transmitter supplied by an external power supply, a plastic optical fiber, and a receiver – which also has an external power supply.

Due to their insensitivity to strong electromagnetic fields above the specified transmission range, the systems are suitable for testing electromagnetic compatibility in EMC test chambers, TEM cells, and strip lines. The signal to be measured is filtered, sampled, digitized, and transmitted to the receiver via an optical transmitter system. At the receiver, the digital data stream is again converted into an analog signal and can be measured with a high-impedance probe (e.g., an oscilloscope) at the output.

   Go to our quick guide for all mk messtechnik fiberoptic links

A Quoted kit will consist of the following configuration:

U1/8-50M    digital optical transmission of analog signals
                   1 analog channel, resolution min. 8 bit, bandwidth max. 50 MHz (-3 dB) (250MS/s)

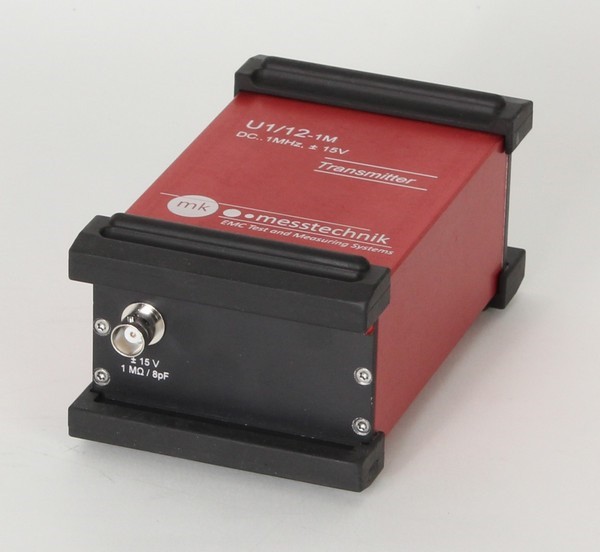

1x U1/8-50M Transmitter

• input voltage +/- 5 V (extendable via voltage dividers)
• connectors: BNC
• optical connector: FSMA
• shielded metal housing with integrated NiMH batteries, 5-pole female charge connector


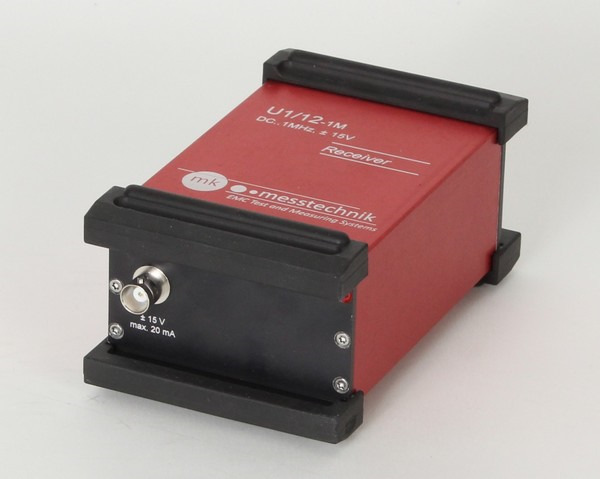

1x U1/8-50M Receiver

• output voltage +/- 5 V
• connectors: BNC
• optical connector: FSMA
• shielded metal housing with integrated NiMH batteries, 5-pole female charge connector


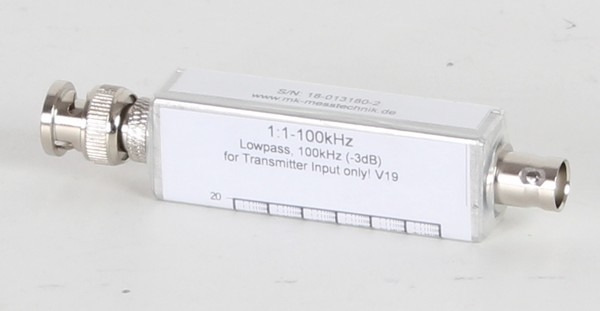

1x FI-1-50M-BNC

• external input filter to be used for EMS/EMI-testing with U1/8-50M
• connectors: BNC
• cutoff frequency (-3 dB): 50 MHz
• division ratio: 1:1 (others on request 1:2, 1:4, 1:10, ...)

1x FI-3-50M-BNC

• external input filter to be used for EMS/EMI testing with U1/8-50M
• connectors: BNC
• cutoff frequency (-3 dB): 50 MHz
• division ratio: 3:1
• => input range +/-15 V with this filter
• output level at receiver stays at +/-5 V => calculate with factor "*3" at measurement device


1x LWL-1-20m-[FSMA]-OM1_625-[FSMA]

• simplex optical fiber, cable type: OM1, multimode, 62,5/125 μm
• connector side 1: FSMA male (metal), connector side 2: FSMA male (metal)
• total length: 20 m

2x CH-1-5m standard plug-in charger

• number of cells: 4 .. 10 NiMH/NiCd cells up to 5 Ah
• AC-input: 100-240 V, charge current: 600-800 mA, charge connector: 5 pole male
• ***AC-plug: Type A (US), others on request
