optoLAN 100/1000Base-TX, 1 GBit/s, Fiber-optic Link Ethernet signals

This optical device is used for the bidirectional optical transmission of ethernet signals with a transmission rate of 1 GBit/s. It is downward compatible to 100BaseT and 10BaseT (automatically detected). The system consists of two identical transceivers supplied by batteries and a duplex 62.5/125µm-multimode optical cable.

A new type of connector is available now: The M12 connector (MMT471A315, counterpart MNF881A315-0001) by Metz Connect was integrated into our optical transmitter for Ethernet signals optoLAN, as well as optoLAN-Gb. Therefore, these devices are even fitter for tests of electromagnetic compatibility.

   Go to our quick guide for all mk messtechnik fiberoptic links

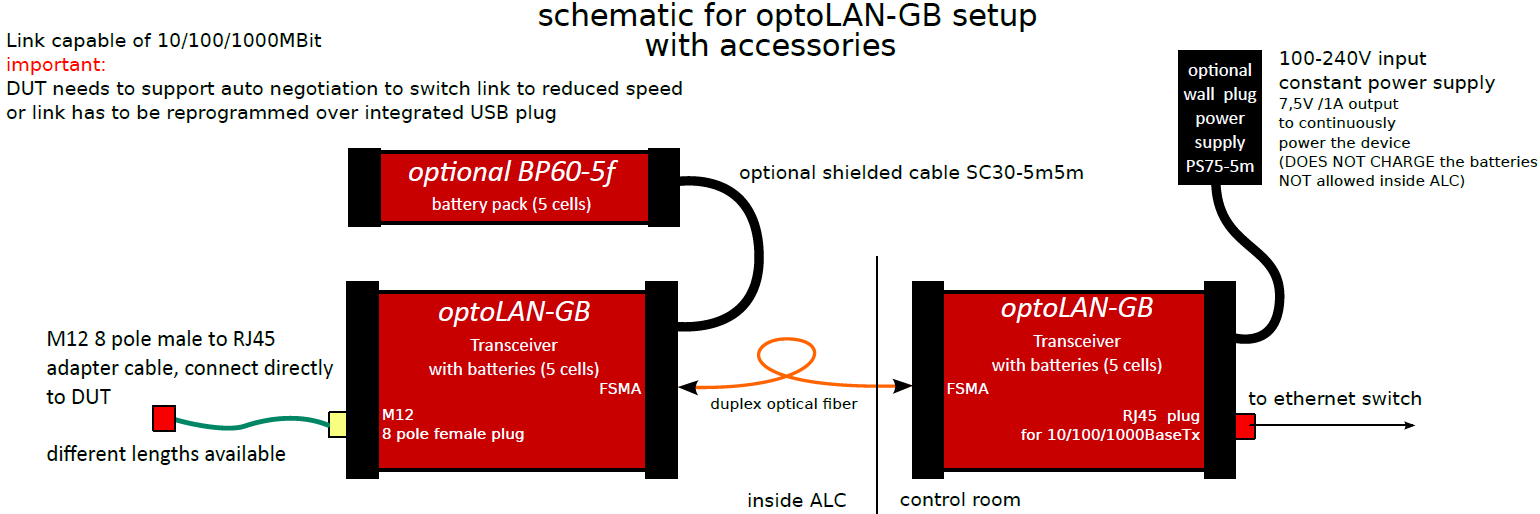

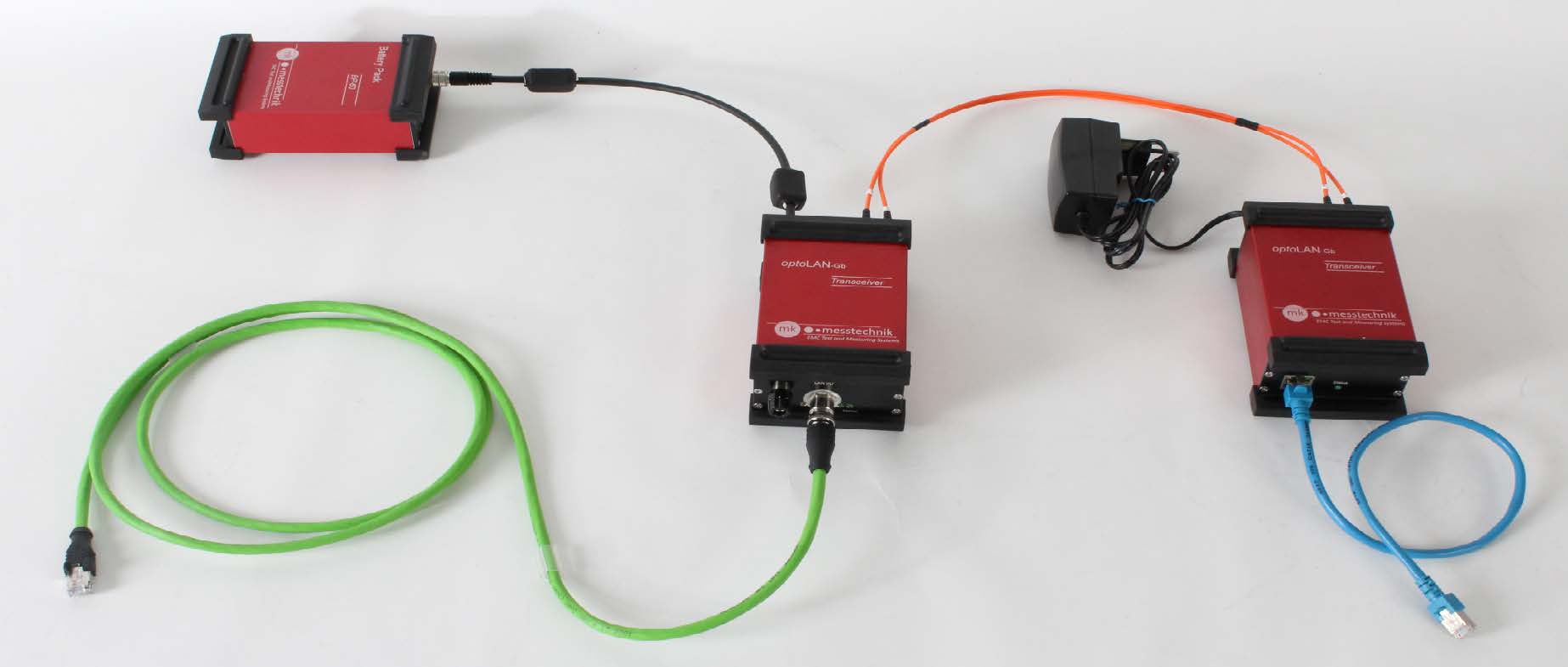

A Quoted kit will consist of the following configuration:

optical link for high-speed Ethernet (LAN) signals with up to 1 Gbit/s; one unit
equipped with M12 plug for improved EMC performance; standard adapter cable (M12-RJ45) 2 m included, others on request
DUT/counterpart needs "auto-negotiation" functionality to automatically detect 100 Mbit/s; else, the device has to be programmed externally
**Please note that 100/1000BaseTx is a consumer electronic interface that is not capable of automotive test levels!
**With the integrated batteries, shielded housing, and fully shielded connector with an adapter cable, it is maximum prepared for what is possible with this type of signal

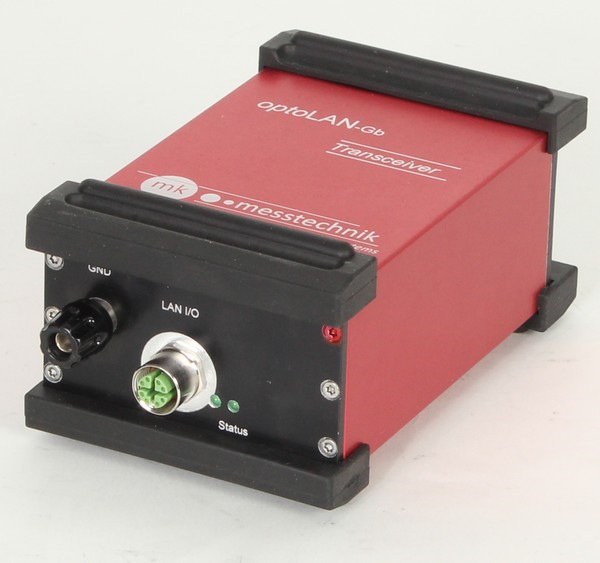

1x optoLAN 100/1000Base-TX BCM54616 Transceiver M12

• optical transceiver with standard 100/1000Base-TX outlet to optically connect to optoLAN 100/1000Base-TX BCM54616
• LAN-interface: max. 1 Gbit/s (100BaseT and 1000BaseTX automatically detected)
• LAN-connector: M12, improved shield connection, to be used inside ALC for high EMC performance
• M12 plug pinout (use adapter cable to RJ45):

  • 1: D1_P + 2: D1_N, 3: D2_P + 4: D2_N, 5: D3_P + 6: D3_N, 7: D4_P + 8: D4_N
• optical connector: 2x FSMA
• integrated NiMH batteries: 5 cells, 6 V/4 Ah, battery run time: >15 h
• charge connector: female 5 pole Binder 712 (prepared for external supply)
• shielded aluminum housing

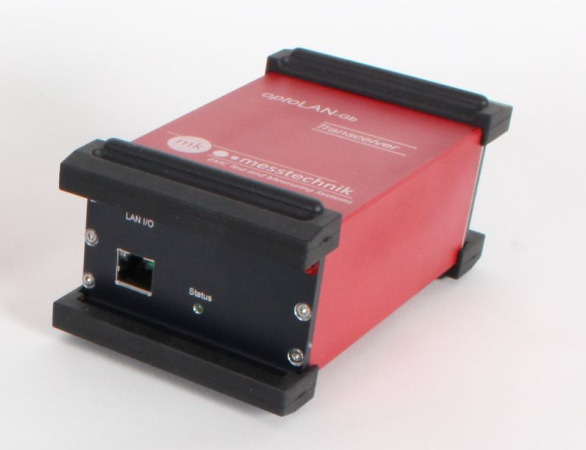

1x optoLAN 100/1000Base-TX BCM54616 Transceiver RJ45

• optical transceiver with standard 100/1000Base-TX outlet to optically connect to optoLAN 100/1000Base-TX BCM54616-M12 as well as automotive ethernet transceivers optoLAN 100/1000Base-T1 transceivers
• LAN-interface: max. 1 Gbit/s (100BaseT and 1000BaseTX automatically detected)
• LAN-connector: RJ45
• optical connector: 2x FSMA
• integrated NiMH batteries: 5 cells, 6 V/4 Ah, battery run time: >15 h
• charge connector: female 5 pole Binder 712 (prepared for external supply)
• shielded aluminum housing

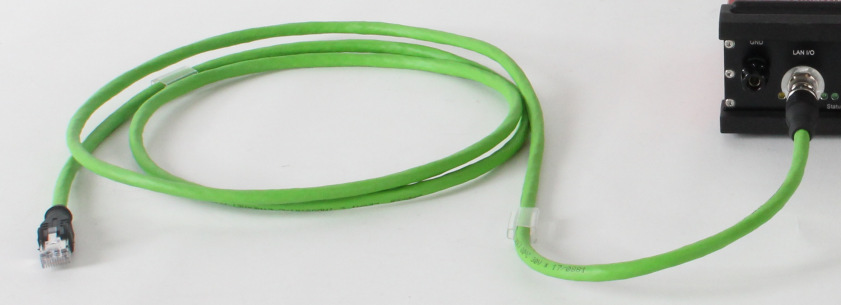

1x Metz M12 8 pole male- plug to RJ45 cable 200cm

• cable with Metz Connect M12 8 pole male plug to RJ45 male plug high quality fully shielded confectioned solution to connect optoLAN-GB transceiver directly to DUT
• length: ~2 m, cable quality: CAT6A

1x LWL-2-20m-[FSMA]-OM1_625-[FSMA]

• duplex optical fiber, cable type: OM1, multimode, 62,5/125 μm
• connector side 1: 2x FSMA male (metal), connector side 2: 2x FSMA male (metal)
• total length: 20 m

2x CH-1-5m standard plug-in charger

• number of cells: 4 .. 10 NiMH/NiCd cells up to 5 Ah
• AC-input: 100-240 V, charge current: 600-800 mA, charge connector: 5 pole male
• ***AC-plug: Type A (US), others on request
