optoUSB2.0, Fiber-optic Link for USB

The optoUSB-2.0 system can be used for the optical transmission of USB-signals up to a data rate of 480 Mbit/s according to USB2.0. It can be used to transmit USB-signals over long distances or to handle ground potential problems. With the optical transmission and the shielded case, the system is well equipped for EMI and EME tests.

  • optoUSB2.0 USB hub with 4 USB ports (not as EMI robust as -RBRIR version)
  • optoUSB2.0-RBDIR uses a Rosenberger connector which has been proven to be more EMI robust)
  • optoUSB3.0 USB hub with 2 USB ports (not as EMI robust as 2.0-RBRIR version)

MARKETS:

TEST STANDARDS:

Data Sheet

SPECIFICATIONS

optoUSB 2.0, Fiber-optic Link for USB 2.0


The optoUSB-2.0 system can be used for the optical transmission of USB-signals up to a data rate of 480 Mbit/s according to USB2.0. It can be used to transmit USB-signals over long distances or to handle ground potential problems. With the optical transmission and the shielded case, the system is well equipped for EMI and EME tests.

  Go to our quick guide for all mk messtechnik fiberoptic links

A Quoted kit will consist of the following configuration:

optical link for the transmission of USB2.0 signals (max. 480 Mbit/s)
NOT compatible with Apple car play
NOTE: This USB link has no rf improved USB connector and is not meant to be used directly with a DUT. Use optoUSB2.0 -RBDIR instead
1x optoUSB2.0 Transceiver-Hub

  • USB-connector (Hub): 4x type-A
  • optical connector: FSMA
  • shielded metal housing with integrated NiMH batteries, 5-pole female charge plug, documentation

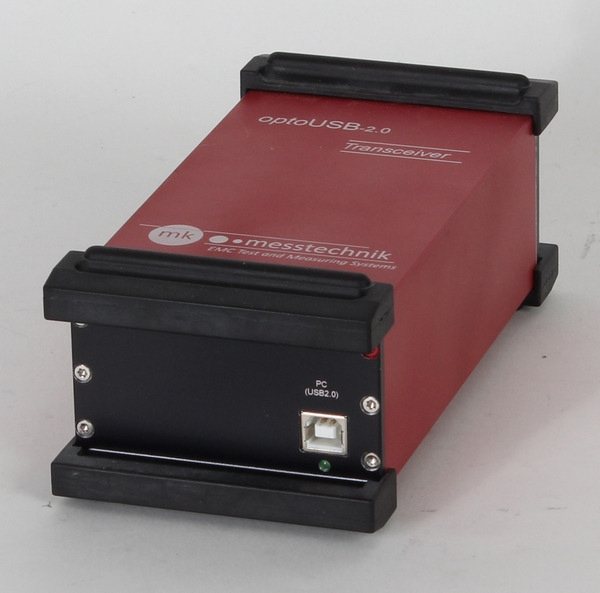

1x optoUSB2.0 Transceiver-PC

  • USB-connector (to PC): 1x type-B
  • optical connector: FSMA
  • shielded metal housing with integrated NiMH batteries, 5-pole female charge plug

1x C-USB2.0 A-B

  • Standard USB cable, length approx. 1.8 m
  • Connectors: type-A - type-B
    • To be used outside ALC only. NOT to be used together with DUT testing

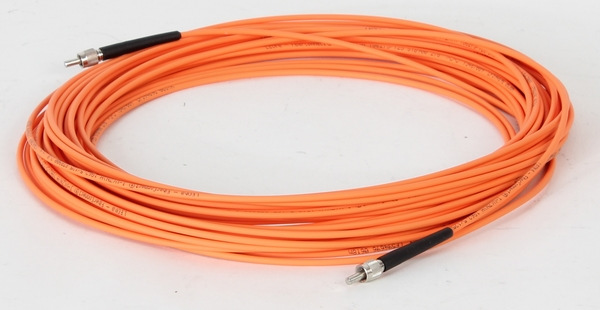

1x LWL-1-20m-[FSMA]-OM1_625-[FSMA]

  • simplex optical fiber, cable type: OM1, multimode, 62,5/125 μm
  • connector side 1: FSMA male (metal), connector side 2: FSMA male (metal)
  • total length: 20 m

2x CH-1-5m standard plug-in charger

  • number of cells: 4 .. 10 NiMH/NiCd cells up to 5 Ah
  • AC-input: 100-240 V, charge current: 600-800 mA, charge connector: 5 pole male
  • ***AC-plug: Type A (US), others on request
