optoRS232-HS, Fiber-optic Link for RS232 signals

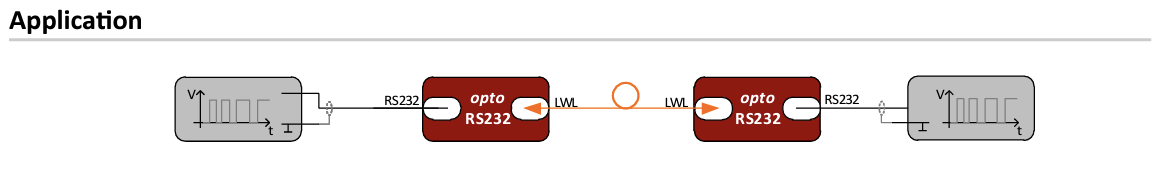

The optoRS232-HS system can be used for the optical transmission of RS232 signals (hardware handshake) with transmission rates of up to 116 kbit/s. It consists of two identical battery-supplied transceivers connected to each other with an optical fiber. With the optical transmission and the shielded case, the system is well equipped for EMI and EME tests.

   Go to our quick guide for all mk messtechnik fiberoptic links

Included in a System offer

optical transmission of serial RS232 signals with a handshake
data rate: max. 116kBit/s

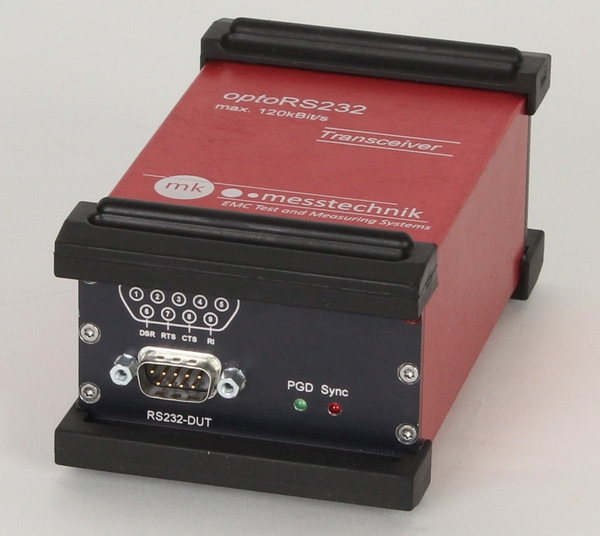

• 1x optoRS232-HS Transceiver-DUT

  • RS232 connector: SUB-D 9 male plug
  • Optical connector: FSMA
  • Shielded metal housing with integrated NiMH batteries, 5-pole female charge plug, documentation

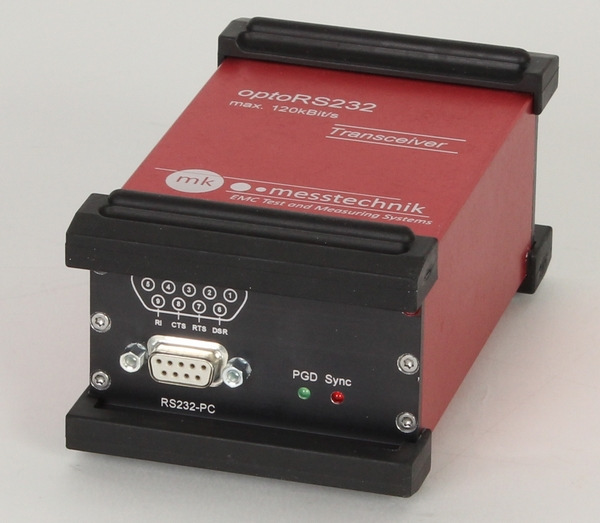

• 1x optoRS232-HS Transceiver-PC

  • RS232 connector: SUB-D 9 female plug
  • Optical connector: FSMA
  • Shielded metal housing with integrated NiMH batteries, 5-pole female charge plug
• 2x CH-1-5m

  • standard plug-in charger (e.g. Friwo)
  • number of cells: 4 .. 10 NiMH/NiCd cells up to 5Ah AC-input: 100-240V
  • charge current: 600-800mA charge connector: 5 pole male
  • AC-plug: Standard, Type A (US) others on request
• 1x LWL-2-20m-[FSMA]-OM1_625-[FSMA]

  • duplex optical fiber (62,5/125µm), length 20m, FSMA-FSMA
