dAV-Cr-HD-Mini Camera, EMI Hardened, HD

The dAV-cr-HD-mini Camera is a high-performance imaging solution designed for professional monitoring, testing, and inspection applications. With its powerful 10x optical zoom and digital zoom, this camera provides exceptional image clarity and detail, making it ideal for environments where precision and accuracy are essential.

Key Features:

• High-Definition Video Capture: Delivers crystal-clear HD video for accurate monitoring and analysis.
• Enhanced Zoom Capability: The 10x optical zoom ensures sharp, close-up views without loss of quality, while the digital zoom extends the range for distant targets.
• Robust and Reliable Build: Engineered for demanding applications, ensuring long-term reliability even in challenging environments.
• Versatile Application Use: Suitable for EMC testing, product inspections, surveillance, and remote observation tasks where precision imaging is required.

Applications:

The dAV-cr-HD-mini Camera is designed for technical environments where real-time monitoring and detailed video analysis are critical. The smaller size allows it to easily fit into smaller areas. Its advanced functions allow for precise inspection of devices under test (DUTs), making it indispensable for EMC testing labs, product development facilities, and industrial monitoring tasks.

Choose the dAV-cr-HD-mini Camera for unparalleled video clarity, advanced zoom performance, and professional-grade reliability. Contact Absolute EMC LLC today for more information and sales inquiries.

   Go to our quick guide for all mk messtechnik fiberoptic links

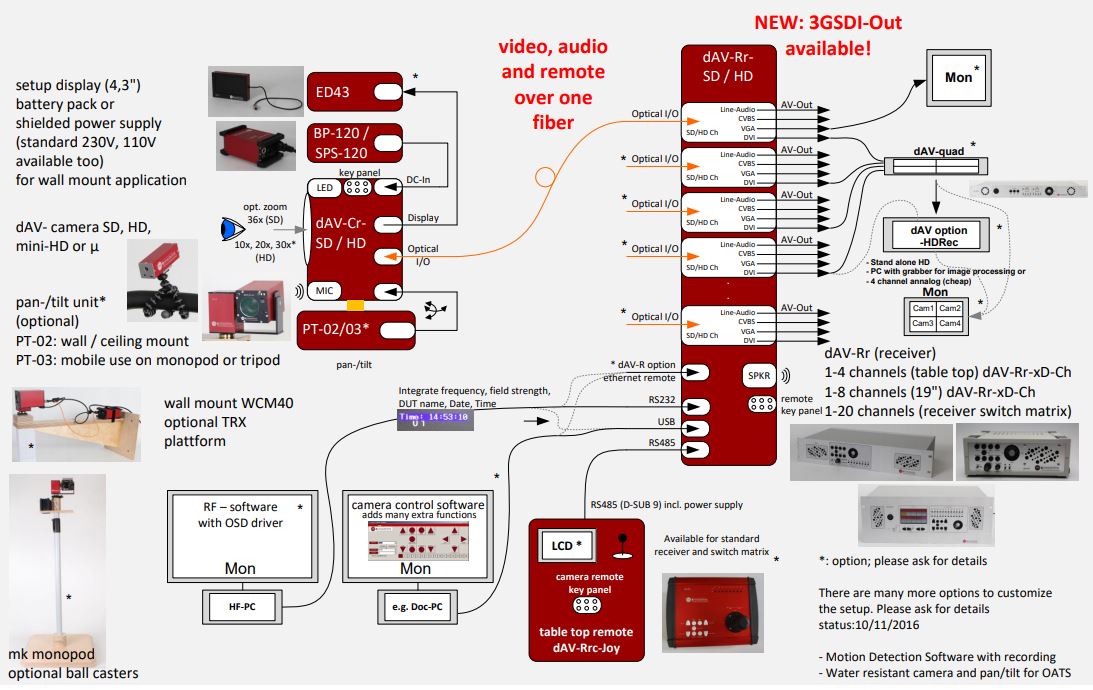

A Quoted kit will consist of the following configuration:

• dAV-Cr-HD-mini
  • high definition camera (1080p) with digital optical transmission and 10x optical zoom
  • 2 battery packs, 2 different shield cable lengths and 1 fiber included

1x dAV-Cr-HD-mini

• HD-resolution camera (1080p)
• remote controllable (from receiver)
• 10x optical zoom, focus, brightness, integrated short range LED-lights, etc.;
• min. illumination: 0,5 lux;
• integrated mono-microphone; 3 pole male power plug
• optical connector: FSMA (simplex, signal and remote on one fiber)
  (push pull plug optional available)

• optional pan/tilt-unit for mobile use or fix installation
• additional functions (manual iris/shutter etc.) controllable via optional software (-ccs)

1x dAV tripod mount

• milled aluminum tripod mount adapter with 1/4" screw hole, to be mounted to dAV-Cr camera (2x M6x2,5mm)
• use case: mount camera without pan/tilt directly to standard 1/4" tripods with manual ball head

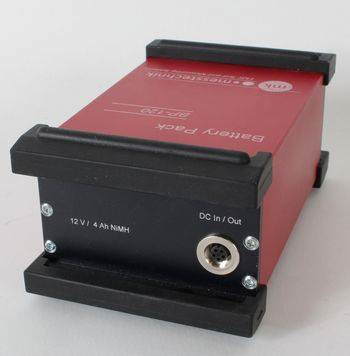

2x BP120-5f (sold with dAV-Cr-HD-30-sk)

• 12 V NiMH battery pack, capacity 4 Ah (10 cells)
• in shielded metal housing with rubber protectors;
• suitable for dAV-C and others, 5 pole female charge connector
• BP-holder
  • battery pack holder with velcro stripes;
  • to be attached with velcro e.g. to tripod to keep battery pack in place;
• SC-60cm-[712_3female]-[712_5male]
  • shielded adapter cable with folding ferrites, to be used with battery packs
  • BP-120-5f or external shielded power supply SPS120-5f in combination with
  • Binder plug cameras
  • Connectors:
    • connector side 1: Binder 712 , 3-pole female
    • connector side 2: Binder 712 , 5-pole male
    • total length: 60 cm
• SC-140cm-[712_3female]-[712_5male]
  • shielded adapter cable with folding ferrites, to be used with battery packs
  • BP-120-5f or external shielded power supply SPS120-5f in combination with
  • Binder plug cameras
  • Connectors:
    • connector side 1: Binder 712 , 3-pole female
    • connector side 2: Binder 712 , 5-pole male
    • total length: 140 cm

2x CH-1-5m standard plug-in charger

• number of cells: 4 .. 10 NiMH/NiCd cells up to 5 Ah
• AC-input: 100-240 V, charge current: 600-800 mA, charge connector: 5 pole male
• ***AC-plug: Type A (US), others on request
• NEW!!! Push pull option for devices (PP12)
  • optional push pull 12 mm power connector for devices
    • includes:
    • 12 mm push pull connector devices (all devices per set)
    • 12 mm push pull connector for chargers (all chargers or power supplies per set)

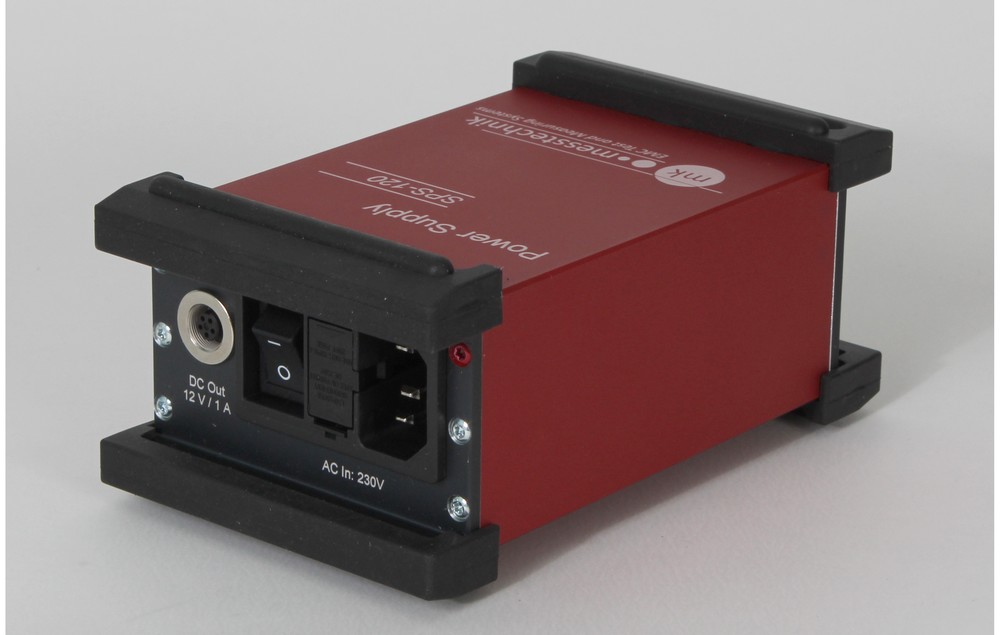

1x SPS120-5f (sold with dAV-Cr-HD-mini PS)

• linear controlled shielded external power supply, applicable for use with dAV-Cr
• input: 220 .. 240 VAC; 50 .. 60 Hz, IEC60320 - C14 plug (male)
• output: 12 V/1 A
• connector: 5-pole female
• 115 V input available on request -> STATE clearly IN PO to avoid confusion without shielded cable, needs to be added separately

1x LWL-1-20m-[FSMA]-OM1_625-[FSMA]

• simplex optical fiber, cable type: OM1, multimode, 62,5/125 μm
• connector side 1: FSMA male (metal), connector side 2: FSMA male (metal)
• total length: 20 m

 A receiver dAV-rr-HD-xx  is also required, quoted separately

 Options:

Part #	Discription	Pictures

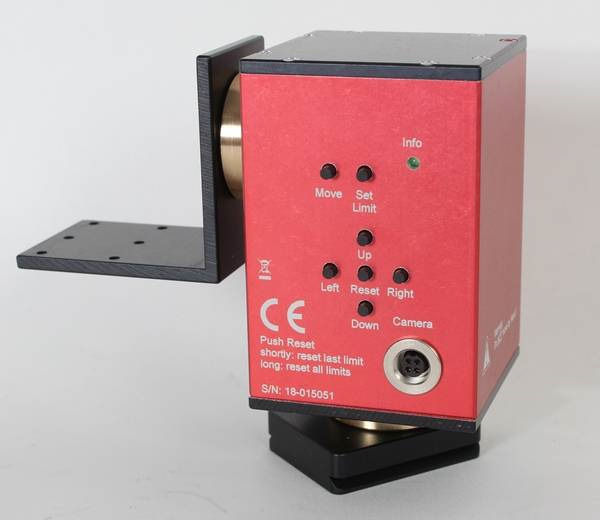

PT-02	Pan/tilt unit for wall mount application 1/4" standard tripod thread mount and quick release socket shielded metal housing; powered by the camera with shielded cable (separate position) standard range horizontal: approx. +/- ~90° standard range vertical: approx. +20°/-70° to be able to see below the wall mount "Move" AND "set limit" buttons to be able to turn the pan/tilt at place integrated safety clutch on both axes to prevent broken gears and motors due to force overload (e.g. from moving by hand) standard programmed for wall mount application. Please inform us, if ceiling mount is required left/right and up/down directions need to be inverted)

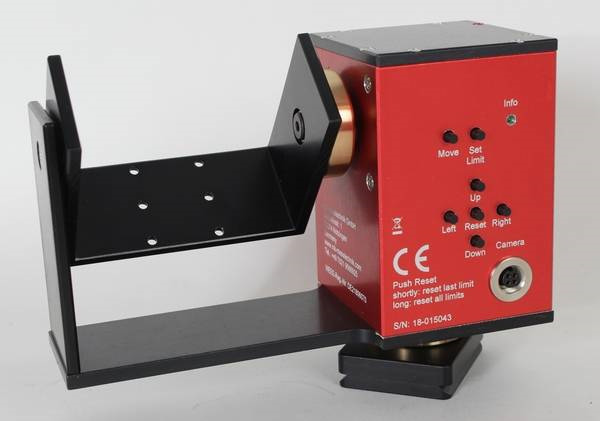

PT-03	Mechanical robust pan/tilt unit for mobile use (e.g. on tripod) pan/tilt unit with mechanical robusted mounting bracket 1/4" standard tripod thread mount and quick release socket shielded metal housing; powered by camera with shielded cable (separate position) standard range horizontal: approx. +/- ~90° standard range vertical: approx. +/- ~45° "Move" AND "set limit" buttons to be able to turn the pan/tilt at place integrated safety clutch on both axes to prevent broken gears and motors due to force overload (e.g. from moving by hand)
option -LP	Lower-cost versions availiable without audio
option -HIRF	Additional rf-gaskets and cable shieldings as well as additional screws. EMI susceptibility >> 600 V/m up to 40 GHz

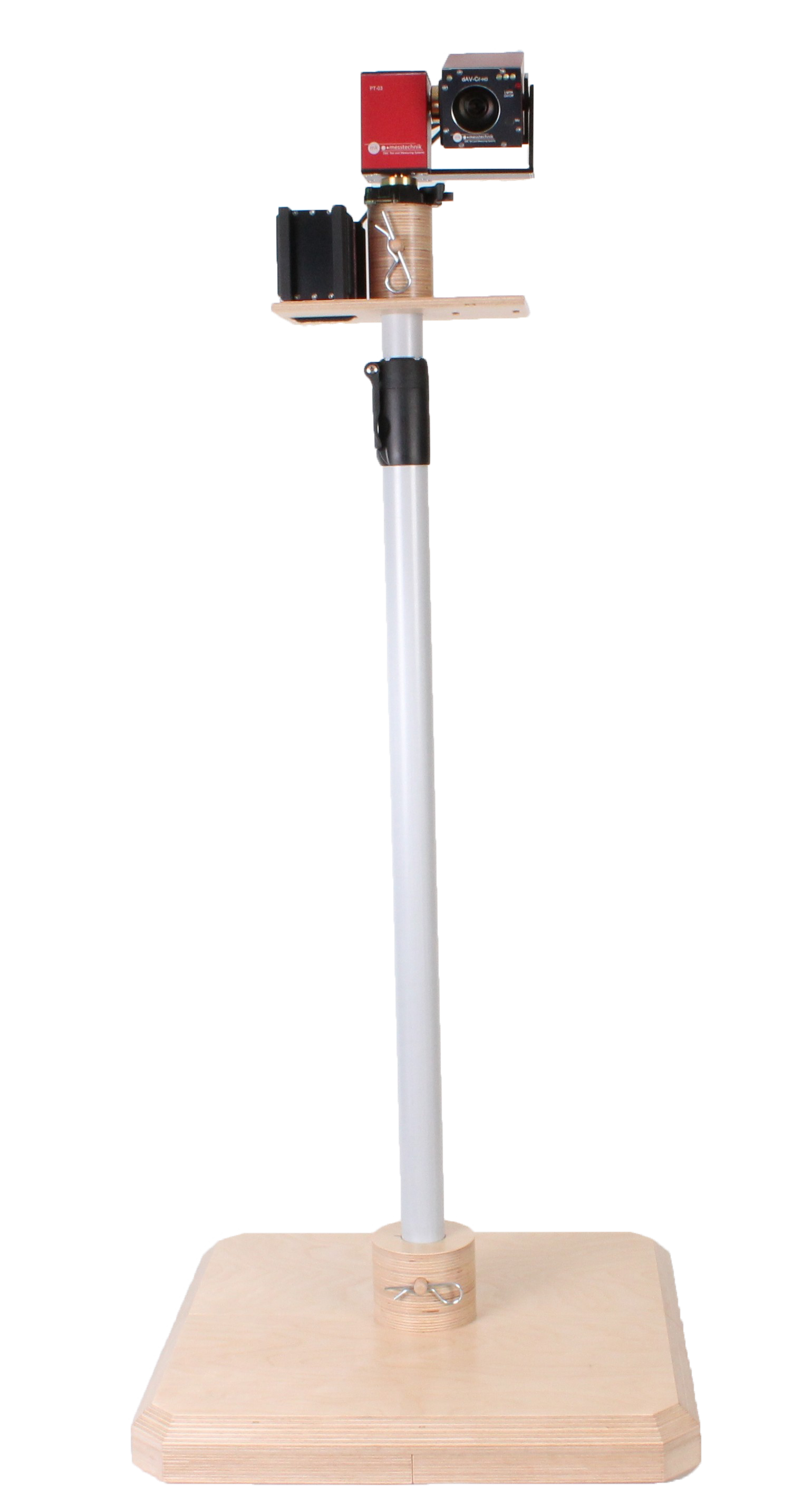

Monopod - wood with Casters	mk monopod made of wood and glass fiber with quick release functionality wooden monopod to mount dAV-Cr camera with pan/tilt (1/4" thread) with height adjust possibility (~1,1 m - 1,8 m) and massive bottom stand with casters If no pan/tilt (PT-03) is ordered, the camera is mounted in a straight position (optional manual pan/tilt available)

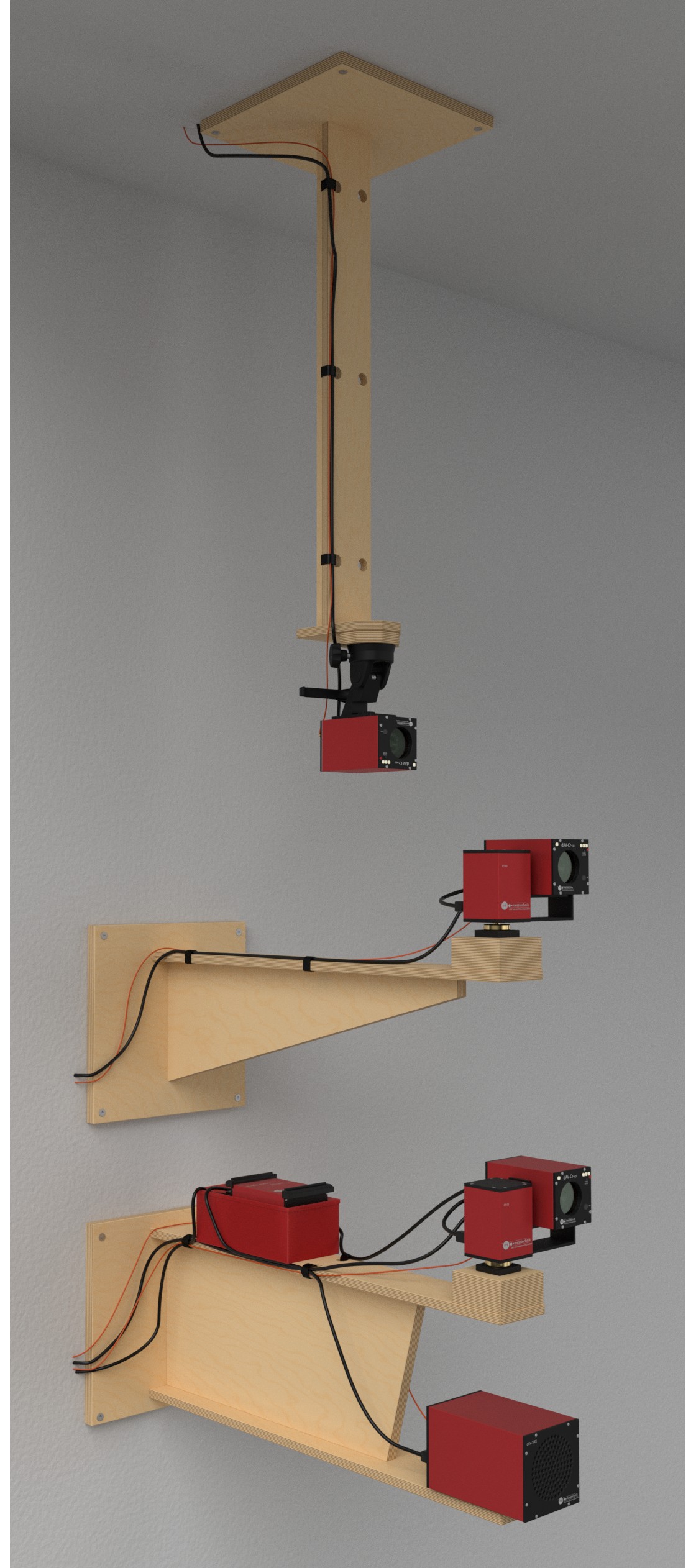

Wall Mounts Ceiling Mount	Wooden camera mount for absorbers up to 20" (for longer absorbers, we will customize to your needs) total length approx: 50, 70, 90 cm (or other) customized for PT-02 / dAV-Cr-xD solution to be mounted at the chamber wall. If drill holes and mounting plate size are known, we can adapt to these values (standard: 20 x 20 cm) velcro tape for fixing the shielded power supply is included if other lengths are requested, please let us know. 1x PT-0x option -quick release mk quick release for one hand use of PT-03/02 3/8 thread integrated: use an adapter if a 1/4" thread is needed! 1x Hook-and-loop fastener 480 mm Hook-and-loop fastener, belt with buckle (plastic), e.g. for battery pack holders (BP holder) width: 25 mm, length (tip to tip): 480 mm

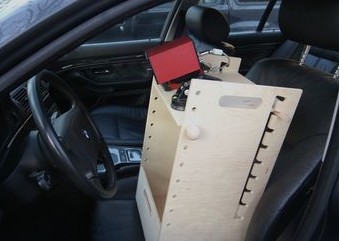

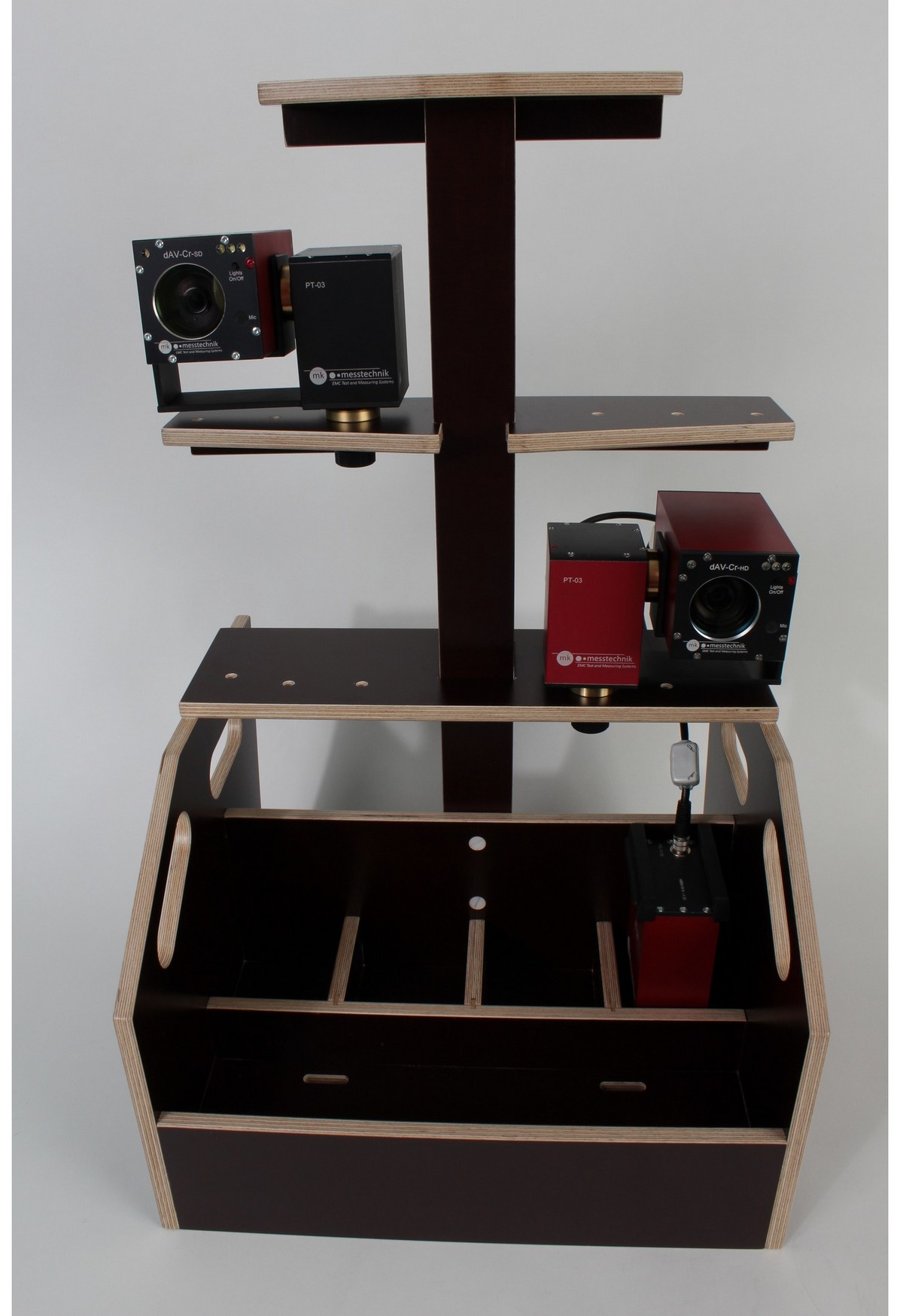

Car Seat Mounts	WCHM wooden camera head rest mount,  WCSM wooden camera steering mount,  WCSBx wooden camera seatbox
dAV-Rr-HD TT	Table Top receiver for high resolution cameras ,one HD-channel dAV-Rr-HD-Ch HDMI preinstalled, can be equipped with max. 4 channels and various other options power supply upgraded depending on additional ordered options
