opto1394, Fiber-optic Link Firewire/IEEE 1394

opto1394 This system is used for the optical transmission of IEEE1394/Firewire-signals and can transmit data rates of up to 400 Mbit/s (800 Mbit/s at 1394b). The transmitter system consists of two similar transceivers supplied by batteries and a duplex-62,5/125µm-multimode optical cable. Due to its insensitivity against strong electromagnetic fields, the opto1394 is fit for tests of electromagnetic compatibility in EMC-test chambers, TEM-cells, and striplines. The system can also be used for the fail-proof transmission of signals across long distances.

PARTNER:

MARKETS:

TEST STANDARDS:

Data Sheet

SPECIFICATIONS

opto1394 IEEE1394/Firewire signals

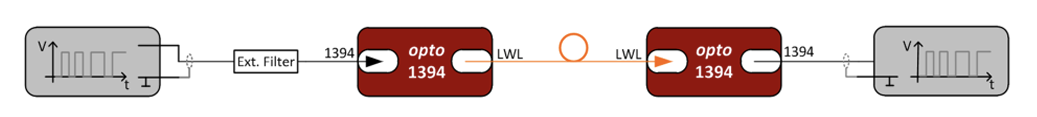

The opto1394 system can be used for the optical transmission of IEEE1394/Firewiresignals at transmission rates of up to 400Mbit/s (800Mbit/s at 1394b). It consists of two identical battery-supplied transceivers connected to each other with an optical fiber. With the optical transmission and the shielded case, the system is well equipped for EMI and EME tests.

   Go to our quick guide for all mk messtechnik fiberoptic links



Technical data

  • Channels: 1 optical channel
  • Connectors: IEEE1394 (different types)
  • Data rate: max. 400Mbit/s (800Mbit/s available on request)
  • Power supply: 5 NiMH cells with 4 Ah; >15h; five-poled charge plug
  • Case dimensions:
    • 136mm x 86mm x 65mm
    • aluminum case with rubber protectors
  • Weight: approx. 800g
  • Misc.: optional external battery pack/supply available
  • Optical fiber
    • Connector / Type: FSMA / multimode fiber 62,5/125µm
