optoLAN 100Base-T1 Max Optical Link for Automotive Ethernet

Optical link for high speed Ethernet (LAN) signals with up to 100 Mbit/s (100BaseTx)
Device for inside the ALC EMC ruggedized with HSD connector (use adapter cable!)
Compatible to automotive Ethernet transmitters optoLAN-BCM89810+89811, optoLAN-TJA1100-MAX and others (ask for details)

Key Features:

1. Optimized for EMC Testing:

   • Fully compatible with automotive Ethernet transmitters optoLAN-BCM89810+89811, optoLAN-TJA1100-MAX and others (ask for details).
   • Designed to provide reliable performance in electromagnetic compatibility (EMC) testing scenarios.

2. High-Quality Connector:

   • Equipped with a 4-pole Rosenberger HSD connector, minimizing emissions from the optical link.

3. Rugged and Reliable Design:

   • Features a robust shielded case to protect against interference.
   • Optical transmission ensures interference-free and precise data communication.

Applications:
The optoLAN 100Base-T1 Max system is a versatile and dependable solution for EMC testing in automotive, industrial, and other high-performance applications requiring robust and interference-free Ethernet communication.

With its high-quality construction the optoLAN system delivers exceptional performance and reliability in EMI and EME testing environments.

   Go to our quick guide for all mk messtechnik fiberoptic links

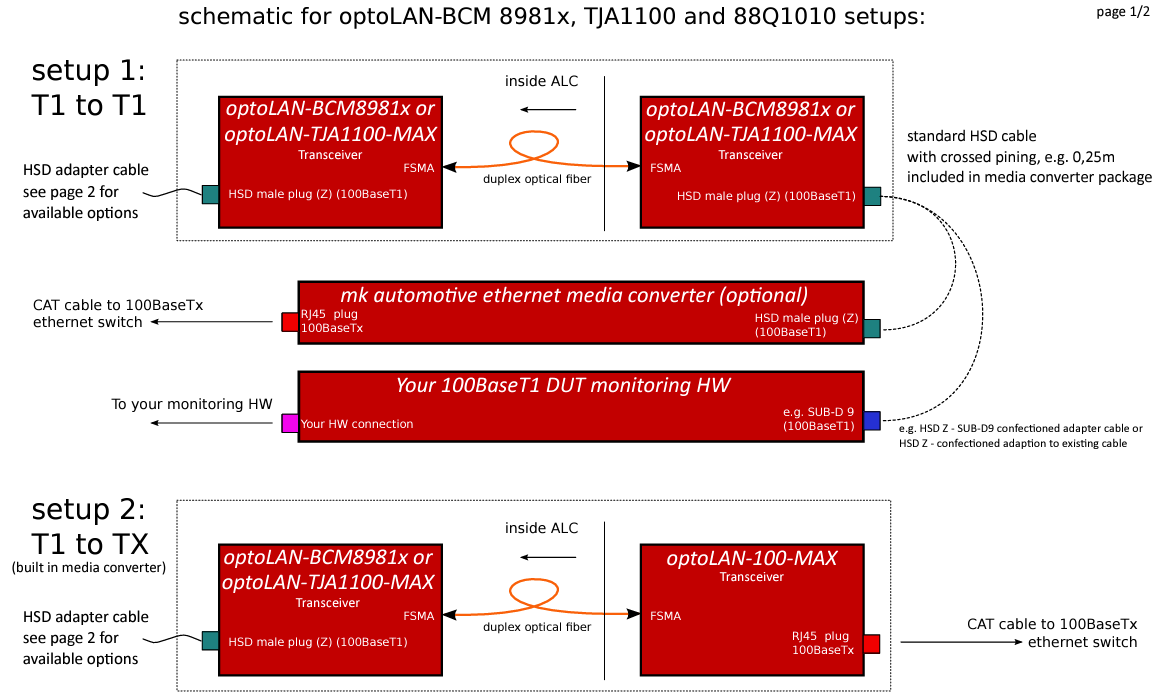

A Quoted kit will consist of the following configuration:

• optical link for high speed Ethernet (LAN) signals with up to 100 Mbit/s (100BaseTx)
• device for inside the ALC EMC ruggedized with HSD connector (use adapter cable!)
• compatible to automotive Ethernet transmitters optoLAN-BCM89810+89811, optoLAN-TJA1100-MAX and others (ask for details)

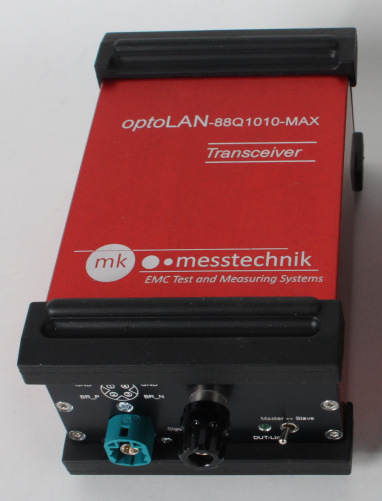

2x optoLAN 100Base-TX KSZ8041 Transceiver HSD

• optical transceiver with emc improved 100BaseTx outlet (to be used inside ALC)
• to directly connect to a DUT (use adapter cable)
• LAN-interface: max. 100 Mbit/s (100BaseTx); 10BaseTx not supported
• Ethernet connector: HSD
• pinout:
  • Pin1: TX_P
  • Pin2: RX_P
  • Pin3: TX_N
  • Pin4: RX_N
• optical connector: 2x FSMA
• shielded metal housing with integrated NiMH batteries, 5-pole female charge connector, prepared for external supply
• Optional available external power supplies - prices on request:
  • BP60-5f (4 Ah shielded battery pack to power optical device inside ALC) OR
  • BP60-5f/10Ah (10 Ah shielded battery pack to power optical device inside ALC)
  • SC-30-5m5m (shielded connection cable)
  • PS75-5m (standard non-shielded wall plug power supply to be used outside ALC)

1x LWL-2-20m-[FSMA]-OM1_625-[FSMA]

• duplex optical fiber, cable type: OM1, multimode, 62,5/125 μm
• connector side 1: 2x FSMA male (metal), connector side 2: 2x FSMA male (metal)
• total length: 20 m

2x CH-1-5m standard plug-in charger

• number of cells: 4 .. 10 NiMH/NiCd cells up to 5 Ah
• AC-input: 100-240 V, charge current: 600-800 mA, charge connector: 5 pole male
• ***AC-plug: Type A (US), others on request
• NEW!!! Push pull option for devices (PP12)
  • optional push pull 12 mm power connector for devices
    • includes:
    • 12 mm push pull connector devices (all devices per set)
    • 12 mm push pull connector for chargers (all chargers or power supplies per set)

 Adapter Cables All will be Quote only ones you need can be select

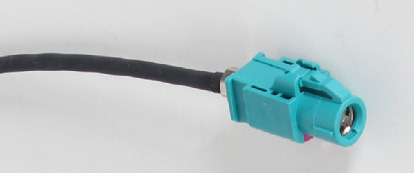

1x STPC-200cm-[HSD-Z_female]-DACAR647-4-[open]

• shielded twisted pair adapter cable for our optoLAN 100BaseT1 and 1000BaseT1
• interfaces to connect to your DUT
• This adapter cable is ONLY meant for lab use
• cable type: Leoni DACAR 647-4
  • connector side 1: HSD Z female
  • connector side 2: open
• total length: 200cm
  • HSD => open end
  • HSD 1 (BR_P) => open (white)
  • HSD 2 => NC
  • HSD 3 (BR_N) => open (green)
  • HSD 4 => NC
  • shield
• The strain relief is not the same grade as an original cable; you should NOT pull at the cable but at the crimped plug!
  other lengths and cables on request

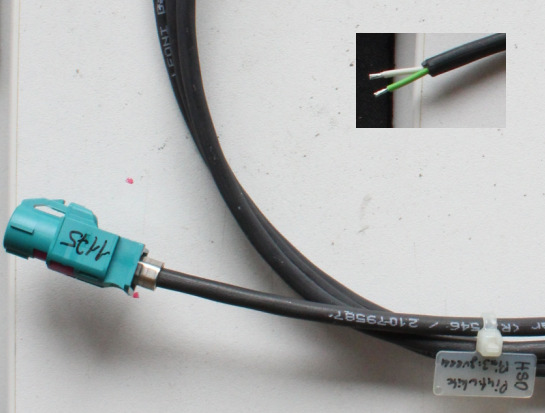

1x UTPC-200cm-[HSD-Z_female]-Krocar64996795-[open]

• customized unshielded twisted pair adapter cable for our optoLAN 100BaseT1 and 1000BaseT1 interfaces
• This adapter cable is ONLY meant for lab use
• cable type: Kromberg & Schubert FLKCuMgU9Y-9Y (KROCAR 64996795)
  • connector side 1: HSD Z female
  • connector side 2: opentotal
• length: 200 cm
  • HSD => open end
  • HSD 1 (BR_P) => open (white)
  • HSD 2 => NC
  • HSD 3 (BR_N) => open (green)
  • HSD 4 => NC
• The strain relief is not the same grade as an original cable; you should NOT pull at the cable but at the crimped plug!
• other lengths and cables on request

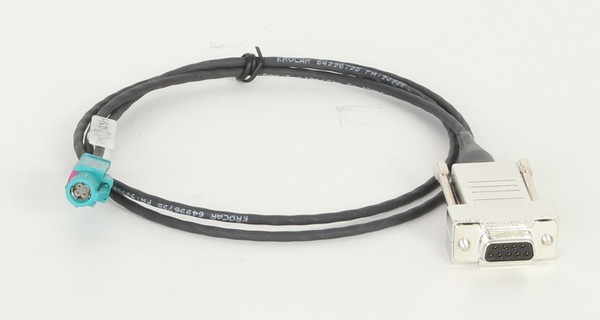

1x UTPC-50cm-[HSD-Z_female]-Krocar64996795-[SUB-D9_female]

• customized unshielded twisted pair adapter cable for our optoLAN 100BaseT1 and 1000BaseT1 interfaces
• This adapter cable is ONLY meant for lab (control room) use
• cable type: Kromberg & Schubert FLKCuMgU9Y-9Y (KROCAR 64996795)
  • connector side 1: HSD Z female
  • connector side 2: SUB-D9 female (metal)
• total length: 50 cm
  • standard pinout compatible e.g. with Vector VN5640 (channel 1):
  • HSD => SUB-D9
  • HSD 1 (BR_P) => SUB-D9f Pin 4
  • HSD 2 => NC
  • HSD 3 (BR_N) => SUB-D9f Pin 5
  • HSD 4 => NC
• The strain relief is not the same grade as an original cable; you should NOT pull at the cable but at the crimped plug!
• other lengths and cables on request

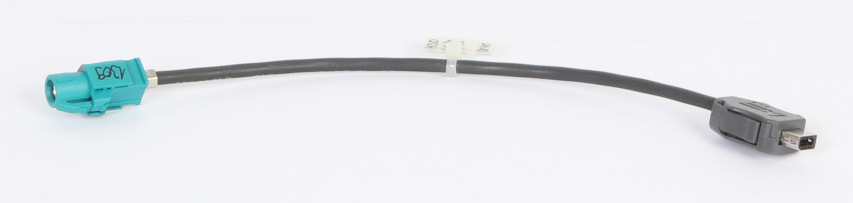

1x UTPC_VN5xxx-50cm-[HSD-Z_female]-Krocar64996795-[ix40_male]

• customized unshielded twisted pair adapter cable for our optoLAN 100BaseT1 and 1000BaseT1 interfaces
• This adapter cable is ONLY meant for lab (control room) use
• cable type: Kromberg & Schubert FLKCuMgU9Y-9Y (KROCAR 64996795)
  • connector side 1: HSD-Z female
  • connector side 2: ix40 (male)
• total length: 50cm
• pinout compatible e.g. with Vector VN5640, VN5650 (ix40 channel 1):
  • HSD => ix40
  • HSD 1 (BR_P) => 6
  • HSD 2 => NC
  • HSD 3 (BR_N)=> 7
  • HSD 4 => NC
• The strain relief is not the same grade as an original cable; you should NOT pull at the cable but at the crimped plug!
• other lengths and cables on request
  => please verify pinout!
