optoCAN-LS, Fiber-optic, Automotive Link for CAN Signals, 125 kbit/s

The optoCAN-LS system is a reliable solution for bidirectional optical transmission of CAN signals, supporting data rates of up to 125kbit/s. Designed to excel in challenging EMI and EME test environments, this system features optical signal transmission and a durable shielded enclosure, ensuring robust performance and signal integrity.

Key Features and Benefits

1. High-Performance Transmission:

   • Enables optical transmission of CAN signals with rates up to 125kbit/s.
   • Ideal for applications requiring minimal interference and precise data handling.

2. Portable and Flexible Design:

   • Comprised of two identical, battery-powered transceivers connected via optical fiber.
   • Portable and easy to deploy for versatile testing scenarios.

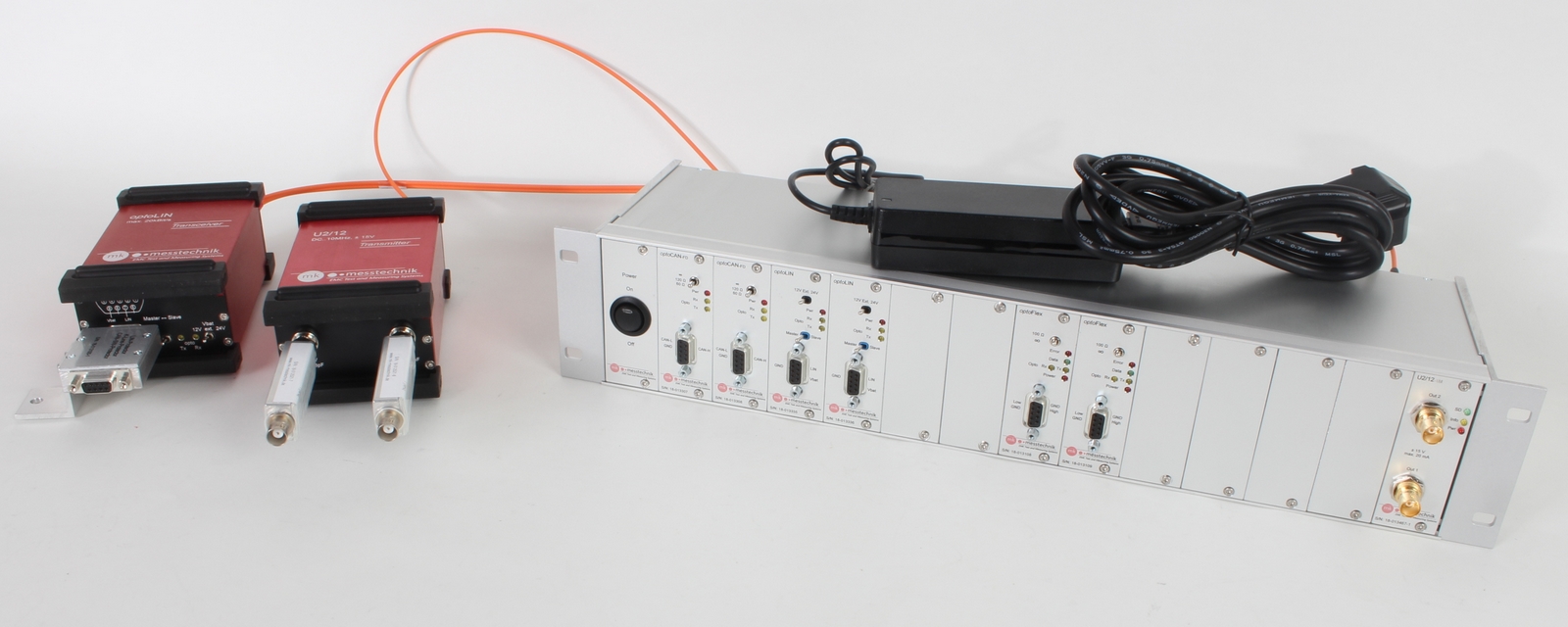

3. Optional 19" Rack Integration:

   • One transceiver can be optionally integrated into a 19" rack housing.
   • Ideal for permanent setups, reducing error sources, shortening setup time, and minimizing tabletop space usage.

4. Scalable Channel Capacity:

   • The 19" rack housing supports up to eight automotive communication links, including SENT, CAN, FlexRay, and more.
   • Channels can be added incrementally, offering flexibility for future expansion.

The optoCAN-LS system provides a robust, scalable, and efficient solution for precise CAN signal testing, making it an essential tool for EMI and EME testing environments.

   Go to our quick guide for all mk messtechnik fiberoptic links

A Quoted kit will consist of the following configuration:

2x optoCAN-LS Transceiver

• optical transceiver for CAN with Low-Speed-CAN (LS)
• CAN-interface: max. 125kbit/s (up to 20 m optical fiber)
• CAN-transceiver: TJA1054
• CAN-connector: SUB-D9
• optical connector: 2x FSMA
• integrated NiMH batteries: 5 cells, 6 V/4 Ah
• battery run time: >30 h
• charge connector: female 5 pole Binder 712 (prepared for external supply)
• shielded aluminum housing
   *Available option: 19" rack mount (for several automotive links in 2HU)
   *Standard fiber length 20 m, other length on request other chokes available on request
• Optional available external power supplies - prices on request:
  • BP60-5f (4 Ah shielded battery pack to power optical device inside ALC) OR
  • BP60-5f/10Ah (10 Ah shielded battery pack to power optical device inside ALC)
  • SC-30-5m5m (shielded connection cable)
  • PS75-5m (standard non-shielded wall plug power supply to be used outside ALC)

1x external CAN-LS protector

• to be used for EMS/EME-testing
• metal housing with connection plate enables GND connection if wanted/needed

1x LWL-2-20m-[FSMA]-OM1_625-[FSMA]

• duplex optical fiber, cable type: OM1, multimode, 62,5/125 μm
• connector side 1: 2x FSMA male (metal), connector side 2: 2x FSMA male (metal)
• total length: 20 m

2x CH-1-5m standard plug-in charger

• number of cells: 4 .. 10 NiMH/NiCd cells up to 5 Ah
• AC-input: 100-240 V, charge current: 600-800 mA, charge connector: 5 pole male
• ***AC-plug: Type A (US), others on request
• NEW!!! Push pull option for devices (PP12)
  • optional push pull 12 mm power connector for devices
    • includes:
    • 12 mm push pull connector devices (all devices per set)
    • 12 mm push pull connector for chargers (all chargers or power supplies per set)
