optoFlex, Fiber-optic, Automotive Link for Flexray-signals

This system is used for the optical transmission of Flexray-signals and allows the transmission in both directions with a sampling rate of 10 MBit/s. It consists of two identical transceivers, supplied by batteries, and a simplex-62,5/125µm-multimode optical cable (1-fiber-version available on demand).

MARKETS:

TEST STANDARDS:

Data Sheet

SPECIFICATIONS

optoFlex, Fiber-optic, Automotive Link for FlexRay signals

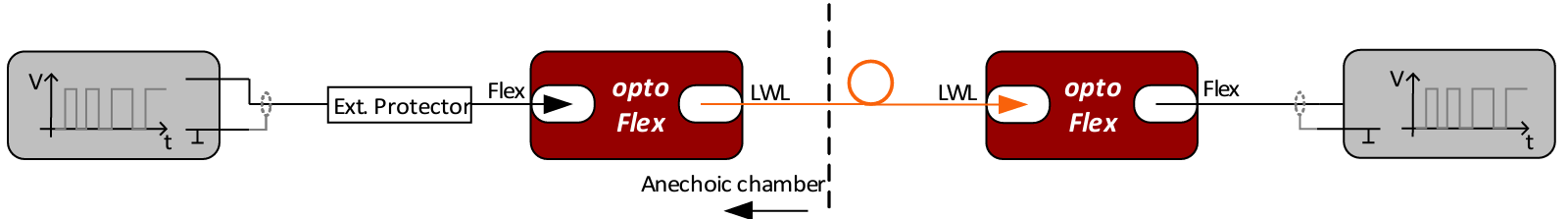

The optoFlex system is an advanced solution for the optical transmission of FlexRay signals, supporting data rates of up to 10 Mbit/s. Designed for demanding EMI and EME test environments, the system features two identical, battery-powered transceivers interconnected by an optical fiber. Its optical transmission capabilities and shielded aluminum case ensure robust performance and signal integrity in high-interference environments.

Key Features:

  • High-Speed Transmission:

    • Supports FlexRay signal transmission at rates up to 10 Mbit/s, delivering reliable performance for automotive and industrial applications.
  • Rugged Design:

    • Encased in a durable aluminum housing with rubber protectors for added durability.
    • Optional external protectors safeguard against ESD and high RF exposure.
  • Long Battery Life:

    • Powered by five NiMH cells with 4 Ah capacity, providing over 20 hours of operation.
    • Optional external battery packs or power supplies are available for extended usage.
  • Customizable Configurations:

    • Optional 19" rack mounting and ST optical fiber connectors to suit specific testing needs.
    • External termination options available for enhanced flexibility.

The optoFlex system is ideal for precise, interference-free FlexRay signal testing in automotive, aerospace, and other high-performance applications. Its robust design, high-speed capability, and customizable features make it a reliable solution for EMI and EME test environments.

   Go to our quick guide for all mk messtechnik fiberoptic links

A Quoted kit will consist of the following configuration:

optoFlex-NT

  • optical link for FlexRay-signals (bidirectional) with up to 10 Mbit/s on one duplex fiber
  • separate transmission of diverse signals (to avoid timing issues)

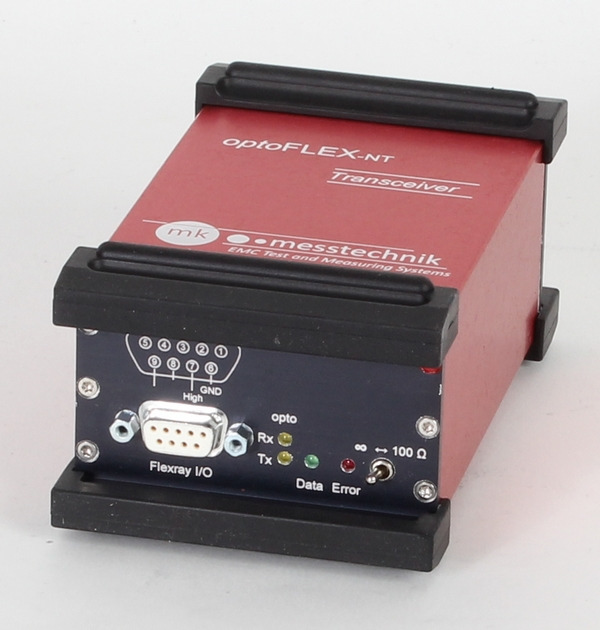

2x optoFlex-NT Transceiver (TJA1081GTS)

  • optical transceiver for FlexRay signals
  • FlexRay-interface: max. 10 Mbit/s
  • separate transmission of control signals
  • FlexRay-transceiver: TJA1081GTS
  • FlexRay choke: B82789C0104, 100uH
  • FlexRay-connectors: SUB-D9 female
  • optical connector: FSMA
  • shielded metal housing with integrated NiMH batteries, 5-pole female charge plug, documentation
  • available option: 19" rack mount (for up to 10 automotive links in 2HU)
  • Optional available external power supplies - prices on request:
    • BP60-5f (4 Ah shielded battery pack to power optical device inside ALC) OR
    • BP60-5f/10Ah (10 Ah shielded battery pack to power optical device inside ALC)
    • SC-30-5m5m (shielded connection cable)
    • PS75-5m (standard non-shielded wall plug power supply to be used outside ALC)

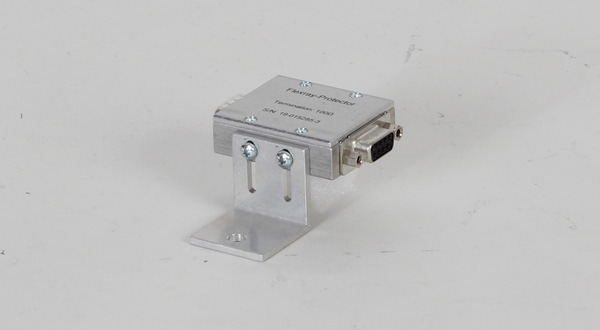

1x external Flexray-Protector termination 100 Ohm (metal)

  • to be used for EMS/EME-testing
  • metal housing with connection plate enables GND connection if wanted/needed

1x LWL-2-20m-[FSMA]-OM1_625-[FSMA]

  • duplex optical fiber, cable type: OM1, multimode, 62,5/125 μm
  • connector side 1: 2x FSMA male (metal), connector side 2: 2x FSMA male (metal)
  • total length: 20 m

2x CH-1-5m standard plug-in charger

  • number of cells: 4 .. 10 NiMH/NiCd cells up to 5 Ah
  • AC-input: 100-240 V, charge current: 600-800 mA, charge connector: 5 pole male
  • ***AC-plug: Type A (US), others on request
  • NEW!!! Push pull option for devices (PP12)
    • optional push pull 12 mm power connector for devices
      • includes:
      • 12 mm push pull connector devices (all devices per set)
      • 12 mm push pull connector for chargers (all chargers or power supplies per set)
