optoLAN 100/1000Base-T1 88Q2112 Optical Link for Automotive Ethernet

The optoLAN-Gb 88Q2112 system is a high-performance, bidirectional optical transmission device designed for automotive Ethernet 1000Base-T1 and 100Base-T1 signals. Engineered for precision and reliability, it is ideal for demanding EMI and EME testing applications in automotive EMC laboratories.

Key Features:

1. Versatile Configurations:

   • Supports two configurations:

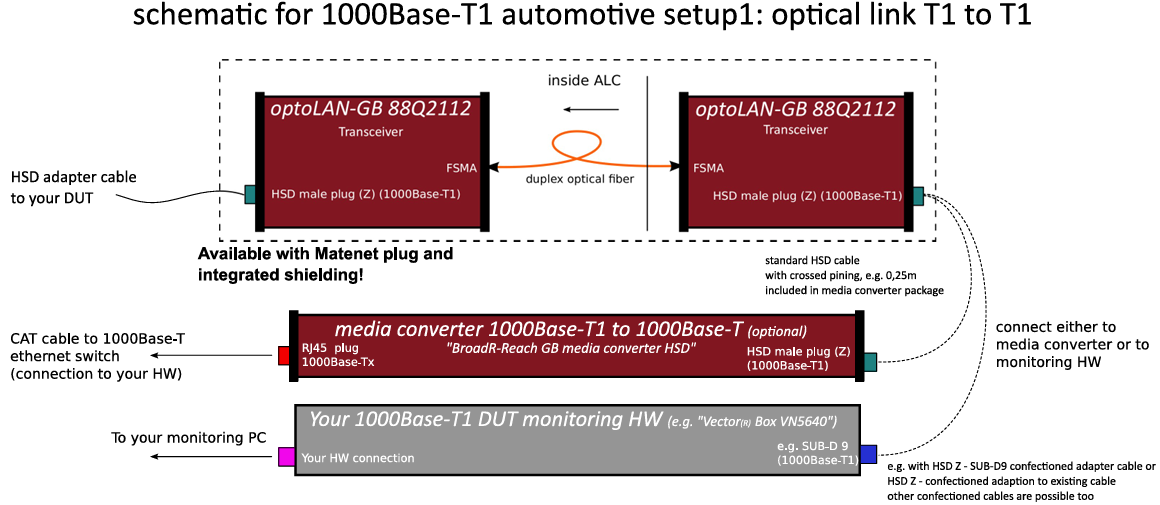

     • T1 to T1 (Standard): Standard bidirectional transmission.
     • T1 to T (Media Converter): Includes an integrated media converter (refer to the separate setup document for details).

2. High-Quality Connectors:

   • Equipped with Rosenberger HSD (Z-coded) connectors to ensure secure, high-performance connectivity.

3. Robust and Reliable Design:

   • Features a durable shielded case for optimal protection against electromagnetic interference.
   • Optical transmission ensures interference-free and precise signal integrity.

4. Proven Performance:

   • Extensively tested and validated in automotive EMC laboratories, guaranteeing dependable operation under rigorous conditions.

Applications:
The optoLAN-Gb 88Q2112 system is tailored for automotive Ethernet testing environments, making it a perfect choice for EMI/EME testing of 1000Base-T1 and 100Base-T1 signals.

Why Choose optoLAN-Gb 88Q2112?
With its robust construction, flexible configurations, and proven reliability in automotive EMC labs, the optoLAN-Gb 88Q2112 system delivers exceptional performance and precision for modern automotive Ethernet testing.

   Go to our quick guide for all mk messtechnik fiberoptic links

A Quoted kit will consist of the following configuration:

• optical link for 1GBase-T1 automotive ethernet signals with Marvell 88Q2112 chipse

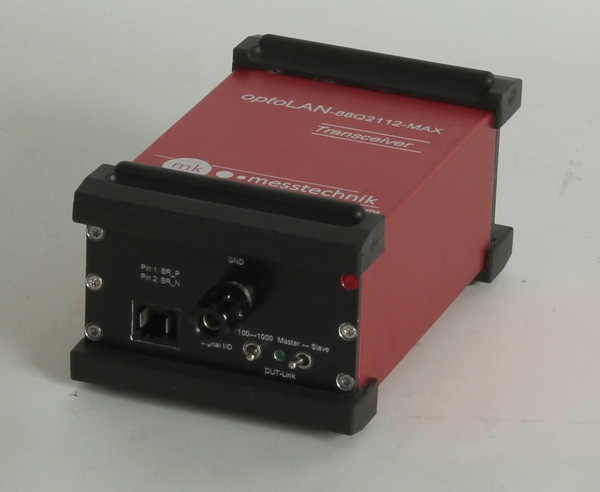

2x optoLAN 100/1000Base-T1 88Q2112 Transceiver

• optical transceiver for Gbit automotive Ethernet, Marvell 88Q2112 integrated
• Modes: 100BaseT1 and 1000BaseT1, switchable (optimized for 1000BaseT1)
• integrated SW command switch between legacy mode <> IEEE mode
• CM choke: ACT1210G-800
  • others chokes available on request, might need to be supplied by customer
• 88Q2112 A2 implemented
• BRReach connector: Rosenberger HSD => use adapter cable
• optical connector: 2x FSMA
• integrated NiMH batteries: 5 cells, 6 V/4 Ah
• battery run time: >12 h
• charge connector: female 5 pole Binder 712 (prepared for external supply)
• shielded aluminum housing


• Optional available external power supplies - prices on request:
  • BP60-5f (4 Ah shielded battery pack to power optical device inside ALC) OR
  • BP60-5f/10Ah (10 Ah shielded battery pack to power optical device inside ALC)
  • SC-30-5m5m (shielded connection cable)
  • PS75-5m (standard non-shielded wall plug power supply to be used outside ALC)

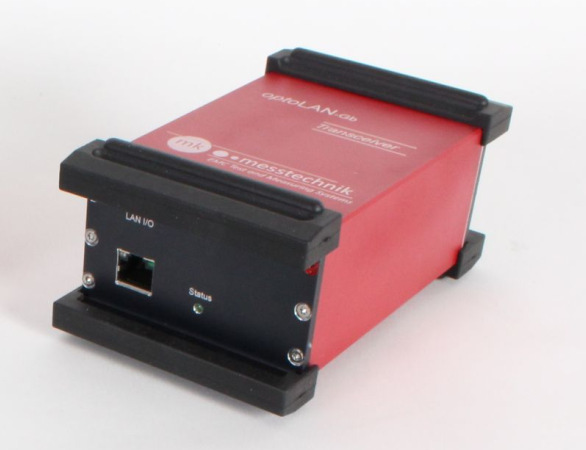

Optional replace one transceiver with optoLAN 100/1000Base-TX Transceiver RJ4

• optical transceiver with standard 100/1000Base-TX outlet to optically
• connect to optoLAN 100/1000Base-TX -M12 as well as automotive
• Ethernet optoLAN 100/1000Base-T1 transceivers
• Chipset: BCM54616 or DP83869 depending on availability
• LAN-interface: max. 1 Gbit/s (100Base-TX and 1000Base-T
• automatically detected)
• LAN-connector: RJ45
• optical connector: 2x FSMA
• no integrated batteries (powered with charger, not in EMI chamber)
• DC power connector: female 5 pole Binder 712
• shielded aluminum housing
• The power push button will still be implemented to be able to connect external battery packs.

1x LWL-2-20m-[FSMA]-OM1_625-[FSMA]

• duplex optical fiber, cable type: OM1, multimode, 62,5/125 μm
• connector side 1: 2x FSMA male (metal), connector side 2: 2x FSMA male (metal)
• total length: 20 m

2x CH-1-5m standard plug-in charger

• number of cells: 4 .. 10 NiMH/NiCd cells up to 5 Ah
• AC-input: 100-240 V, charge current: 600-800 mA, charge connector: 5 pole male
• ***AC-plug: Type A (US), others on request
• NEW!!! Push pull option for devices (PP12)
  • optional push pull 12 mm power connector for devices
    • includes:
    • 12 mm push pull connector devices (all devices per set)
    • 12 mm push pull connector for chargers (all chargers or power supplies per set)

Adapter Cables All will be Quote only ones you need can be select

1x STPC-200cm-[HSD-Z_female]-DACAR647-4-[open]

• shielded twisted pair adapter cable for our optoLAN 100BaseT1 and 1000BaseT1
• interfaces to connect to your DUT
• This adapter cable is ONLY meant for lab use
• cable type: Leoni DACAR 647-4
  • connector side 1: HSD Z female
  • connector side 2: open
• total length: 200cm
  • HSD => open end
  • HSD 1 (BR_P) => open (white)
  • HSD 2 => NC
  • HSD 3 (BR_N) => open (green)
  • HSD 4 => NC
  • shield
• The strain relief is not the same grade as an original cable; you should NOT pull at the cable but at the crimped plug!
  other lengths and cables on request

1x UTPC-200cm-[HSD-Z_female]-Krocar64996795-[open]

• customized unshielded twisted pair adapter cable for our optoLAN 100BaseT1 and 1000BaseT1 interfaces
• This adapter cable is ONLY meant for lab use
• cable type: Kromberg & Schubert FLKCuMgU9Y-9Y (KROCAR 64996795)
  • connector side 1: HSD Z female
  • connector side 2: opentotal
• length: 200 cm
  • HSD => open end
  • HSD 1 (BR_P) => open (white)
  • HSD 2 => NC
  • HSD 3 (BR_N) => open (green)
  • HSD 4 => NC
• The strain relief is not the same grade as an original cable; you should NOT pull at the cable but at the crimped plug!
• other lengths and cables on request

1x UTPC-50cm-[HSD-Z_female]-Krocar64996795-[SUB-D9_female]

• customized unshielded twisted pair adapter cable for our optoLAN 100BaseT1 and 1000BaseT1 interfaces
• This adapter cable is ONLY meant for lab (control room) use
• cable type: Kromberg & Schubert FLKCuMgU9Y-9Y (KROCAR 64996795)
  • connector side 1: HSD Z female
  • connector side 2: SUB-D9 female (metal)
• total length: 50 cm
  • standard pinout compatible e.g. with Vector VN5640 (channel 1):
  • HSD => SUB-D9
  • HSD 1 (BR_P) => SUB-D9f Pin 4
  • HSD 2 => NC
  • HSD 3 (BR_N) => SUB-D9f Pin 5
  • HSD 4 => NC
• The strain relief is not the same grade as an original cable; you should NOT pull at the cable but at the crimped plug!
• other lengths and cables on request

1x UTPC_VN5xxx-50cm-[HSD-Z_female]-Krocar64996795-[ix40_male]

• customized unshielded twisted pair adapter cable for our optoLAN 100BaseT1 and 1000BaseT1 interfaces
• This adapter cable is ONLY meant for lab (control room) use
• cable type: Kromberg & Schubert FLKCuMgU9Y-9Y (KROCAR 64996795)
  • connector side 1: HSD-Z female
  • connector side 2: ix40 (male)
• total length: 50cm
• pinout compatible e.g. with Vector VN5640, VN5650 (ix40 channel 1):
  • HSD => ix40
  • HSD 1 (BR_P) => 6
  • HSD 2 => NC
  • HSD 3 (BR_N)=> 7
  • HSD 4 => NC
• The strain relief is not the same grade as an original cable; you should NOT pull at the cable but at the crimped plug!
• other lengths and cables on request
  => please verify pinout!
