optoLAN-100 MBit/s, Fiber-optic Link Ethernet signals

The optoLAN-100-MAX system can be used for the optical transmission of Ethernet (LAN-) signals with a data rate of up to 100Mbit/s (100BaseTx). The two identical transceivers are supplied by internal batteries and connected with an optical fiber. With the optical transmission and the shielded case, the system is well equipped for EMI and EME tests. The device is not downward compatible to 10BaseT. If you need this option you can get the optoLAN-Gb.

PARTNER:

MARKETS:

TEST STANDARDS:

Data Sheet

Manual

SPECIFICATIONS

optoLAN 100 MBit/s, Fiber-optic Link Ethernet signals

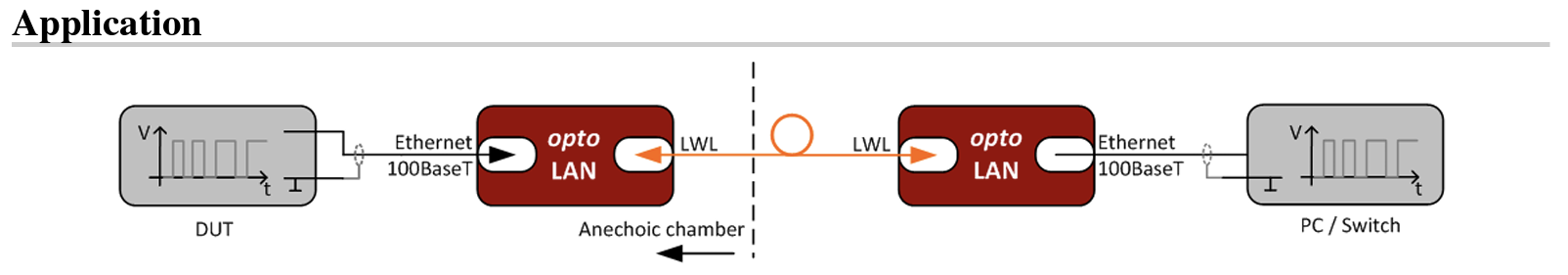

The optoLAN 100 system can be used for the optical transmission of Ethernet (LAN-) signals with a data rate of up to 100Mbit/s (100BaseT). The two identical transceivers are supplied by internal batteries and connected with an optical fiber. With the optical transmission and the shielded case, the system is well equipped for EMI and EME tests. The device is not downward compatible to 10BaseT. If you need this option, you can get the optoLAN-Gb. Due to its insensitivity to strong electromagnetic fields above the specified transmission range, the system is fit for tests of electromagnetic compatibility in EMC-test chambers, TEM-cells, and striplines.

   Go to our quick guide for all mk messtechnik fiberoptic links



Technical data

  • Channels: 1
  • Connectors:  RJ45 or custom made
  • Data rate:  up to 100Mbit/s (100BaseT)
  • Power supply:  4 NiMH cells with 4 Ah; >10h; 5-poled charging connector
  • Case dimensions:
    • Approx. 135mm x 86mm x 65mm
    • Aluminum case with ruggedized protectors
  • Weight: approx. 800g
  • misc:
    • External battery packs/power supply available on demand
    • 19“ case and ST connectors for the optical fibers available on demand
  • Optical fiber
    • Connector / type: FSMA / Duplex-Multimode LWL 62,5/125µm
