optoUSB3.0, Fiber-optic Link for USB 3.0

The optoUSB-3.0 system can be used for the optical transmission of USB signals up to a data rate of 5Gbit/s according to the USB3.0 standard. It can be used to transmit USB signals over long distances (up to 50m) or to handle ground potential problems. With the optical transmission and the shielded case, the system is well equipped for EMI and EME tests.

  • optoUSB3.0 USB hub with 2 USB ports (not as EMI robust as 2.0-RBRIR version)
  • optoUSB2.0 USB hub with 4 USB ports (not as EMI robust as -RBRIR version)
  • optoUSB2.0-RBDIR uses a Rosenberger connector which has been proven to be more EMI robust)

MARKETS:

TEST STANDARDS:

optoUSB3.0 DataSheet

optoUSB3.0 Manual

SPECIFICATIONS

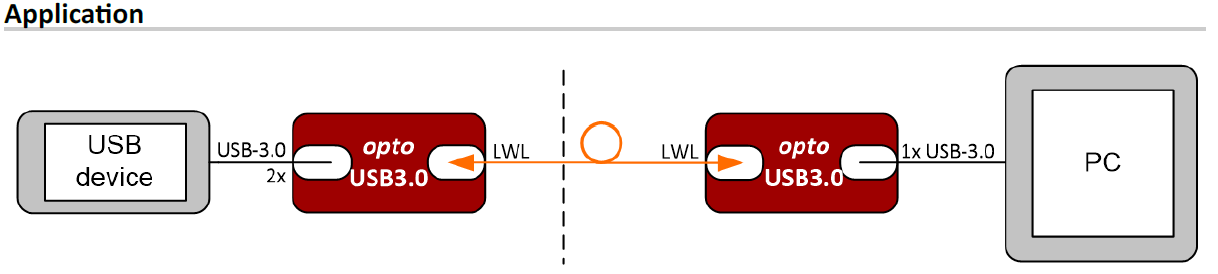

optoUSB 3.0, Fiber-optic Link for USB 3.0


The digital optical system optoUSB-3.0 can be used to optically transmit USB signals with a data rate of up to 5 Gbit/s correlating to the USB 3.0 standard. Because of the optical transmission, the system is very robust against EMS (electromagnetic susceptibility). It can withstand high electric and magnetic fields as they appear in EMC tests. The system also is optimized for low noise emission.

Please note that the USB-3.0 is NOT downwards compatible. I.e. there is no transmission with USB2.0 devices.

For the HUB side transceiver, power is supplied by internal NiMH batteries, which make the system easy to use.
The optoUSB-3.0 is prepared for the use of external batteries (with the optional battery pack BP84).
For the PC side transceiver, power is supplied via the USB cable connected to a PC.

  Go to our quick guide for all mk messtechnik fiberoptic links

A Quoted kit will consist of the following configuration:

Optical link for the transmission of USB3.0 signals (max. 5 Gbit/s)
(not downward compatible with USB2.0)
Note: Standard USB connectors (consumer electronic) do not have automotive (rf performance) quality
1x optoUSB3.0 Transceiver-Hub

  • USB-connector (Hub): 2x USB 3.0 Type A
  • optical connector: FSMA
  • shielded metal housing with integrated NiMH batteries, 5-pole female charge plug, documentation

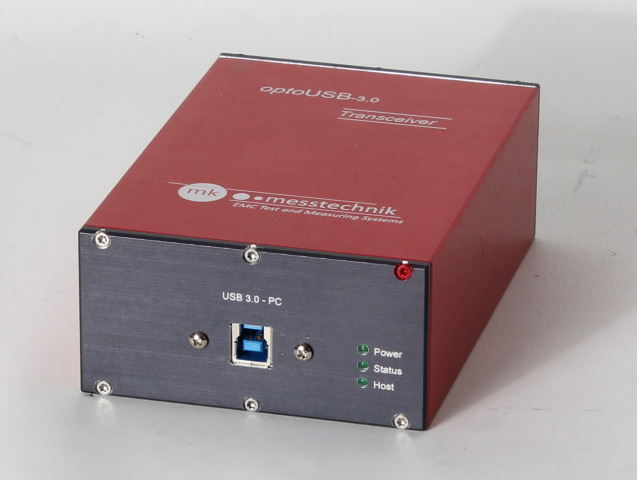

1x optoUSB3.0 Transceiver-PC

  • USB-connector (to PC): 1 x USB 3.0 Type B
  • optical connector: FSMA
  • shielded metal housing, PC power supplied

1x C-USB3.0 A-B

  • Standard USB cable, length approx. 1.5 m
  • Connectors: type-A - type-B

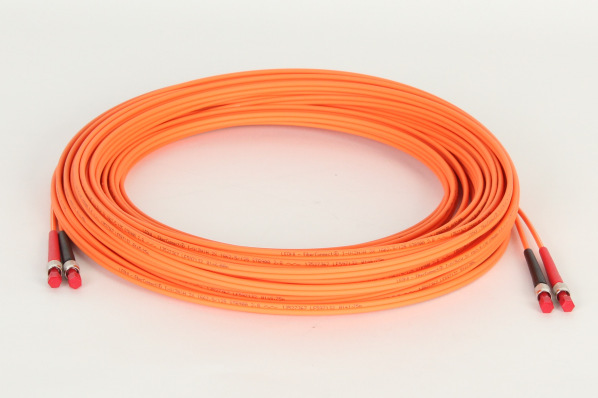

1x LWL-2-20m-[FSMA]-OM1_625-[FSMA]

  • duplex optical fiber, cable type: OM1, multimode, 62,5/125 μm
  • connector side 1: 2x FSMA male (metal), connector side 2: 2x FSMA male (metal)
  • total length: 20 m

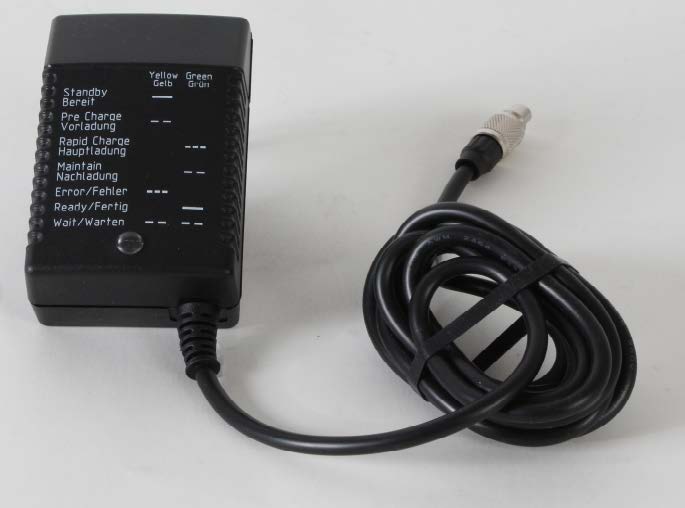

2x CH-1-5m standard plug-in charger

  • number of cells: 4 .. 10 NiMH/NiCd cells up to 5 Ah
  • AC-input: 100-240 V, charge current: 600-800 mA, charge connector: 5 pole male
  • ***AC-plug: Type A (US), others on request
