optoCharger, Fiber-optic Link EV Charger COMM: CCS, CHAdeMO, GB/T

optoCharger, Fiber-optic Link EV Charger COMM: CCS, CHAdeMO, GB/T

Bidirectional Optical Isolation: 20 m multimode fiber link (62.5/125 µm) for galvanic isolation of Control Pilot, CAN, and auxiliary signals.
Long?Life Battery Power: Internal 8.4 V, 4 Ah NiMH pack delivers up to 10 hours of continuous operation.
Robust Construction: Anodized aluminum housing with rubber bumpers and grounding lug, rated for CISPR 25 Class 5 environments.
Versatile Signal Interfaces: BNC connector for Control Pilot plus D SUB 15 female for CAN, temperature sensors, connector lock control, etc.
Wide Protocol Support: Compatible with CCS, CHAdeMO, and GB/T charging standards for comprehensive EVSE/EV EMC testing.
Compact & Portable: 140 × 86 × 65 mm enclosure weighing ≈760 g—ideal for on site and laboratory test setups.

PARTNER:

MK-MESSTECHNIK GMBH

MARKETS:

TEST STANDARDS:

Data Sheet

SPECIFICATIONS

optoCharger™ Bidirectional Optical Transmission System for CCS, CHAdeMO, GB/T

Overview

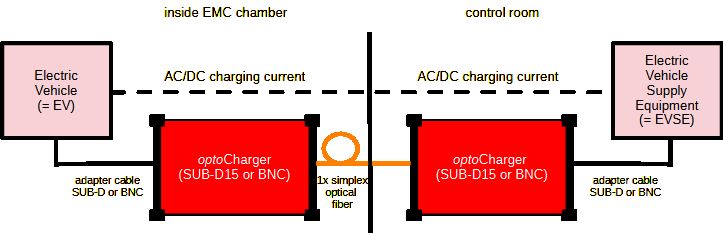

The optoCharger™ is a battery powered, bidirectional optical interface designed to isolate and transmit communication signals between an Electric Vehicle Supply Equipment (EVSE) charging station and an Electric Vehicle (EV) during EMC/EMI testing. Its fiber optic link and shielded aluminum enclosure make it ideally suited for high noise environments—compliant with CISPR 25 Class 5 requirements—ensuring measurement integrity and operator safety.

Key Features

Bi Directional Optical Link
Transmits Control Pilot (PLC), CAN, low level signals, and auxiliary lines (e.g. temperature monitoring, connector lock) across a 20 m multimode fiber.
Integrated Battery Power
Seven NiMH cells (8.4 V, 4 Ah) deliver approximately 10 hours of run time; extendable via external battery pack.
Rugged, Shielded Housing
Anodized aluminum enclosure with rubber bumpers, grounding lug, and stacking capability (140 × 86 × 65 mm).
Universal Charging Standards
Supports CCS, CHAdeMO, and GB/T protocols for broad compatibility.
Simple Connectivity
BNC connector for Control Pilot, D SUB 15 female for all other signal lines, plus optional FSMA optical connector.

Applications

Automotive EMC immunity and emissions testing (e.g. CISPR 25 Class 5)
On site and laboratory validation of EV/EVSE communication interfaces
Any test scenario requiring galvanic isolation and high?noise immunity

Technical Specifications

Parameter	Specification
Data Interfaces	Control Pilot (PLC), CAN, low level I/Os, additional signals (temperature, lock status)
Connectors	Transmitter/Receiver: BNC (Control Pilot), D SUB 15 female (others)
Optical Fiber	20 m simplex multimode (62.5/125 µm OM1), FSMA connector
Power Source	Internal NiMH battery pack (8.4 V, 4 Ah, ~10 h runtime); external battery pack optional
Charging Connector	Binder 712 or PP12 push pull (9 mm PP9 available on request)
Operating Temperature	0 °C to +40 °C
Housing	Anodized aluminum with rubber protectors; 4 mm ground lug
Dimensions	140 × 86 × 65 mm
Weight	≈ 760 g
Compliance	CISPR 25 Class 5, automotive EMC test standards

Scope of Delivery

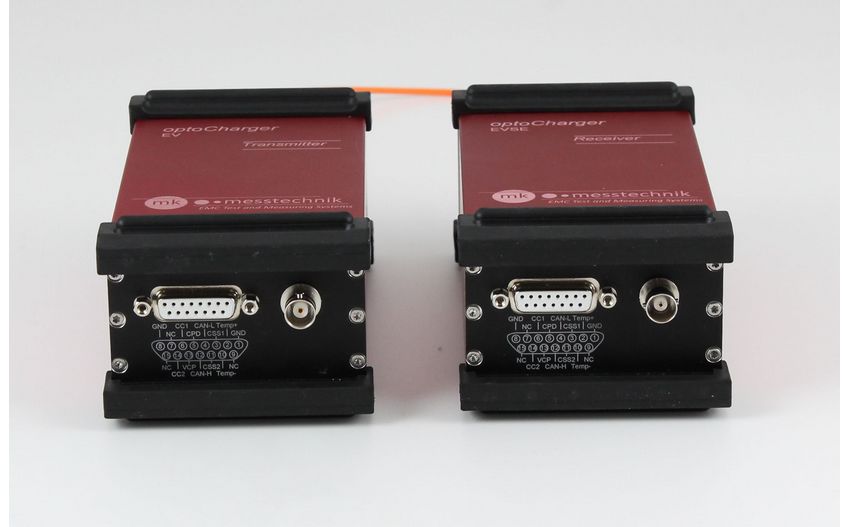

1 × optoCharger™ Transmitter (EV side)
1 × optoCharger™ Receiver (EVSE side)
1 × 20 m simplex multimode optical fiber
2 × Battery chargers (US/AU/EU/UK plug options)

Optional Accessories

Optical Fiber Variants: FSMA, ST, FC, LC, E2000 (62.5/125 µm or 50 µm; lengths 0.5 m–100 m+)
Feedthrough Adapters: FSMA/FSMA, ST/FSMA, ST/ST, FC/FC
Optical Cleaning Kit & Protective Caps for connector maintenance
External Battery Pack (BP84): 4 Ah or 10 Ah capacity
Control?Room Power Supply (PS120): for continuous operation outside EMC chamber

What is in the kit

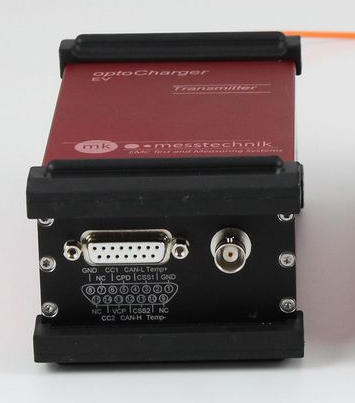

1x optoCharger™ Transmitter (EV side)

Transmitter/Receiver: BNC (Control Pilot), D SUB 15 female (others)
optical connector: FSMA
shielded metal housing with integrated NiMH batteries, 5-pole female charge plug, documentation

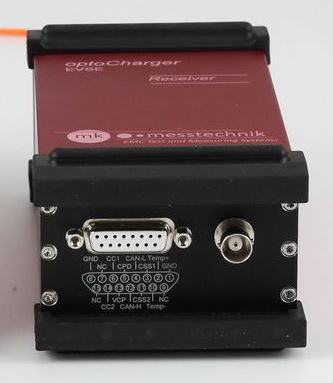

1x optoCharger™ Receiver (EVSE side)
