optoUSB 2.0-VA6K, Fiber-optic Link for USB 2.0

Successor to the optoUSB2.0-RBDIR

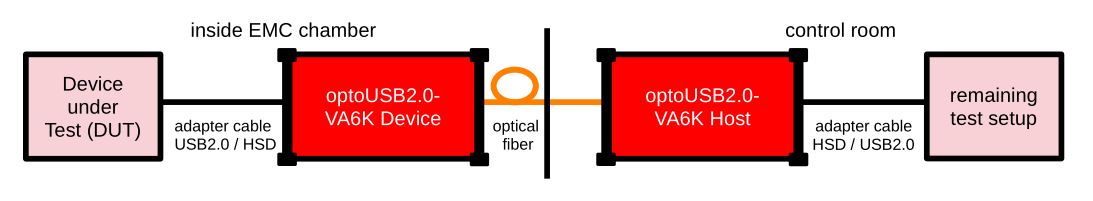

The optoUSB2.0-VA6K is a bidirectional fiber-optic USB 2.0 extension system designed specifically for EMC measurement environments. Based on the Valens VA6000 chipset, it transports USB 2.0 signals over duplex multimode fiber, eliminating copper between the EUT in the chamber and the control room.

By replacing the previous optoUSB2.0-RBDIR link, this new generation provides robust role-reversal capability (host/device side), improved handling in harsh EMC environments, and optimised RF behaviour via Rosenberger HSD connectivity and dedicated adapter cables. There is no radio or RF transmitter integrated; transmission is purely optical, minimising both emissions and susceptibility to electric, magnetic, and electromagnetic fields.

The system is ideal wherever reliable USB connectivity is required during EMC functional tests, without compromising the test setup or measurement accuracy.

Key Features (Short Form)

USB 2.0 up to 480 Mbps over full-duplex optical fiber
Bidirectional link with automatic host/device role-reversal
Fully optical transmission — no RF emissions, no ground loops
Rosenberger HSD interface with optional USB-A/B adapter cables
Long battery life with integrated 4 Ah NiMH (20+ hours typical)
Compact, rugged aluminum housing for chamber use

Technical Specifications

Category	Specification
USB Interface	USB 2.0 (High-Speed)
Data Rate	Up to 480 Mbps
Communication	Bidirectional, full-duplex over fiber
Chipset	Valens VA6000
USB Role Handling	Automatic host/device role-reversal
Device Signal I/O	Rosenberger HSD connector
Adapter Cable Options	HSD ↔ USB-A / USB-B / USB-A Female
Optical Connector	FSMA
Fiber Type	Duplex multimode 62.5/125 µm
Battery Type	Integrated 4 Ah NiMH, 10-cell pack
Typical Operating Time	~ 20 hours (no-load)
External Power Options	4 Ah or 10 Ah NiMH expansion packs
Charge Connector	Push-pull charging port
Housing Material	Aluminum with protective rubber sleeve
Dimensions	Approx. 136 × 86 × 85 mm
Weight	Approx. 1.25 kg per unit

Go to our quick guide for all mk messtechnik fiberoptic links

A Quoted kit will consist of the following configuration:

optical link for the transmission of USB2.0 signals (max. 480 Mbit/s) with EMC improved Rosenberger HSD connector NOT compatible with Apple car play

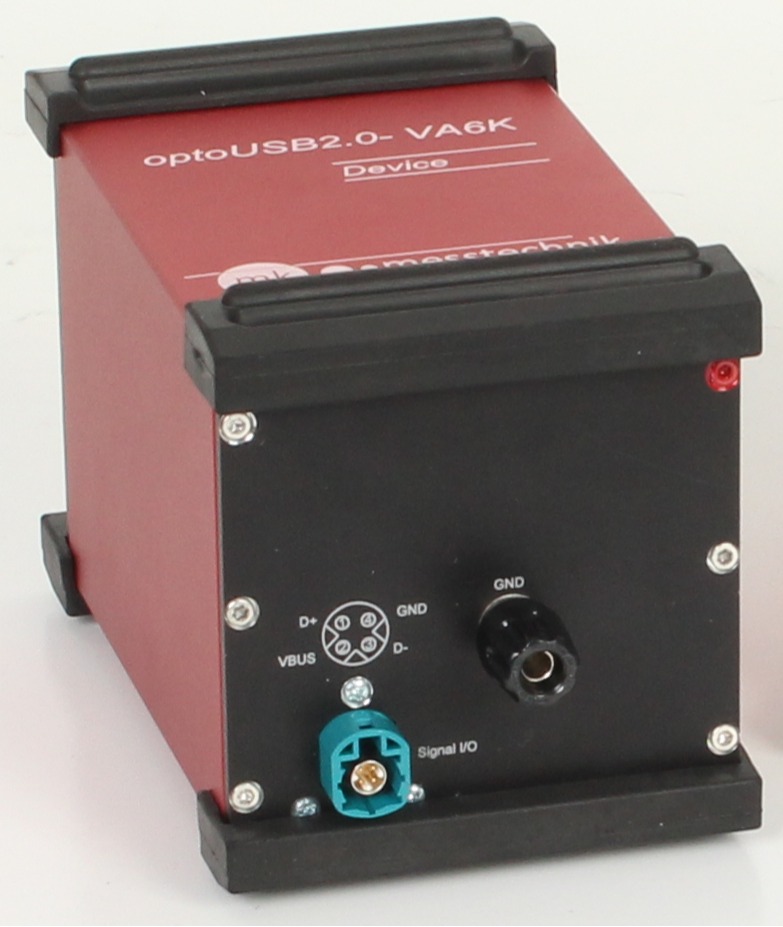

1x optoUSB2.0 -VA6K Device

USB2.0 transceiver based on Valens VA6000 chipset, capable of role reversal
USB connector: Rosenberger HSD => use adapter cable
optical connector: 2x FSMA
housing: anodized shielded aluminum with rubber protectors
integrated NiMH batteries: 10 cells, 12 V/4 Ah

battery run time: ~20 h (without USB load)

charge connector: female 5 pole Binder 712

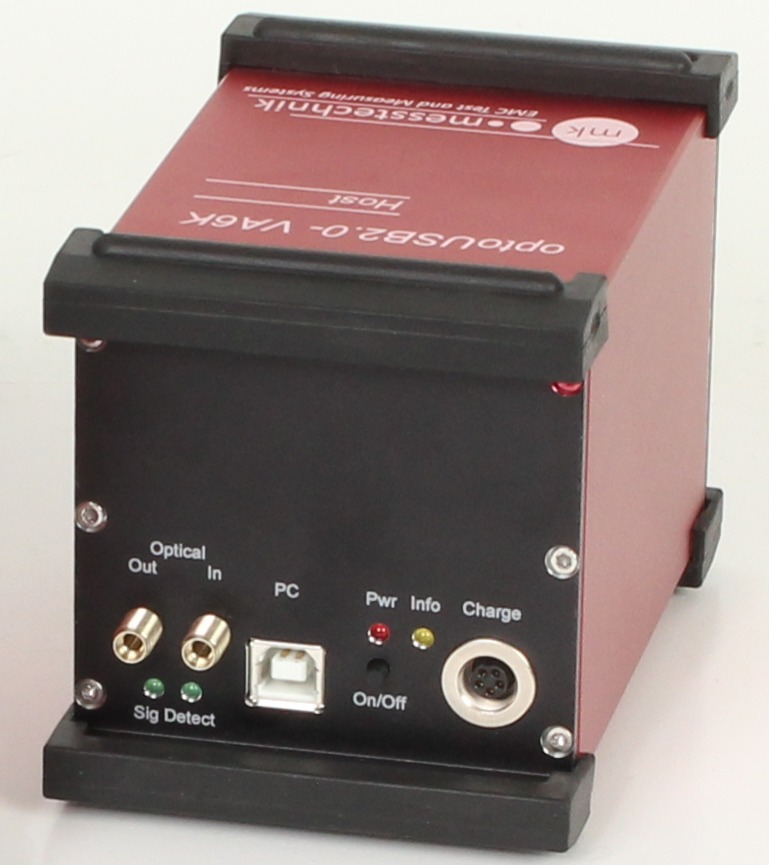

1x optoUSB2.0 -VA6K Host

optical transceiver (host) for USB2.0 signals via automotive grade signal connector
USB-connector: 1x Rosenberger HSD => use adapter cable
USB-transceiver: based on Valens VA6000 chipset, capable of role reversal
VCC power delivery: <= 500 mA
housing: anodized shielded aluminum with rubber protectors
optical connector: 2x FSMA
integrated NiMH batteries: 10 cells, 12 V/4 Ah

battery run time: >20 h (without USB load)

charge connector: female 5 pole Binder 712

1x LWL-2-20m-[FSMA]-OM1_625-[FSMA]

Duplex optical fiber, cable type: OM1, multimode, 62,5/125 μm
connector side 1: FSMA male (metal), connector side 2: FSMA male (metal)
total length: 20 m

2x CH-1-5m standard plug-in charger

number of cells: 4 .. 10 NiMH/NiCd cells up to 5 Ah
AC-input: 100-240 V, charge current: 600-800 mA, charge connector: 5 pole male
***AC-plug: Type A (US), others on request

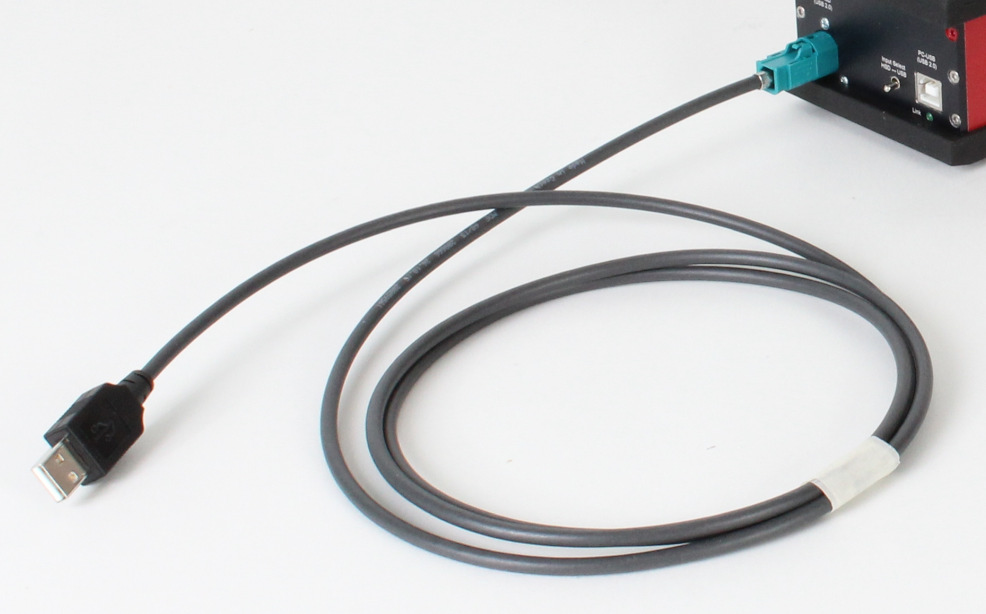

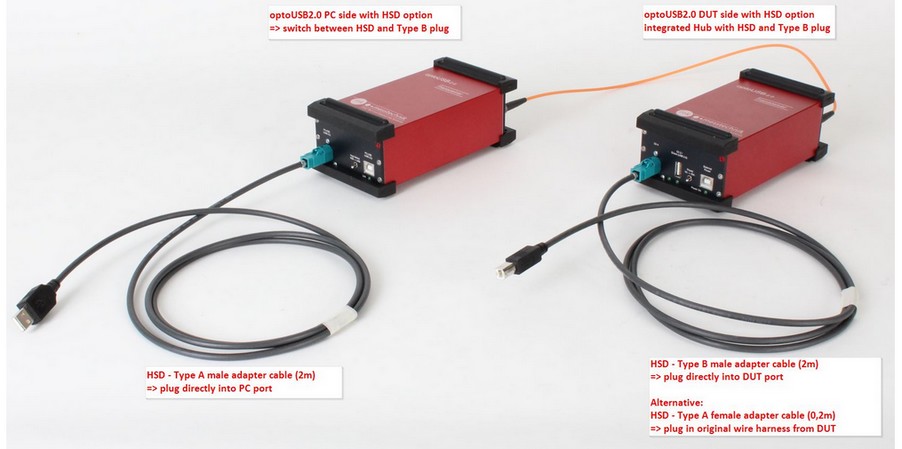

1x Rosenberger HSD cable Z - USB Type A male plug

cable with Rosenberger HSD universal coded connector - Type A male plug
high quality fully shielded confectioned solution for direct DUT connection (connect PC side USB transceiver directly to DUT => e.g. PC)
length: ~2 m

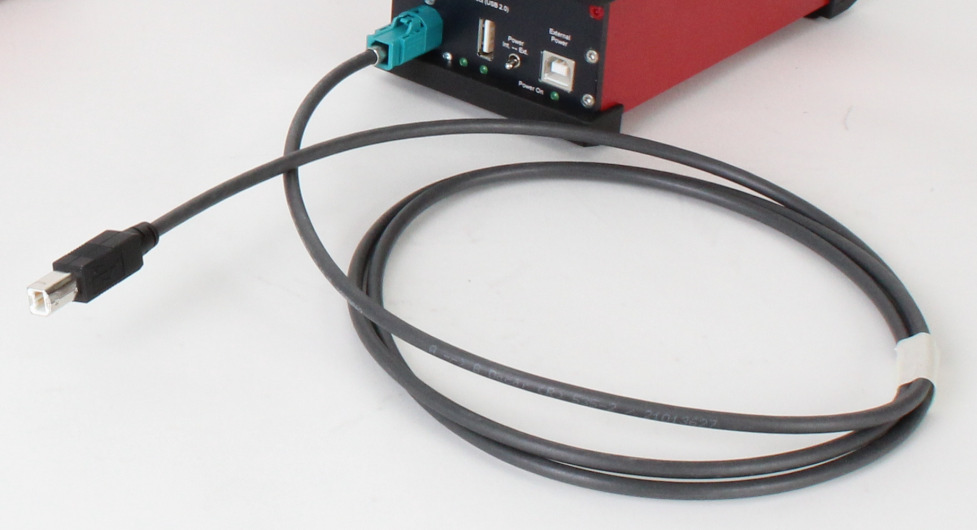

1x Rosenberger HSD cable Z - USB Type B male plug

cable with Rosenberger HSD universal coded connector - Type B male plug
high quality fully shielded confectioned solution to connect Hub side USB transceiver directly to DUT (e.g. webcam)
length: ~2 m

Additional cables on request:

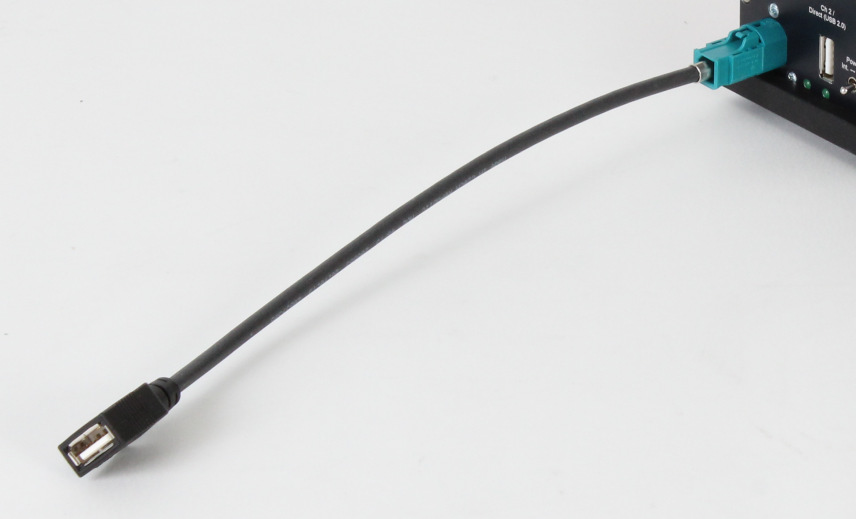

Rosenberger HSD cable Z - USB Type A female plug

short adapter cable with Rosenberger HSD universal coded connector - Type A female plug
high quality fully shielded confectioned solution to connect Hub side transceiver to DUT (e.g. webcam) with original wire harness
length: ~0.2 m

Options

HSD-to-USB adapter cables (USB-A, USB-B, automotive variants)
10 cell external power pack (4Ah or 10Ah) for run time enhancement
FSMA fiber jumpers
push-pull charge connector (advantage: save setup time)
As an alternative to the USB-A/B connectors, we offer HSD connectors for automotive use, which have a better RF performance concerning emission and immunity.
