optoVIS-4 Fiber-Optic Light Intensity Monitoring System

Monitor how your lighting performs during EMC testing. The optoVIS-4 from mk-messtechnik converts visible light intensity into electrical signals, allowing you to observe light output and flicker on an oscilloscope.

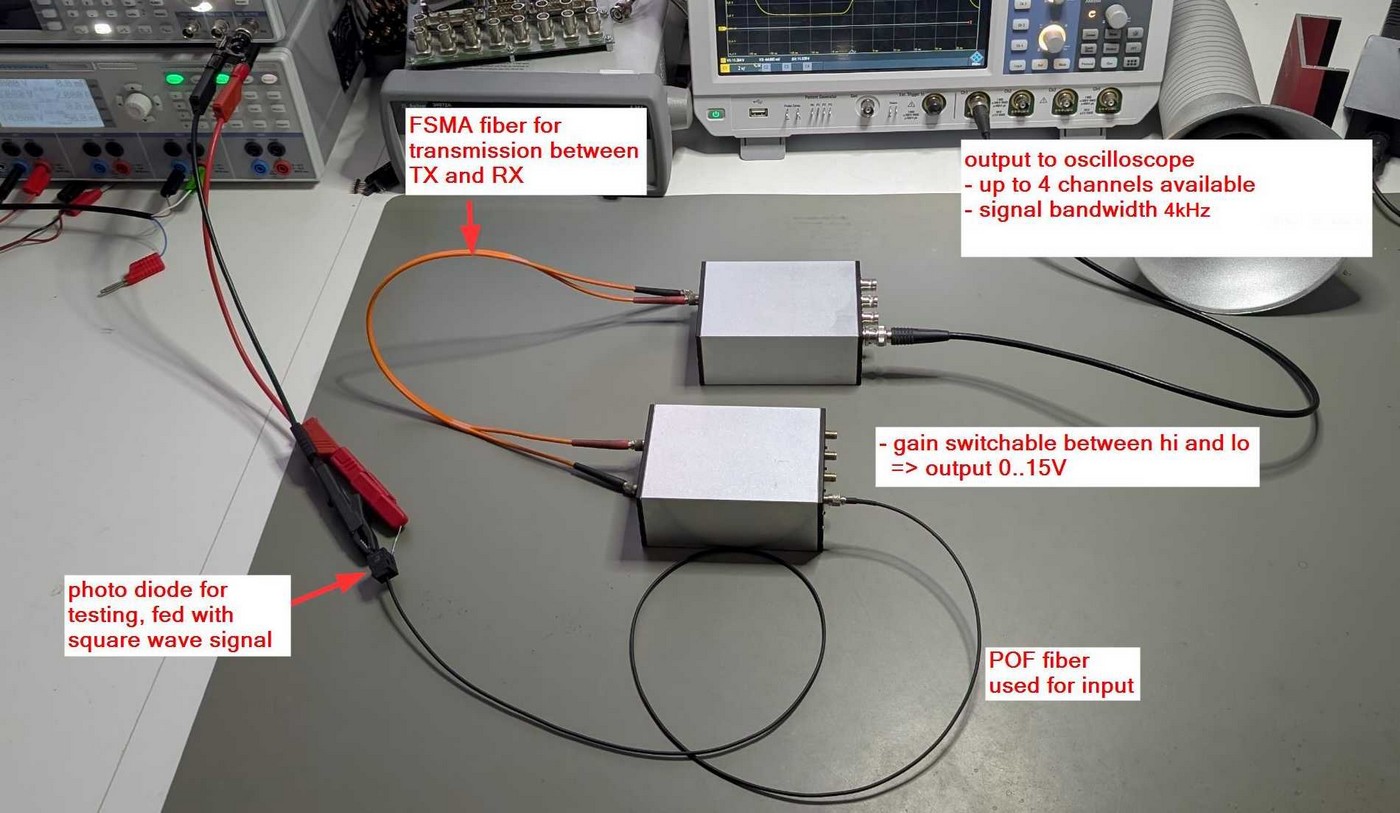

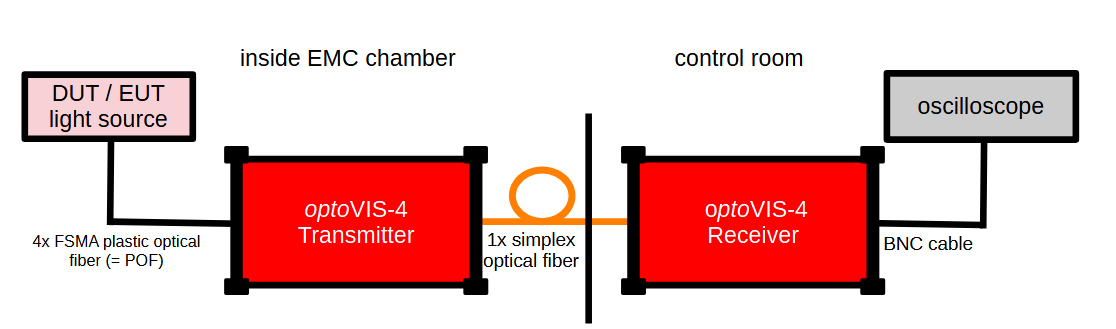

Designed for automotive and industrial lighting applications, the system combines four optical sensing channels with a battery-powered transmitter and receiver connected by fiber. Optical transmission and shielded housings support use in demanding EMC test environments.

Technical Specifications

Parameter	Specification
Monitoring channels	4
Analog bandwidth	Up to 4 kHz cutoff frequency
Sensitivity	High/low gain selectable per channel via DIP switch
Transmission direction	Unidirectional
Light inputs	Four FSMA inputs using plastic optical fiber
Receiver outputs	BNC; 0–15 V, maximum 10 mA
Measurement connection	High-impedance measurement equipment required
Optical link	Simplex multimode fiber, 62.5/125 µm, 850 nm; FSMA connector
Integrated batteries	6 V, 4 Ah NiMH
Operating time	Approximately 13 hours per full charge
Housing	Anodized aluminum
Housing dimensions	118 × 80 × 50 mm
Weight	Approximately 760 g

Typical Applications

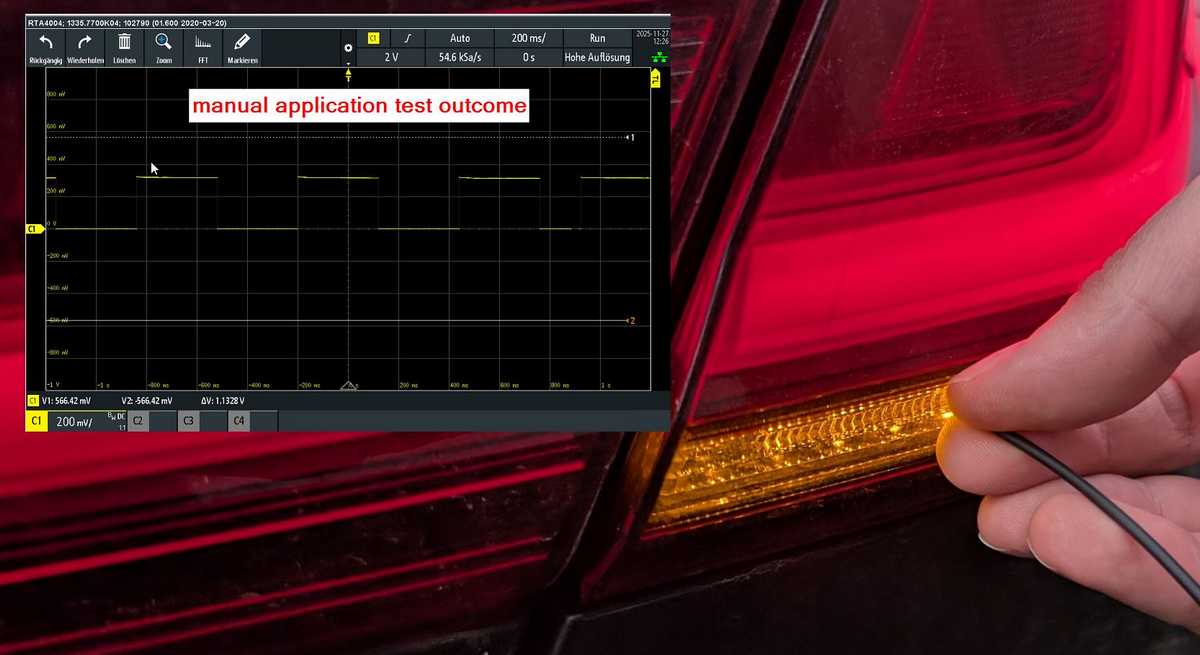

Observe automotive headlamp and turn-signal performance.
Detect flicker and changes in industrial lighting.
Monitor lighting operation during EMC testing.

Standard System Includes

1x optoVIS-4 Transmitter
1x optoVIS-4 Receiver
1x 20 m simplex multi-mode op cal fiber (OM1) FSMA/FSMA
4x 2 m simplex plas c op cal fiber (POF) 980/1000 µm FSMA/open end (to transmit the EUT/DUT light)
2x chargers for the integrated batteries, AC plug types available: A(US), C(EU), G(UK), and I(AUS)

Accessories and options

Optical fiber - types: FSMA, ST, FC, LC, E2000 (combinations possible), 62.5/125 µm or 50 µm
Optical fiber - lengths: 0.5 m –> 100 m
Optical fiber - feedthrough: FSMA/FSMA, ST/FSMA, ST/ST, FC/FC
Optical fiber - cleaning: Fiber optic cleaning set
Optical fiber - protective caps: protective cap/cover for male FSMA op cal fibers captive cap/cover for male FSMA optical fibers (connected to the cable => does not get lost)
Optical connector - protective caps: Protective cap/cover of FSMA optical input/output of mk devices; captive cap/cover of FSMA op cal input/output of mk devices
External battery pack BP60: for runtime enhancement of the device in the EMC chamber 4 Ah or 10 Ah (additional high-capacity charger needed) PS75-5m (suitable charger for Binder 712 devices) PS75-5m PP12 (suitable charger for push pull 12mm devices)
Power supply: For constantly powering the device in the control room (does not charge the device) AC plug types available: A(US), C(EU), G(UK), and I(AUS)
