optoTMDS-AV, Fiber-optic Link for HDMI signals

The optoTDMS-AV is compatible with HDMI and can transmit video signals with a resolution up to 2160p30. Not all signal combinations are supported, please ask for details.

Please note that HDMI is a consumer electronic interface that is not capable with automotive or MIL test levels.

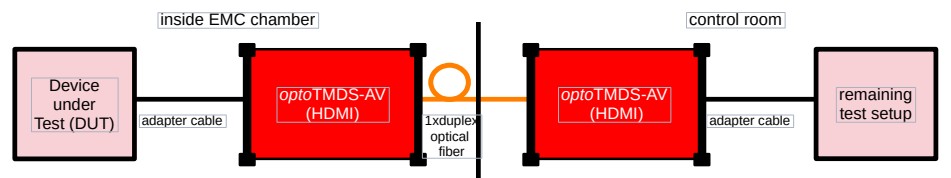

With the integrated batteries and shielded housing as well as a box-in-box concept for the video signal connector, it is maximum prepared to what is possible with this type of connector. The quality of the shielded cable plays a significant role in EMC performance.

Technical Data: optoTMDS

• Channels: 1
• Resolution: 2160p30
• Data Direction: Bidirectional
• Input: compatible to HDMI
• Output: compatible to HDMI
• Power supply: integrated batteries 4 Ah, consisting of 7x NiMH cells, 8.4 V
• Operating Time: operating time with fully charged batteries: approx. 6-8 h
• Case dimensions:
  • 165mm x 86mm x 65mm
  • Aluminum case with rubber protectors
• Weight: approx. 760g
• Optical fiber: 2x FSMA / duplex multimode fiber 62.5/125 pm, 850 nm
