PG-CS115 - CS115 Test Generator, 1kV into 50 Ohms

Benefits of the PG-CS115 Pulse Generator

  • MIL-STD 461 Compliant: Meets stringent military standards for reliable testing.
  • Flexible Configurations: Available as standalone (PG-CS115) or modular (M-CS115) units.
  • Comprehensive Accessories: Optional injection probe, attenuator, oscilloscope, and control software.
  • High Precision: Delivers accurate rectangular pulses with rapid rise/fall times (≤ 2 ns).
  • Versatile Testing: Supports single and repetitive pulse rates from 1 to 50 Hz.
  • Compact Design: Lightweight and portable, ideal for various testing environments.
  • Reliable Performance: Durable construction ensures long-term use in demanding settings.

Enhance your EMC testing with the CS115 Pulse Generator—precision, compliance, and versatility combined.

PARTNER:

MARKETS:

CATEGORIES:

TEST STANDARDS:

Data Sheet

SPECIFICATIONS

PG-CS115 Pulse Generator

Overview

The CS115 Pulse Generator by Absolute EMC is a high-performance transient generator meticulously designed to meet the stringent requirements of the MIL-STD 461 CS115 standard. This robust device is essential for verifying the resilience of Equipment Under Test (EUT) against pulse excitations on interconnecting cables, ensuring your electronics maintain peak performance in demanding environments.

Key Features

  • MIL-STD Compliance: Fully compliant with MIL-STD 461 D/E/F/G CS115 and MIL-STD 462 D CS115, ensuring reliable and standardized testing results.
  • Versatile Configuration: Available as a standalone unit (PG-CS115) or as a modular component (M-CS115) for integration into Montena’s POG-CS116 modular generator system.

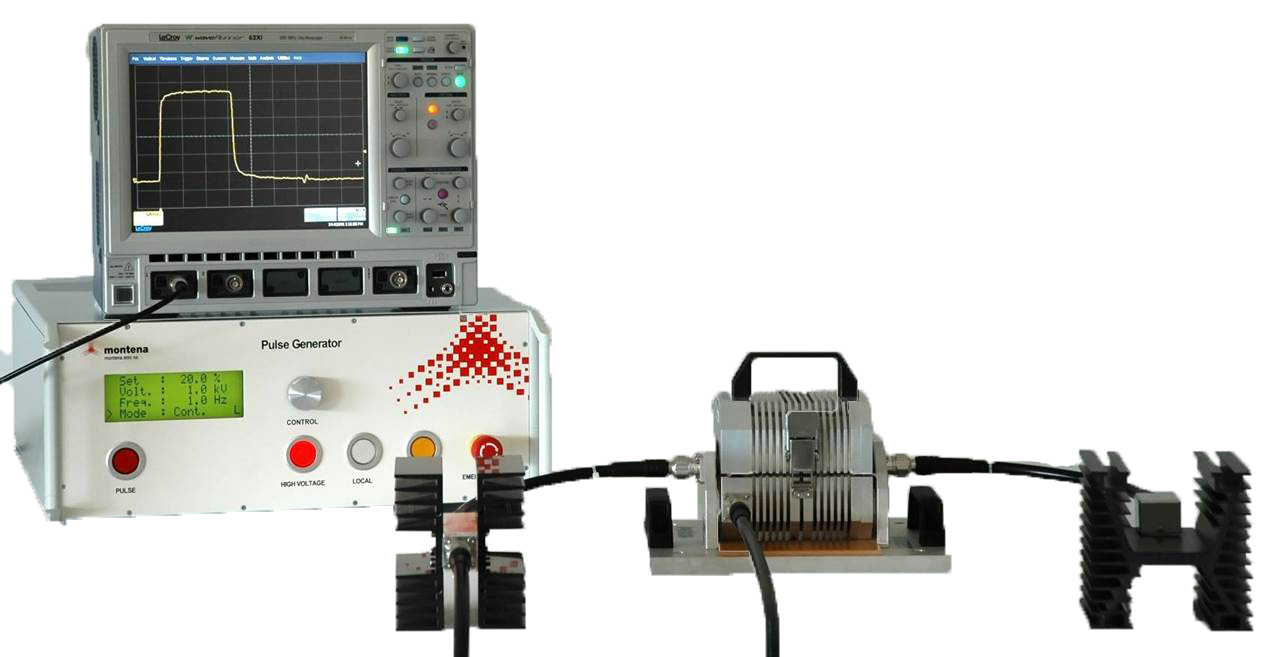

  • Comprehensive Accessories: Option to include an injection probe, attenuator, oscilloscope, and intuitive control software for a complete testing setup.
  • Precision Performance:
    • Output Waveform: Rectangular, delivering consistent and accurate pulse shapes.
    • Maximum Output Voltage: Approximately 1 kV (on 50 ohm), suitable for a wide range of testing scenarios.
    • Repetition Rates: Single pulses or continuous operation from 1 to 50 Hz.
    • Rise and Fall Times: Swift transitions with ≤ 2 ns rise time and ≤ 2 ns fall time, ensuring precise pulse shaping.
    • Pulse Duration: Sustained pulses with a duration of ≥ 30 ns (90-90%).
    • Pulse Amplitude Variation: Maintains stability with ± 5% variation.
  • User-Friendly Control: Equipped with RS232 and USB interfaces for seamless integration with your existing testing infrastructure.
  • Robust Construction:
    • Standalone Generator (PG-CS115): Weighs 13.5 kg with dimensions 550 x 450 x 180 mm, designed for easy rack mounting in a 19" setup.
    • Module (M-CS115): Lightweight at 1.2 kg and compact (240 x 235 x 65 mm), perfect for installation within the POG-CS116 generator system.
  • Operational Efficiency:
    • Power Supply: Wide range compatibility with 90-264 Vac, 47-63 Hz, and 150 VA for versatile power environments.
    • Temperature Range: Reliable performance with storage temperatures from 5 - 50°C and operating temperatures from 20 - 45°C.
  • Connectivity: Features a 50 ohm female connector, ensuring seamless integration with your testing setup.

Specifications

ParameterPG-CS115 (Standalone Generator)M-CS115 (Module)
Standards MIL-STD 461 D/E/F/G CS115, MIL-STD 462 D CS115 MIL-STD 461 D/E/F/G CS115, MIL-STD 462 D CS115
Output Waveform Rectangular Rectangular
Maximum Output Voltage ~1 kV (on 50 ohm) ~1 kV (on 50 ohm)
Repetition Rates Single, 1 to 50 Hz Single, 1 to 50 Hz
Rise Time (10-90%) ≤ 2 ns ≤ 2 ns
Fall Time (90-10%) ≤ 2 ns ≤ 2 ns
Pulse Duration (90-90%) ≥ 30 ns ≥ 30 ns
Pulse Amplitude Variation ± 5% ± 5%
Output Impedance / Connector 50 ohm / N (female) 50 ohm / N (female)
Storage Temperature 5 - 50°C 5 - 50°C
Operating Temperature 20 - 45°C 20 - 45°C
Control Interfaces RS232 and USB n/a
Power Supply 90 - 264 Vac / 47 - 63 Hz / 150 VA Internal
Weight 13.5 kg 1.2 kg
Dimensions (L x W x H) 550 x 450 x 180 mm (4U) 240 x 235 x 65 mm

Applications

The CS115 Pulse Generator is ideal for a variety of applications, including:

  • Electromagnetic Compatibility (EMC) Testing: Ensure your products meet military standards for electromagnetic resilience.
  • Quality Assurance: Validate the durability of interconnecting cables and electronic components under pulse excitations.
  • Research & Development: Facilitate the development of robust electronic systems capable of withstanding transient events.
  • Pre-compliance Testing: Prepare your products for formal compliance testing by simulating real-world pulse conditions.

Ordering Information

Choose the configuration that best suits your testing needs:

TypeDescription
PG-CS115 Pulse generator for MIL-STD 461 D/E/F/G CS115, 19" rack version
M-CS115 Module for MIL-STD 461 D/E/F/G CS115, to be installed in the POG-CS116-x generator
IPDR250 Injection probe for CS114, CS115, or CS116 tests, frequency range: 10 kHz - 400 MHz, internal diameter: 43.8 mm  BCI Probe for CS115, CS116, CS114
CJDR250 Calibration JIG for the injection probe IPDR250  Calibration Jig with probe

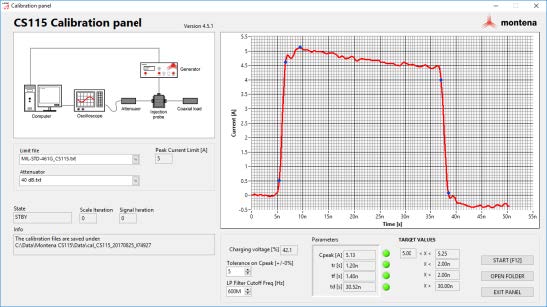

SW-CS115 Control software for MIL-STD-461 CS115 test setup SW-CS115

Why Choose the CS115 Pulse Generator?

Absolute EMC’s CS115 Pulse Generator offers unparalleled precision, compliance, and versatility, making it the ideal choice for rigorous electromagnetic testing. Whether you require a standalone solution or a modular addition to your existing setup, the CS115 delivers reliable performance to meet your stringent testing standards.



Enhance your testing capabilities with the CS115 Pulse Generator—where precision meets compliance.
