PG-C202 - Damped Sinusoid Generator CS116 +7dB levels

Special custom generator for high current DOW testing

High Current Capability: Up to CS116 +7dB for direct injection, 23 A with the optional coupling clamp.
Wide Frequency Range: Operates from 10, 100 kHz 1, 10, 30, 100 MHz - expandable to 12 frequencies
Automation Ready: Fully computer-controlled with RS232 and USB interfaces for calibration, operation, and report generation.
Efficient Testing: Single output connection eliminates reconnections, significantly reducing test time.

Optimize your naval and industrial testing with the CS116 Damped Sinusoid Generator—precision and efficiency combined.

PARTNER:

MONTENA TECHNOLOGY SA

MARKETS:

Avionics ,
Military ,

TEST STANDARDS:

MIL-STD-461 ,
MIL-STD-461 CS1116 ,

Data Sheet

SPECIFICATIONS

PG-C202 Damped Sinusoid Generator CS116 +7dB

Overview

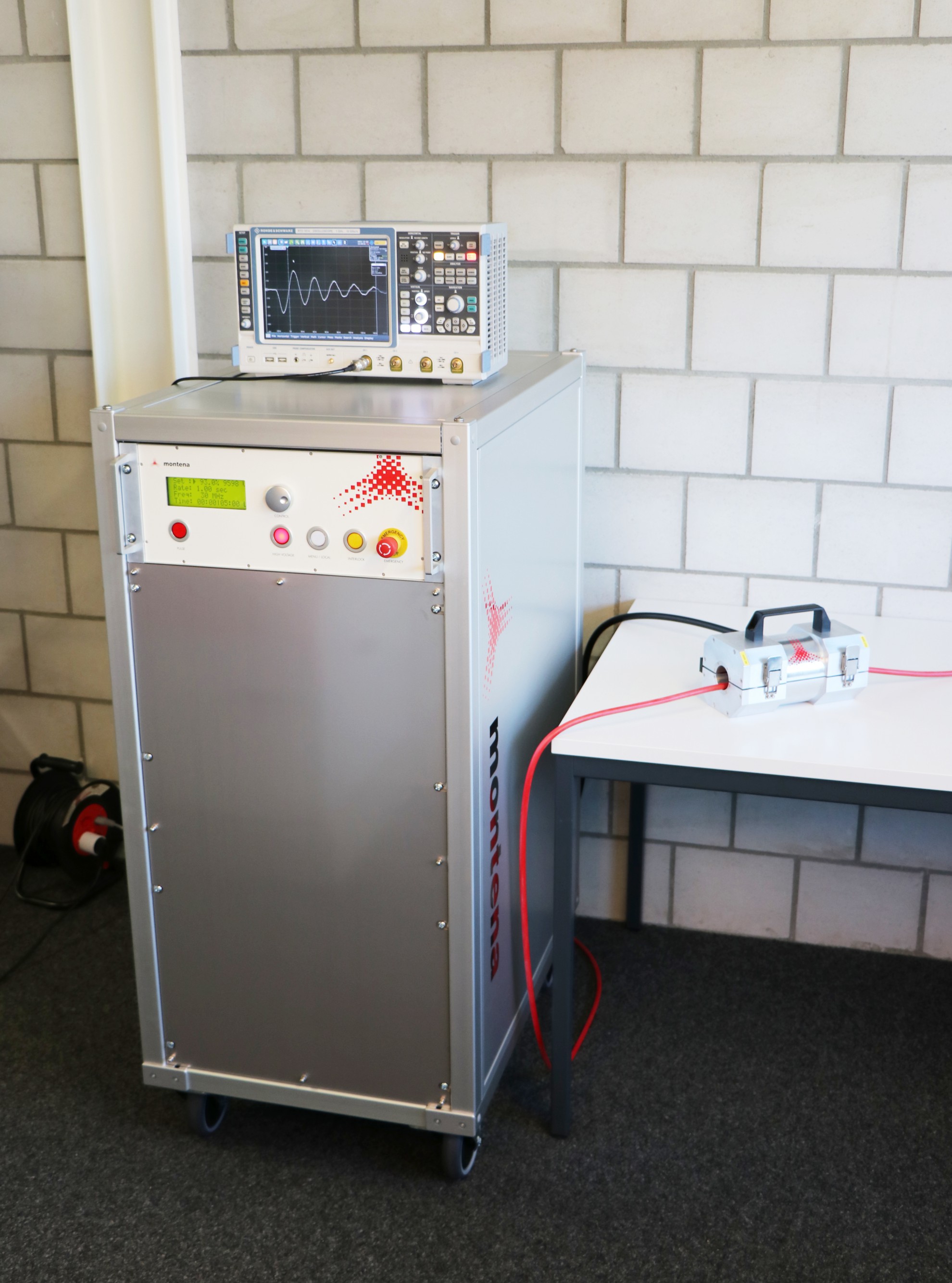

This unique transient generator exceeds the requirements of the MIL-STD-461 CS116 test method because it can produce more than twice the current levels of the MIL-STD 461 CS116. The test method CS116 is used to verify the ability of the device under test to withstand sinusoidal excitation on interconnecting cables. The generator can be ordered with a complete set of accessories consisting of a current injection probe, a current measurement probe, a set of coaxial load and attenuators, an oscilloscope, and control software.

In addition to the basic requirements of the CS116 test, the number of test frequencies can be increased to 12 instead of 6 in the frequency range 10 kHz - 100 MHz. This allows for better excitation of the resonances of the device under test.

The generator has one signal output only and does not require any connection change during the test. This feature reduces the test duration and enables automated calibration and test sequences. All settings and levels are recorded for the measurement and for the generation of a test report.

Key Features

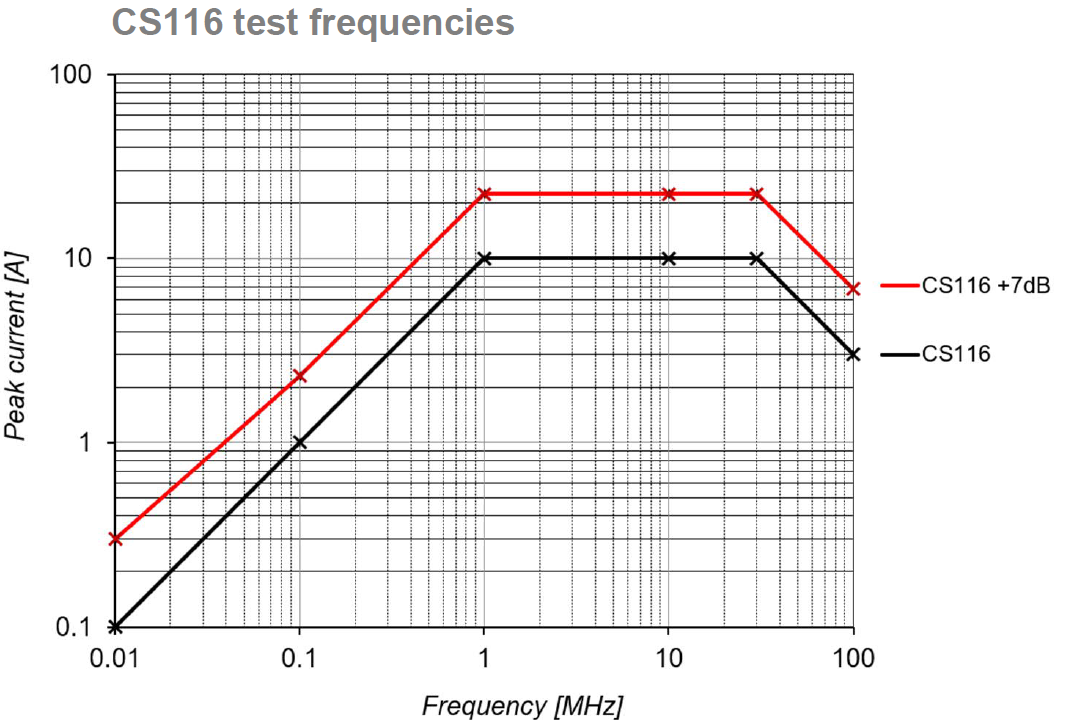

Exceeds MIL-STD-461 CS116 Requirements: Generates current levels up to +7 dB above the standard, ensuring thorough testing of interconnecting cables and systems.
Extended Frequency Range: Supports 6 standard frequencies from 10 kHz to 100 MHz, expandable to 12 frequencies for improved excitation of resonances in the device under test.
Simplified Connections: Single signal output eliminates the need for reconnections, reducing test time and enabling seamless automated calibration and testing.

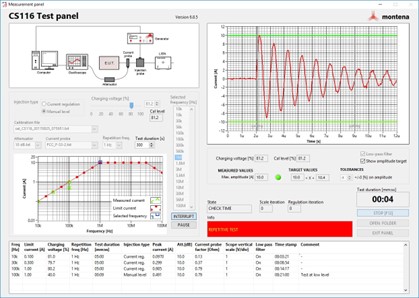

Enhanced Automation: Includes software to automate calibration, adjust levels, collect measurement data, and generate test reports.
High Durability: Rated for up to 1 million impulses in open circuit and 0.5 million impulses in load conditions, ensuring reliability over extended use.

Specifications

Parameter	PG-C202
Standards	MIL-STD 461 D / E / F / G , CS116 levels +7dB
Output Waveform	Damped oscillatory wave
Test Frequencies	10, 100 kHz 1, 10, 30, 100 MHz - expandable to 12 frequencies
Output Current	up to 23 A on a 100 ohm load (depends on the frequency)
Output Impedance	< 100 ohm
Damping Factor	15 +/- 5
Maximum stored energy	6.4 J
Repetition Rates	single, 1 to 10 second
Test time (repetitive mode)	0 to 10 min
Maximum sequence duration	10 min.
Mechanical life of the high voltage actuator for each frequency	0.5 million impulses in load 1 million impulses in open circuit
Output Impedance / Connector	7/16 female
Storage Temperature	-10 - 60°C
Operating Temperature	5 - 40°C
Control Interfaces	RS232 and USB
Power Supply	90 - 250 Vac / 50 - 60 Hz / 100 VA
Weight	~150 kg
Dimensions (L x W x H)	840 x 570 x 1300 mm (cabinet with caster wheels)

Applications

The PG-C202 is ideal for:

Military EMC Testing: Ensure compliance with MIL-STD-461 CS116 for robust military systems.
Cable and Interconnection Testing: Verify the resilience of cables and components under sinusoidal excitation.
Automation-Driven Labs: Streamline calibration and reporting processes with dedicated control software.
Custom Standards: Adaptable to specific frequencies and unique test scenarios for specialized applications.

Ordering Information

Choose the configuration that best suits your testing needs:

Type	Description
PG-C202	Transient generator for MIL-STD 461 CS116 levels plus 7 dB, 6 test frequencies, with 19-inch cabinet and 7/16 output connector

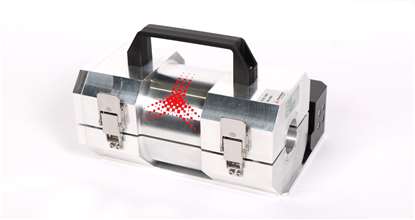

IPDN150ACC	high current coupling clamp, frequency range: 10 kHz - 400 MHz, max 75 A for f ≥1MHz, internal diameter: 43.8 mm, 5 m coaxial cable, HVM50K(m) connector
CJDN150	Calibration jig for the injection probe IPDN150ACC
SW-CS-DOW	Control software for DOW test setup

Why Choose the PG-C202?

With its advanced features, high current capacity, and exceptional frequency range, the PG-C202 sets a new benchmark for damped oscillatory wave testing. Whether for compliance with MIL-STD-461 or other high-power standards, this generator offers unmatched reliability and ease of use.

Contact Absolute EMC LLC to learn how the PG-C202 can enhance your testing capabilities.
