CABDO160CR, >600V Voltage Spike Generator, DO160 Sec 19

  • DO 160 Section 19 Compliance: Generates chattering relay spike trains meeting RTCA DO 160 §19.3.5 and Boeing D6-16050-4 §7.5.2 requirements.
  • Adjustable High Voltage Pulses: Up to 600 V burst amplitude, 0.2–10 µs spike width, 50–1000 µs burst duration.
  • Intuitive Touchscreen Interface: 7″ display for real time control of polarity, burst length, and duty cycle.
  • Dual Monitor Outputs: Two 100:1 Banana ports (≥100 MHz bandwidth) for precise oscilloscope verification.
  • Robust Safety Design: Shrouded banana outputs, reinforced HV wiring, earth ground lug, and IP3X enclosure.
  • Compact & Portable: 235 × 180 × 140 mm, 2.3 kg—ideal for laboratory or on aircraft test environments



PARTNER:

MARKETS:

TEST STANDARDS:

Data Sheet

Manual

SPECIFICATIONS

CABDO160CR, DO 160 Section 19 Interconnecting Cable Spike Generator

Overview

The Section 19 Spike Generator is engineered to replicate the relay contact bounce and arcing transients specified in RTCA DO 160 Section 19.3.5 and Boeing D6-16050-4 Section 7.5.2. Delivering precisely controlled high-voltage pulse trains into interconnect cabling enables accurate verification of avionics equipment immunity to voltage spikes.

Key Features

  • Standards Compliance
    – Conforms to RTCA DO 160 Section 19.3.5 “Chattering Relay Simulation” requirements.

  • High Voltage Pulse Output
    – Adjustable pulse amplitude up to 600 V, burst duration 50–1000 µs, spike width 0.2–10 µs.

  • Touch Screen Control

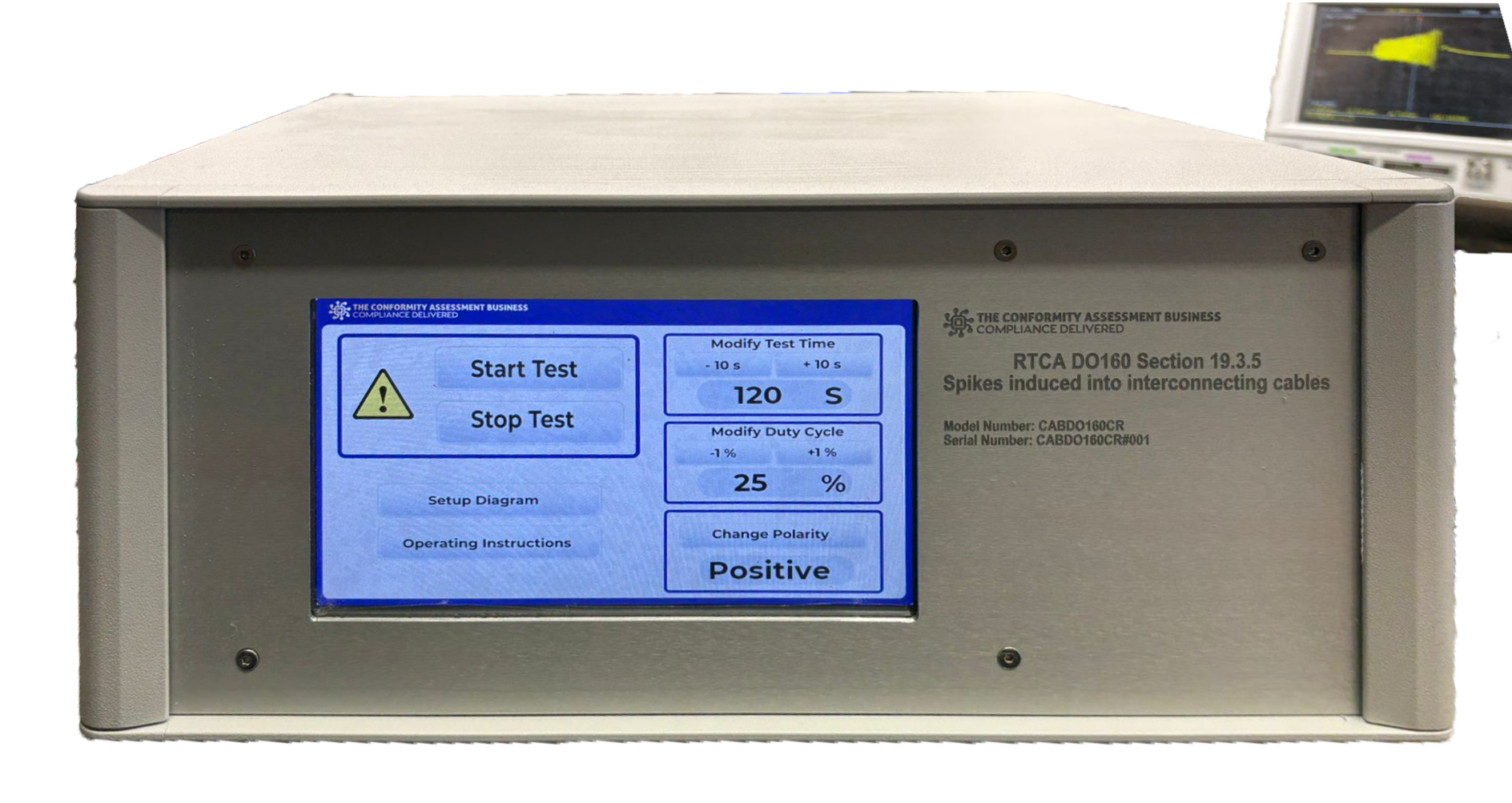

    – Intuitive 7″ display for setting test duration (10 s–10 min), polarity, and duty cycle in real time.

  • Dual Monitor Ports

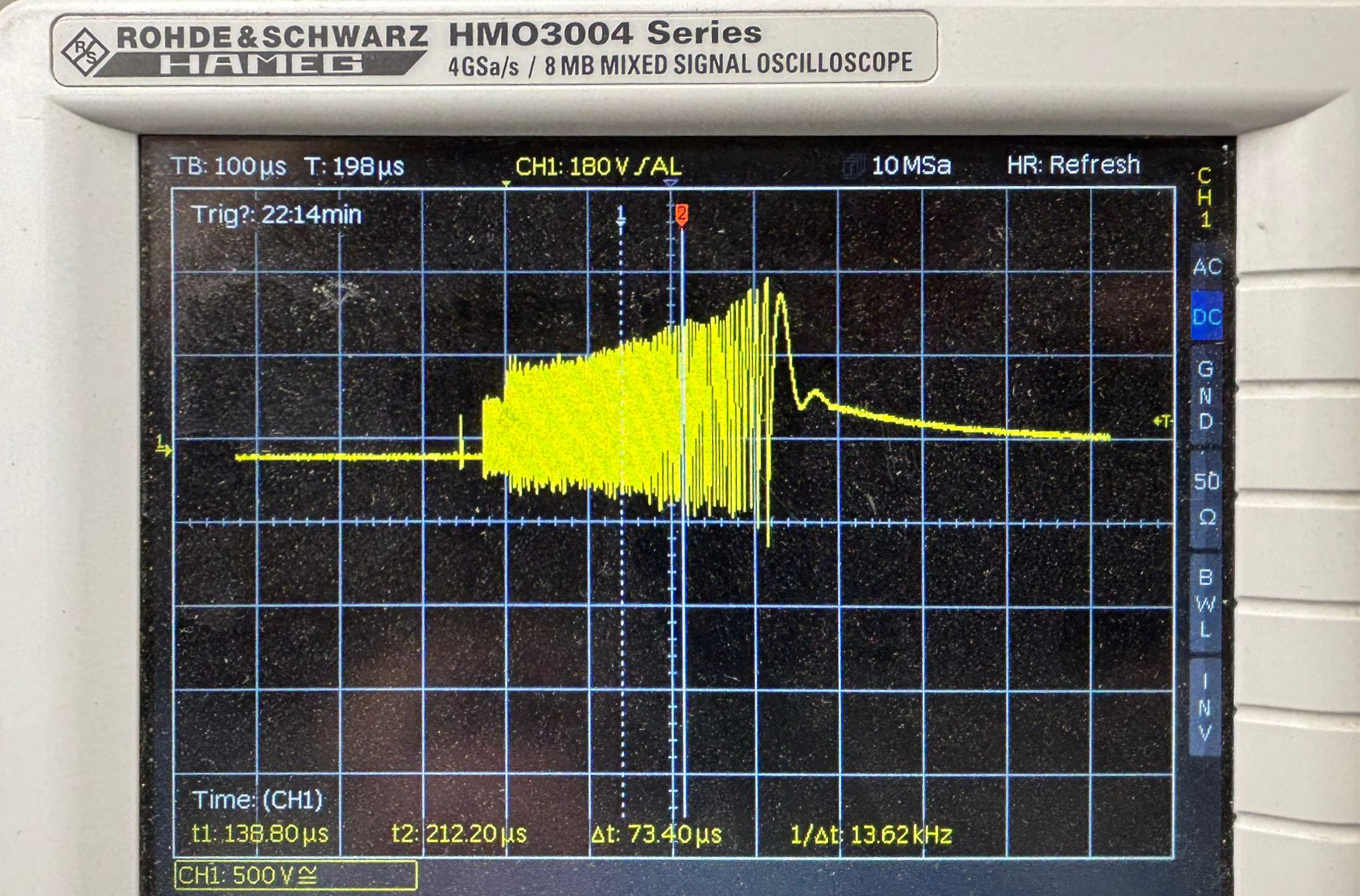

    – Two 100:1 oscilloscope monitor outputs (≥100 MHz bandwidth) for real-time pulse verification.

  • Robust Safety Design

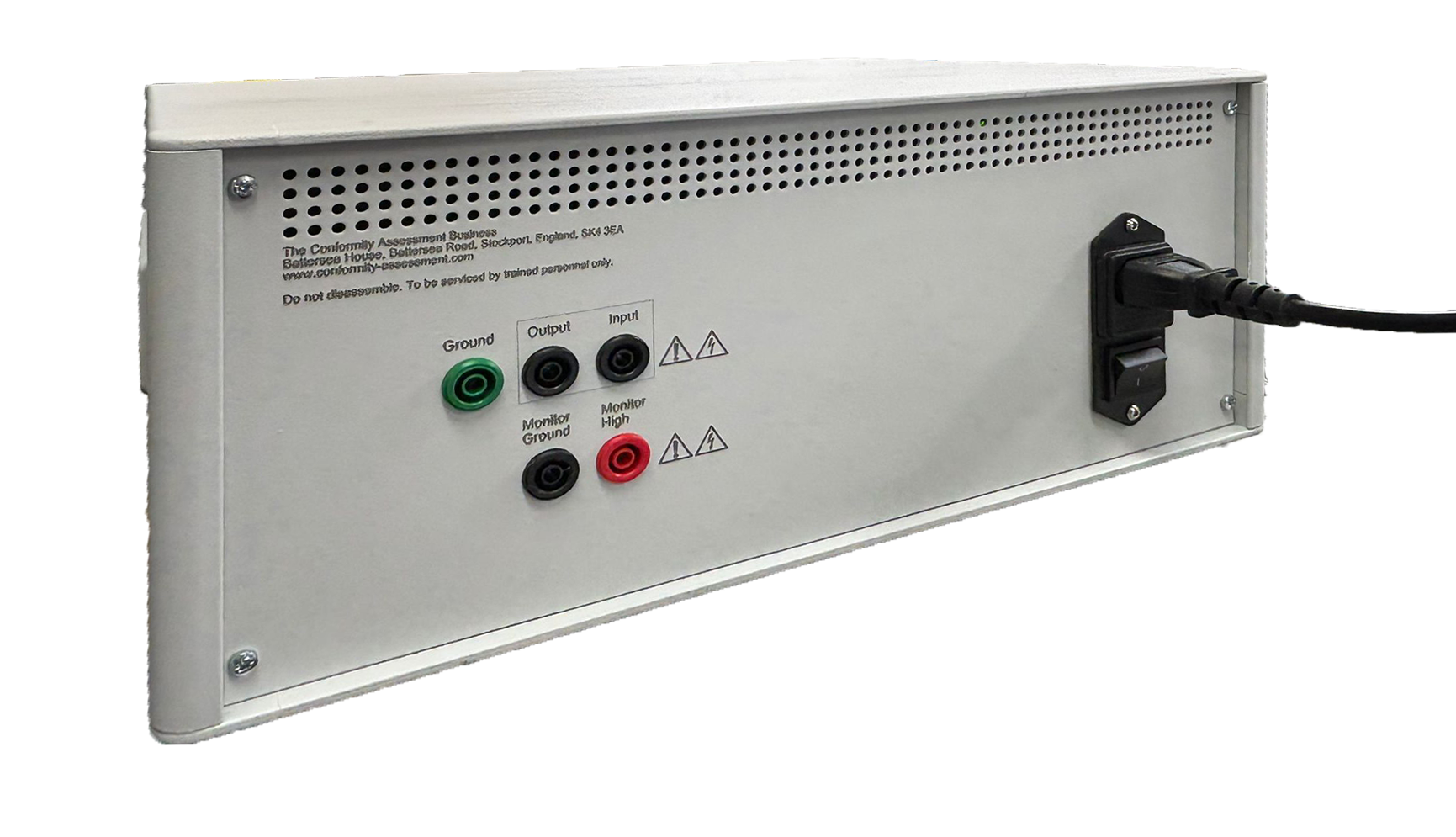

    – Shrouded 4 mm banana outputs, reinforced HV wiring, and mandatory earth ground lug ensure operator protection.

Test Compliance

StandardRequirement
RTCA DO 160 Section 19.3.5 Burst of individual spikes to simulate relay bounce
Boeing D6-16050-4 Section 7.5.2 Equivalent chattering relay pulse train

Electrical & Mechanical Specifications

ParameterSpecification
Supply Voltage 110 VAC, 50/60 Hz
Maximum Current Draw 1 A
Pulse Amplitude Up to 600 V (burst); individual spike 0.2–10 µs
Burst Duration 50–1000 µs
Pulse Repetition Rate 9 Hz
Monitor Outputs Two 4mm Banana, 100:1 probe (≥100 MHz rating)

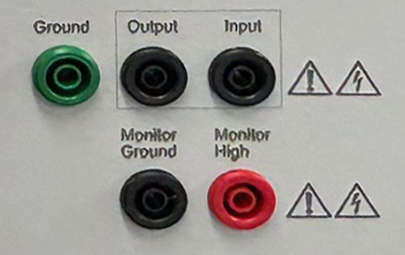

Safety Connectors 2 × 4 mm shrouded banana outputs; 1 × earth lug
Enclosure Rating IP3X; Pollution Degree II; Overvoltage Category II
Operating Conditions 10 °C – 40 °C, ≤55 % RH, indoor use, ≤2000 m altitude
Dimensions 235 × 180 × 140 mm
Weight 2.3 kg

All specifications per the manufacturer’s DO 160 Section 19 manual.

Safety Precautions



  • Qualified Personnel Only: Only trained operators may use this generator.

  • Grounding Required: Connect the front-panel earth lug to the reference ground plane before energizing.

  • No Live Contact: Keep personnel clear of the EUT and wiring during pulse application.

  • Equipment Integrity: Inspect all HV wiring and shrouded connections for damage prior to each use.
