PG-C201 - Damped Sinusoid Generator 300A

Special custom generator for high current DOW testing

High Current Capability: Up to 300 A for direct injection and 75 A with the optional coupling clamp.
Wide Frequency Range: Operates from 100 kHz to 55 MHz with 10 discrete frequencies (expandable to 10 kHz–100 MHz on request).
Automation Ready: Fully computer-controlled with RS232 and USB interfaces for calibration, operation, and report generation.
Efficient Testing: Single output connection eliminates reconnections, significantly reducing test time.

Optimize your naval and industrial testing with the CS116 Damped Sinusoid Generator—precision and efficiency combined.

PARTNER:

MONTENA TECHNOLOGY SA

MARKETS:

Avionics ,
Military ,

TEST STANDARDS:

MIL-STD-461 ,
MIL-STD-461 CS1116 ,

SPECIFICATIONS

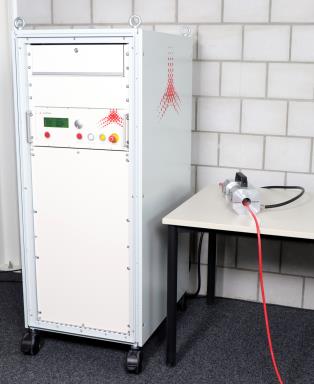

PG-C201 Damped Sinusoid Generator 300A

Overview

This unique high voltage / high current test system is used for damped oscillatory wave testing up to 300 A. The test method with the optional coupling clamp is similar to the one described in MIL-STD-461 CS116 except that this new series of generators can produce much higher current levels. The generator can be fully controlled by a computer. The calibration as well as the measurement process is entirely automated. All settings and levels are recorded for the measurement and for the generation of a test report. The system can produce up to 12 distinct frequencies between 10 kHz and 100 MHz. It has only one output and does therefore not require any change of connection during the test. That feature greatly reduces the test duration. A set of accessories such as a special coupling clamp, a high voltage attenuator ..etc, are proposed as an option.

Key Features

High Current Capability
- Up to 300 A for direct injection (short-circuit).
- Up to 150 A for direct injection in a 50 Ω load.
- Up to 75 A with the optional coupling clamp and a 50 Ω loop.
Wide Frequency Range
- Operates across 100 kHz to 55 MHz, supporting 10 discrete frequencies.
- Expanded range up to 10 kHz–100 MHz with up to 12 frequencies available on request.
Efficiency & Automation
- Fully computer-controlled for streamlined calibration and operation.
- Automated parameter recording and test report generation.
- Single output connection eliminates the need for reconnections, reducing test time significantly.
Durability & Performance
- Mechanical life of up to 1 million impulses in open circuit and 0.5 million impulses in load conditions.
- High reliability for extended testing durations, with maximum sequence durations of 10 minutes.
Compliance & Safety
- Designed to comply with EN 61010-1 for electrical safety.
- Meets EN 61326-1 for EMC compatibility.

Specifications

Parameter	PG-C201
Standards	Higher levels then MIL-STD 461D/E/F/G, CS116

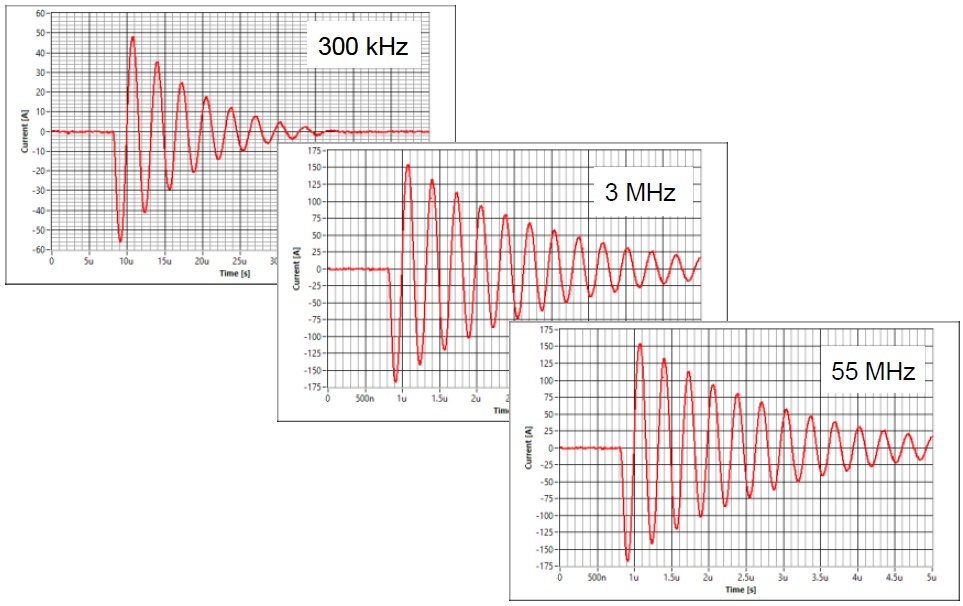

Output Waveform	Damped oscillatory wave
Test Frequencies	100 kHz to 55 MHz, 10 frequencies (10 kHz to 100 MHz and up to 12 frequencies on request)

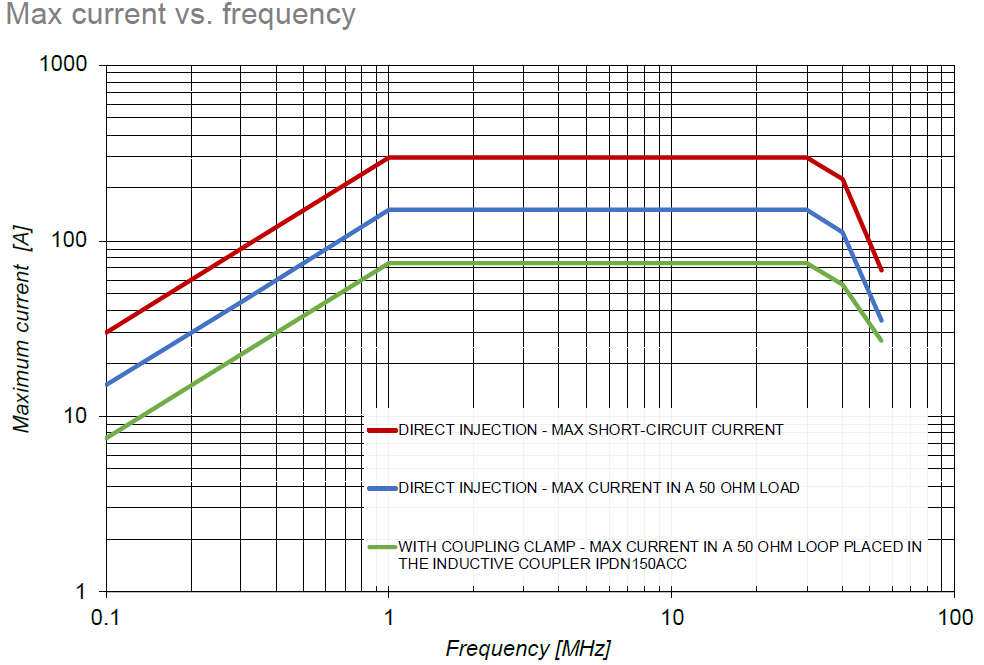

Output Current	up to 300 A (direct injection, in a short-circuit) up to 150 A (direct injection, in a 50 Ω load) up to 75 A (with the optional coupling clamp, with a 50 Ω loop placed in the coupler)
Output Impedance	50 Ω
Damping Factor	between 5 and 20 (on a 50 Ω load)
Maximum stored energy	6.4 J
Repetition Rates	5 s to 120 s
Test time (repetitive mode)	0 to 10 min
Maximum sequence duration	10 min.
Mechanical life of the high voltage actuator for each frequency	0.5 million impulses in load 1 million impulses in open circuit
Output Impedance / Connector	Montena HVM50K female
Storage Temperature	-10 - 60°C
Operating Temperature	5 - 40°C
Relative humidity	maximum 60%
Electrical insulation	oil
Control Interfaces	RS232 and USB
Power Supply	230 Vac / 50 - 60 Hz / 100 VA
Weight	~170 kg
Dimensions (L x W x H)	84 x 57 x 130 cm

Applications

The PG-C201 is ideal for:

Military EMC Testing: Enhanced compatibility with damped oscillatory wave testing with higher test levels.
Air Craft Component testing: Testing and overstressing components to meet special requirements
High-Power System Testing: Perfect for direct injection or coupling clamp applications in industrial and military environments.
Automated Compliance Testing: Simplifies testing with automated calibration, parameter recording, and report generation.

Ordering Information

Choose the configuration that best suits your testing needs:

Type	Description
PG-C201	damped oscillatory wave generator, frequency range : 0.1 - 55 MHz, 10 discrete frequencies, up to 300 A

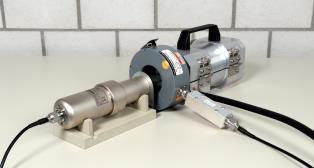

IPDN150ACC	high current coupling clamp, frequency range: 10 kHz - 400 MHz, max 75 A for f ≥1MHz, internal diameter: 43.8 mm, 5 m coaxial cable, HVM50K(m) connector
HVAT50K	high voltage coaxial attenuator 40 dB, connectors: 1 x HVM50K female, 1 x Type-N female, max. voltage 75 kV for 1ns pulse
SW-CS-DOW	Control software for DOW test setup

Why Choose the PG-C201?

With its advanced features, high-current capacity, and exceptional frequency range, the PG-C201 sets a new benchmark for damped oscillatory wave testing. Whether for compliance with MIL-STD-461 or other high-power standards, this generator offers unmatched reliability and ease of use.

Contact Absolute EMC LLC to learn more about how the PG-C201 can enhance your testing capabilities.
