PG-CS106 Pulse Generator

Overview

The PG-CS106 Pulse Generator by Absolute EMC is engineered to rigorously test the transient conducted susceptibility of power leads in compliance with MIL-STD-461F CS106 standards. Specifically designed for submarine and surface ship equipment, this generator ensures that both AC and DC input power leads can withstand high-intensity transient disturbances, maintaining the integrity and reliability of critical naval systems.

Key Features

• MIL-STD Compliance: Fully adheres to MIL-STD-461F CS106 standards, ensuring robust testing for naval power lead susceptibility.
• Versatile Configuration: Available as a standalone unit (PG-CS106) or as a modular component (M-CS106) for integration into Montena’s POG-CS116 modular generator system.
• Comprehensive Accessories: Must be ordered with the active inductive coupler IC10M. Additional optional accessories include calibration loads, oscilloscopes, and more to build a complete test setup.
• High Performance: Capable of generating peak voltages up to 500 V and peak currents ranging from 8 – 100 A, suitable for diverse testing scenarios.
• Flexible Pulse Generation: Supports repetition rates of 1 – 15 pulses per second, accommodating various testing requirements.
• Precise Control: Fully controllable via computer through RS232 and USB interfaces, enabling seamless integration with your existing testing infrastructure.
• Durable Construction: Built to withstand demanding testing environments, ensuring long-term reliability and performance.
• Compact and Portable: Lightweight and compact design for the modular unit (M-CS106), facilitating easy installation and mobility.

Specifications

Applications

• Naval Equipment Testing: Ensure the resilience of submarine and surface ship electronic systems against transient disturbances.
• Quality Assurance: Validate the durability and reliability of AC and DC power leads in harsh environments.
• Electromagnetic Compatibility (EMC) Testing: Assess and enhance the electromagnetic robustness of critical naval components.
• Research & Development: Facilitate the development of robust power systems capable of withstanding high-intensity transients.
• Precompliance Testing: Prepare your naval equipment for formal compliance by simulating real-world transient conditions.

Ordering Information

Choose the configuration that best suits your testing needs:

Type	Description
PG-CS106	Standalone pulse generator for MIL-STD-461F CS106, 19" rack version
M-CS1106	Module for MIL-STD-461F CS106, to be installed in the POG-CS116 modular generator

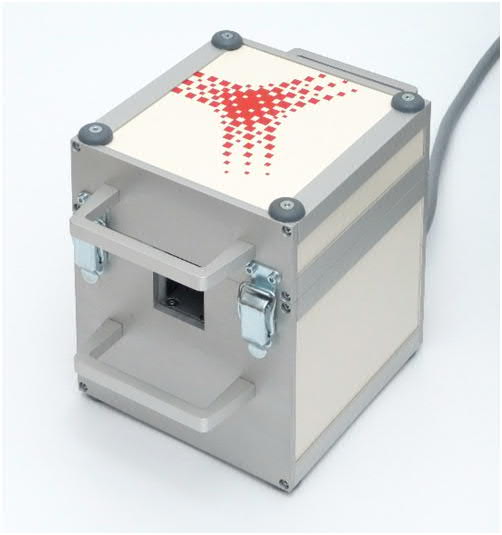

IC10M	Injection probe for MIL STD 461 CS106, frequency range : 10 kHz - 10 MHz, internal diameter : 40 mm
SW-CS106	Control software for MIL-STD-461 CS115 test setup

Why Choose the PG-CS106 Pulse Generator?

Absolute EMC’s PG-CS106 Pulse Generator offers unmatched precision, compliance, and versatility, making it the ideal choice for rigorous transient susceptibility testing in naval applications. Whether you require a standalone solution or a modular addition to your existing setup, the PG-CS106 delivers reliable performance to meet your stringent testing standards.

Ensure the reliability and resilience of your naval power systems with the PG-CS106 Pulse Generator—precision engineering for critical applications.
