ISN 303417, ISN for 150 Ohm Common Mode Measurements
- Impedance stabilization network (ISN)
- For the measurement of con- ducted disturbances using a current clamp on WPT (wireless power transmission) systems.
- Acc. standard ETSI EN 303417 chapter 6.2.4
PARTNER:
MARKETS:
CATEGORIES:
TEST STANDARDS:
Data Sheet
SPECIFICATIONS

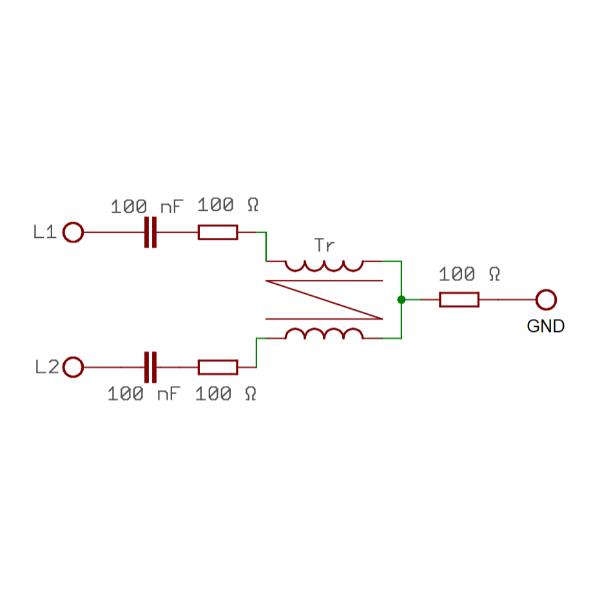

ISN 303417, ISN for 150 Ohm Common Mode MeasurementsDescription The impedance stabilization network ISN 303417 is used for the measurement of conducted disturbances using a current clamp on WPT (wireless power transmission) systems. It is especially designed according to ETSI EN 303417 chapter 6.2.4. The circuit dia- gram is shown in Fig. 2. Fig. 3 shows the WPT setup together with the ISN. For common mode signals the ISN presents an impedance of 150 ? (see Fig. 4). For differential signals, the imped- ance of the ISN (see Fig. 5) is sufficiently high in order not to bias the operation of the WPT.
|
