ONYX 30

The ONYX is a state-of-the-art electrostatic discharge test system that is available in 16 kV or 30 kV versions. The ONYX 30 is the most ergonomic 30 kV ESD gun without an additional base control unit that can be battery or mains-operated.

The ONYX's easy-to-use touch screen, ergonomic design, modular RC units, multilingual interface, remote control software, built-in LED light, and temperature and humidity display allow for trouble-free use in all types of test sites.

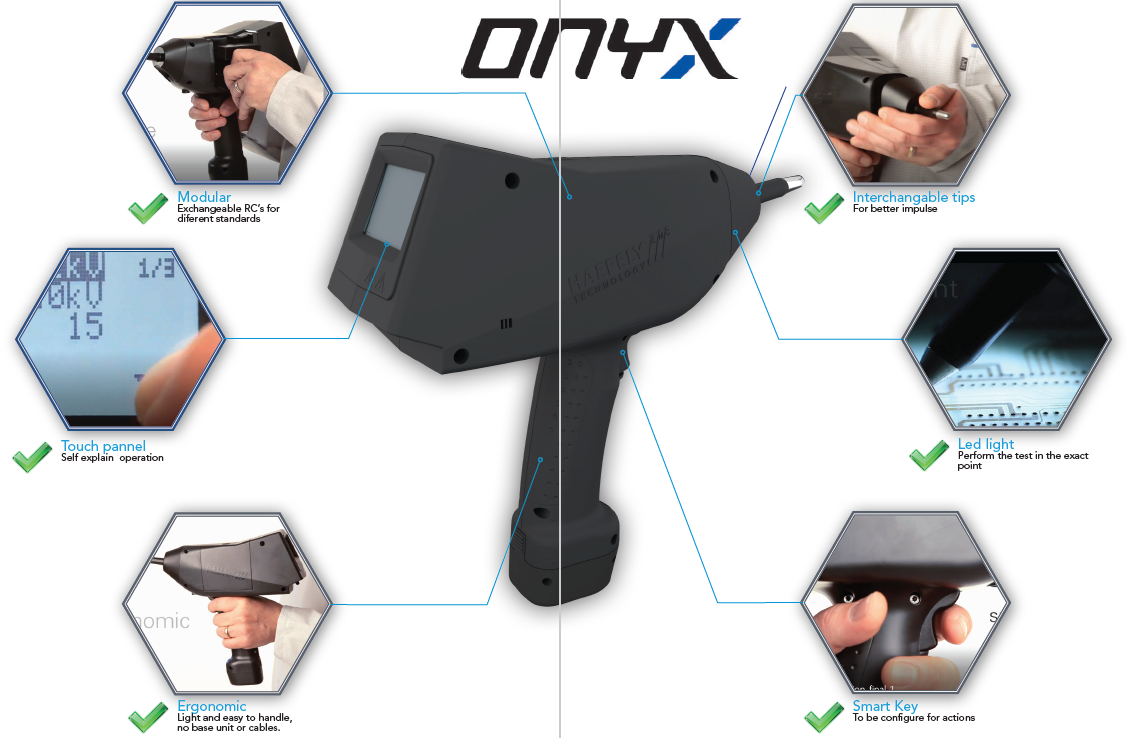

Features

User-defined ‘smart key’ function

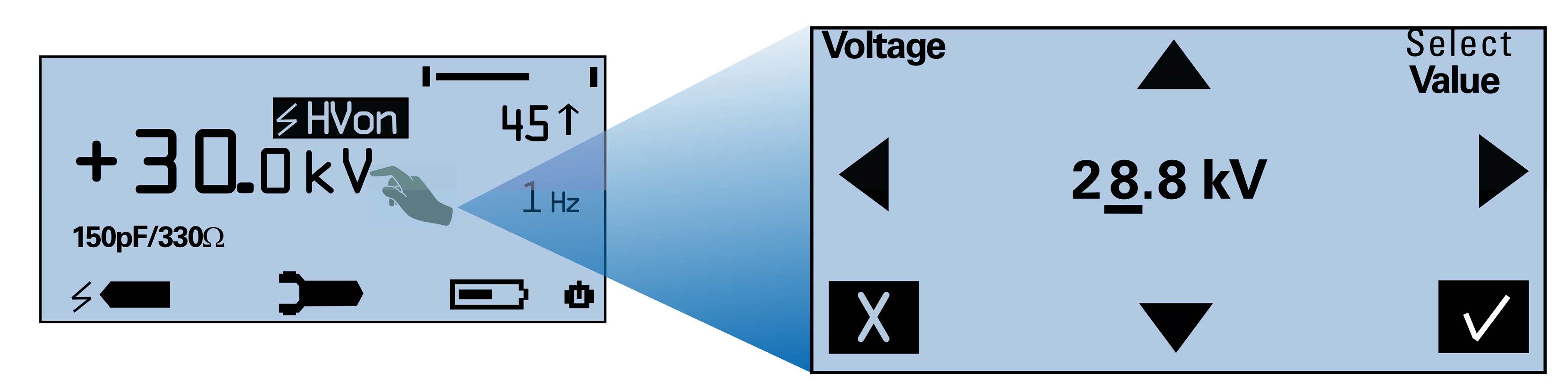

Touch screen interface
Predefined tests according to standards
Multilingual
Define, store, and load tests
Ergonomic all-in-one design (no base unit) and ONYX balancer (optional)
Automatic polarity switching
User-changeable RC networks
Remote control software
Battery or mains operation, long battery life

Summary

The ONYX is a state-of-the-art electrostatic discharge simulator that is available in 16 kV or 30 kV versions. It is the most ergonomic ESD simulator without any additional base control unit that can be battery or mains-operated. The easy-to-use touch screen, ergonomic design, modular RC units, multilingual interface, remote control software, built-in LED light, and temperature & humidity display allow for trouble-free use of the ONYX in all types of test sites. The ONYX also includes a bleeder resistor, which is connected in parallel with the output of the high-voltage power supply circuit. This ensures that the high voltage power supply is completely discharged after each injected pulse to an EUT or if the ESD simulator itself will be turned off by the user (bleed-off). The smart key button, integrated into the trigger button, has various functions that can be defined by the user, including polarity switching, LED light, counter reset, voltage stepping up/down, and others. The ONYX also features a unique self-test, which verifies all of the unit's main components are working correctly. This ensures that accurate and reliable tests are performed whenever the gun is used.

ONYX 16 SPECIFICATIONS
Air discharge voltage	1 .. 30 kV
Cont. discharge voltage	1 .. 30 kV
Discharge repetition	single/0.1/0.2/0.5/1/2/5/10/20 Hz
Discharge counter	1 .. 9999
Default R/C – network	150 pF / 330 Ω
Dimensions W x H x D	290 x 270 x 110 mm
Voltage resolution	100 V steps
Discharge polarity	positive & negative
Operating modes	single & continuous
Battery life	> 16 hrs
Power consumption	17 VA
Weight	1.7 kg

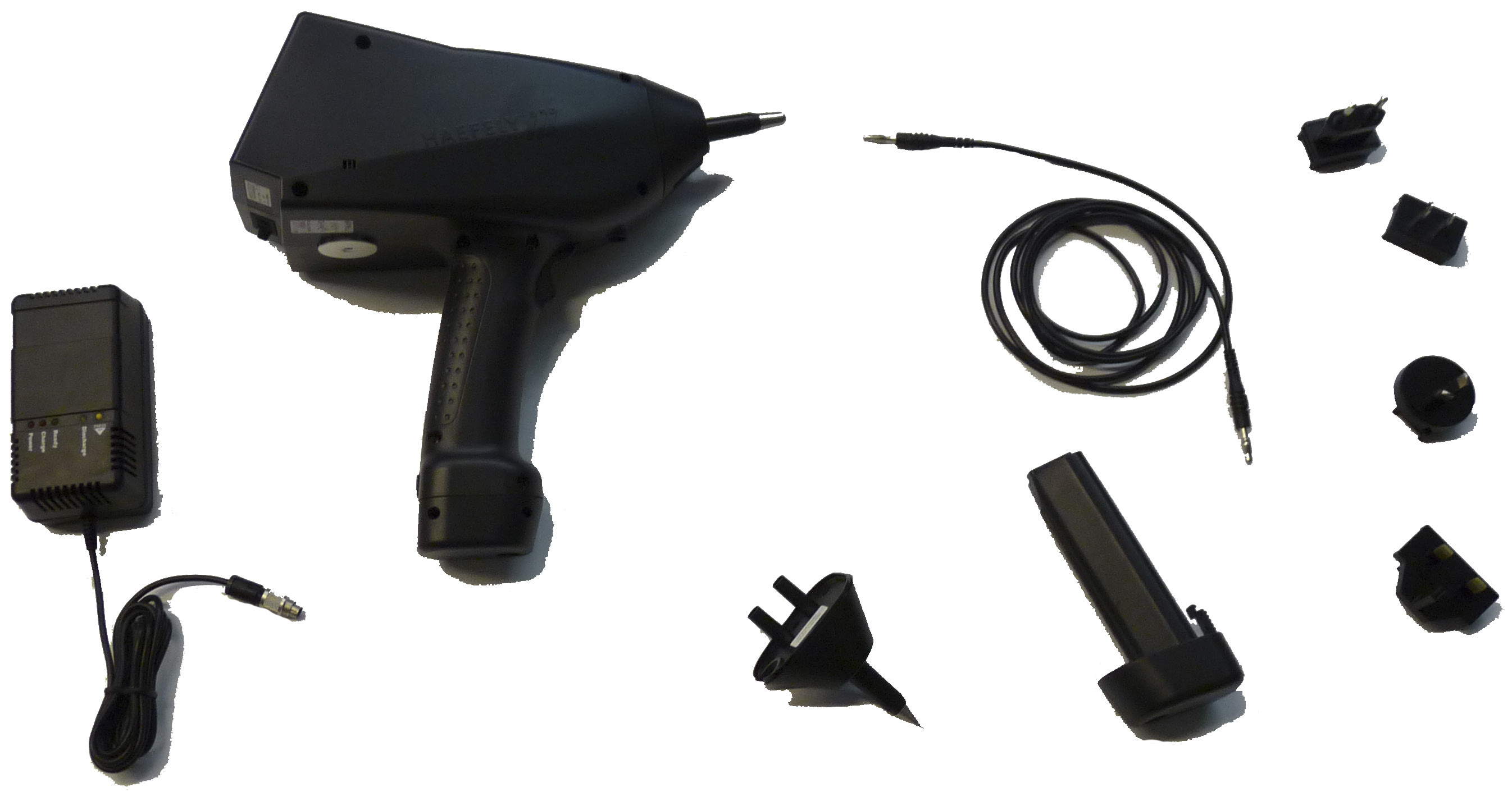

Included accessories

Carrying case
Test tip Contact Discharge & Air Discharge
2 rechargeable battery packs
Ground cable
Battery charger unit, incl. country-specific mains plugs
R/C module 150 pF/330 Ω according to IEC 61000-4-2
Quick start guide, manual on CD, calibration certificate

OPTIONS AND ACCESSORIES

RC Modules for Pulse shape forming.
RC Module 150 pF / 2’000 Ω	ISO 10605	No. 4700531
RC Module 330 pF / 2’000 Ω	ISO 10605	No. 4700532
RC Module 330 pF / 330 Ω	ISO 10605	No. 4700618
RC Module 100 pF / 1’500 Ω		No. 4700622
RC Module 150 pF / 150 Ω		No. 4700620
RC Module 500 pF / 500 Ω		No. 4700619
RC Module 500 pF / 5’000 Ω		No. 4700621
Custom RC Module	50 pF .. 1 nF / 50 Ω .. 5’000 Ω	No. 4700633
Tips
30kV AD Tip	Discharge tip 30 mm diameter for improved air discharge testing up to 30 kV	No. 4700526

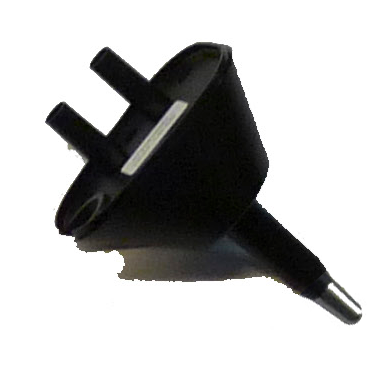

Fast Rise Time Tip	Fast rise Tip Reduces the rise time of the ESD-pulse to 0.3 ns for reliability.	No. 4700527

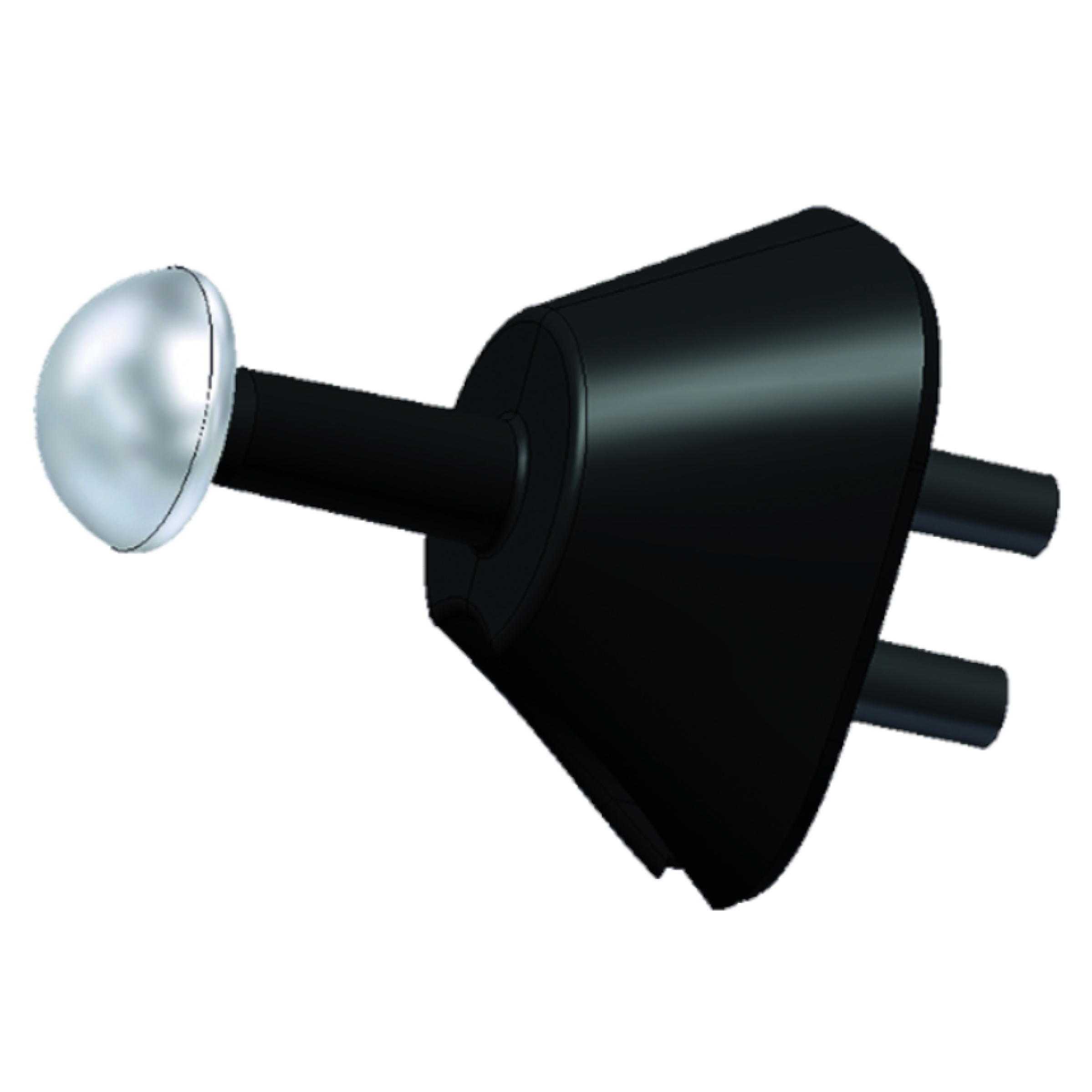

Air Discharge Tip	Discharge tip for air discharge testing up to 25 kV, Included with Onyx

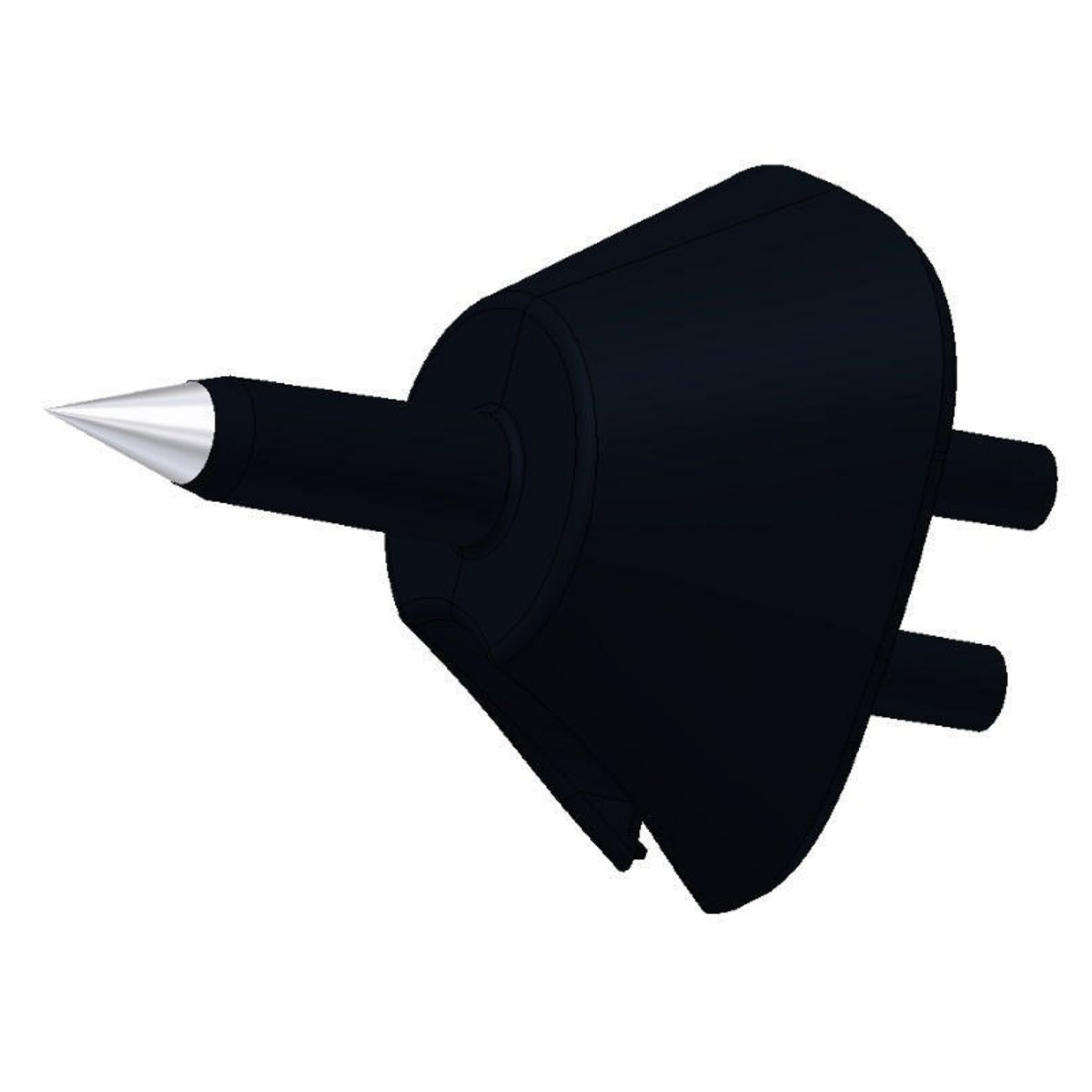

Contact Discharge Tip	Contact Discharge tip Included with Onyx

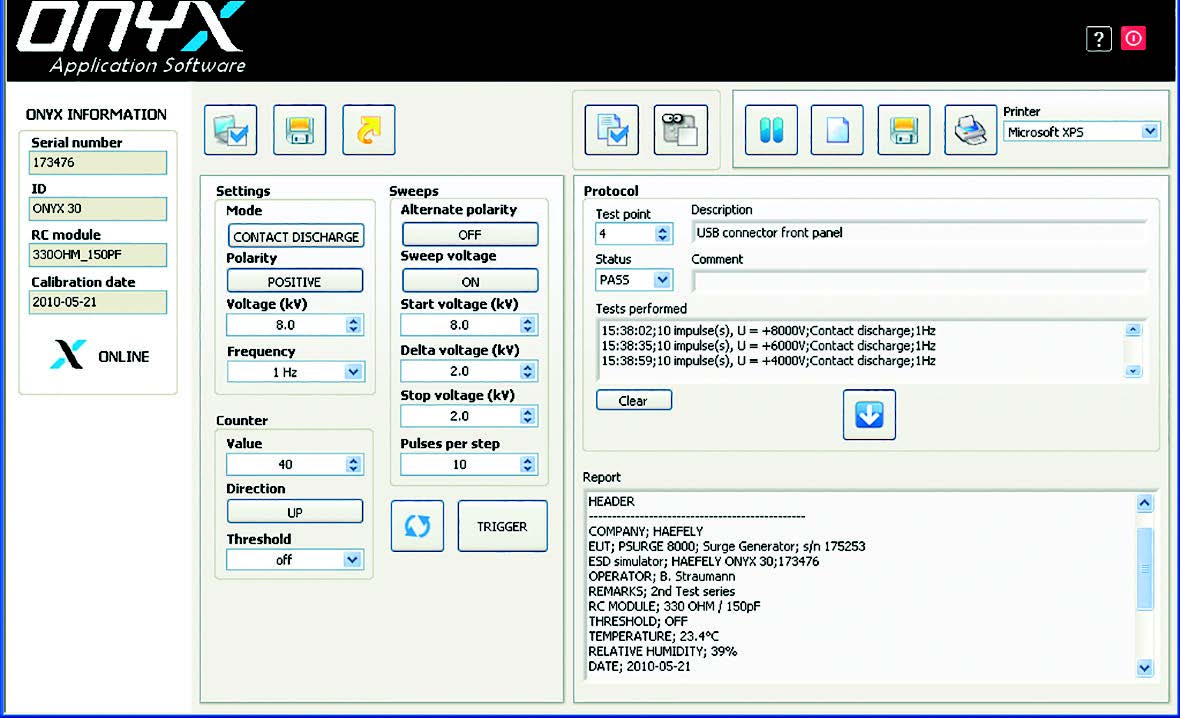

Software	Package of fiber optical RS 232 interface and control & report software	No. 2490216
Others

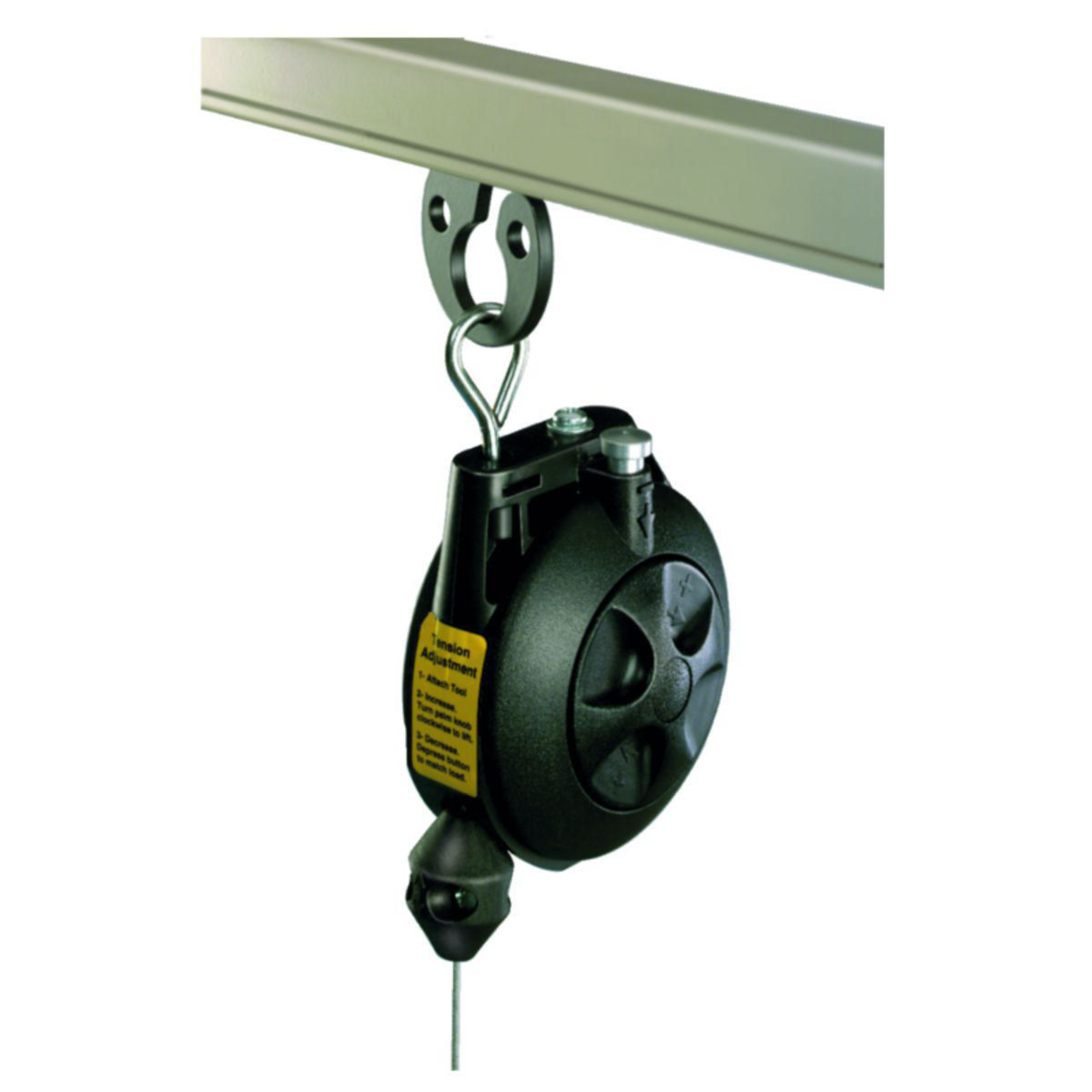

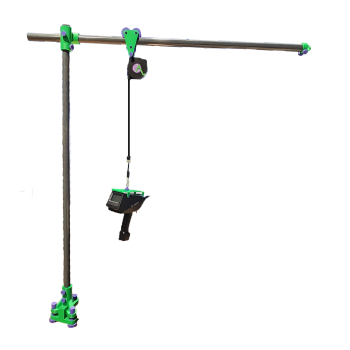

ONYX Balancer	Balancing tool with the mounting system up to 2.3 kg	No. 4781300

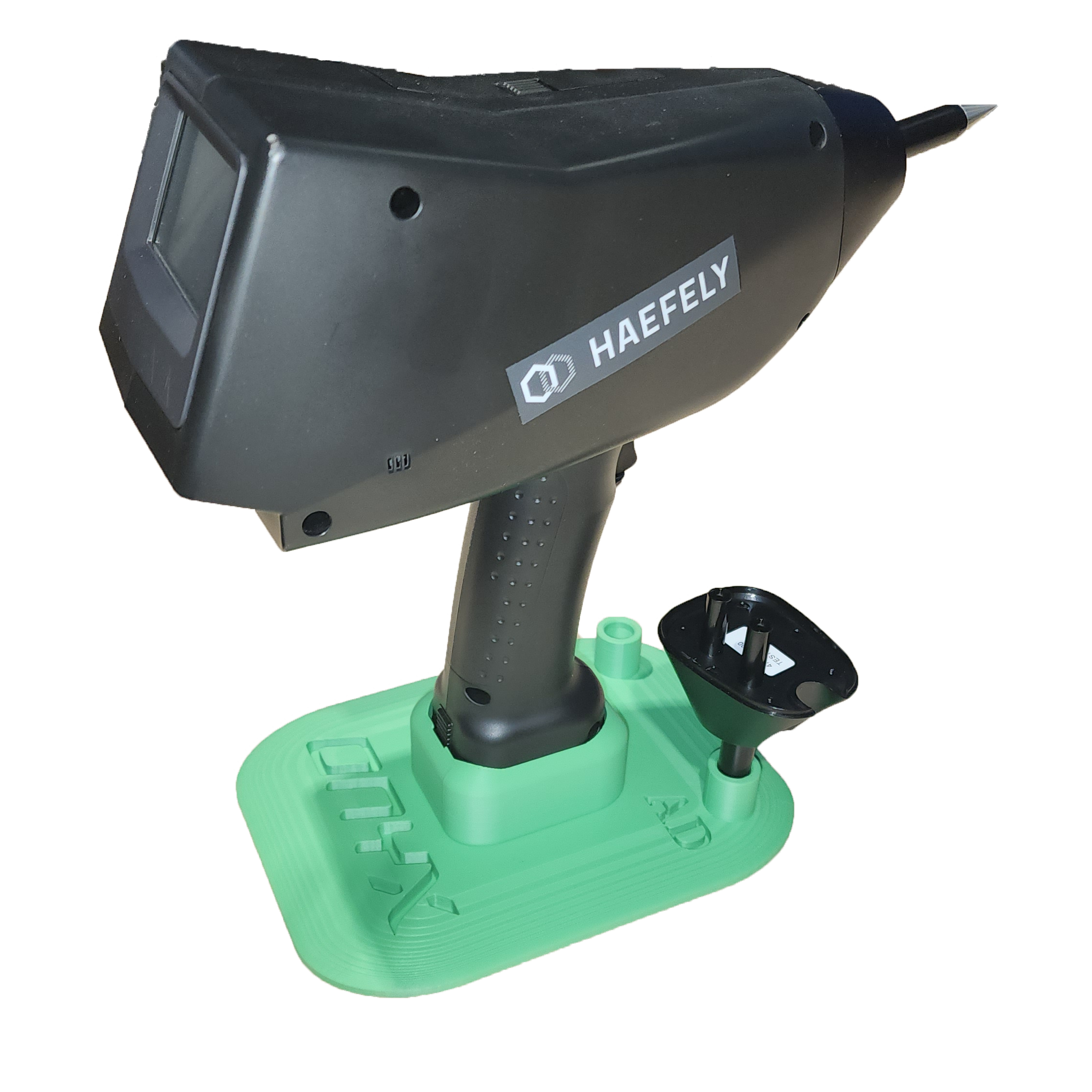

Holder	Plexiglass (PMMA) Holder for ESD Gun ONYX 16 and ONYX 30.

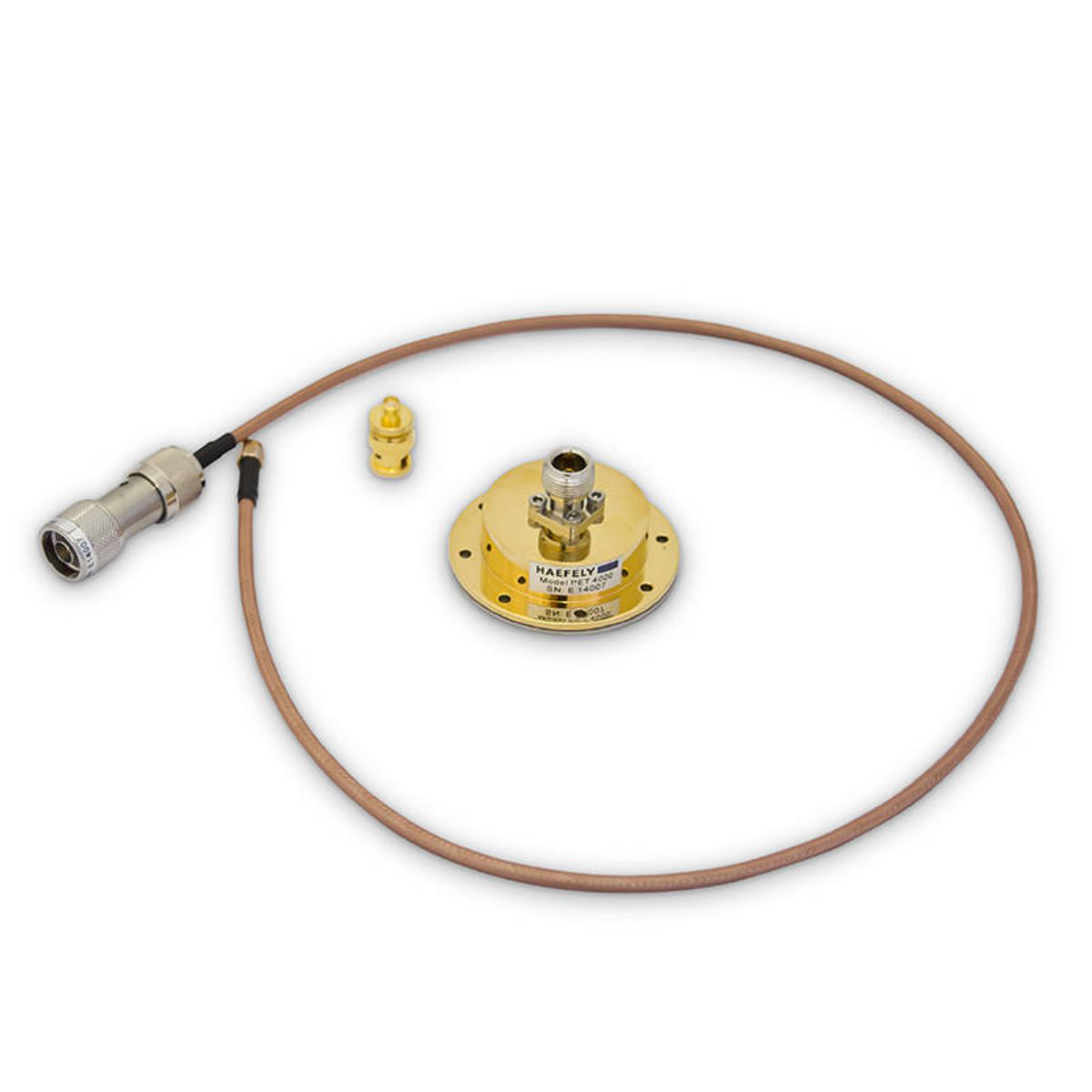

PET 4000	ESD Verification Set For wave shape verification according to IEC/EN 61000-4-2, Included 30dB attenuator and ISO 1736 Accredited Calibration	No. 4700480

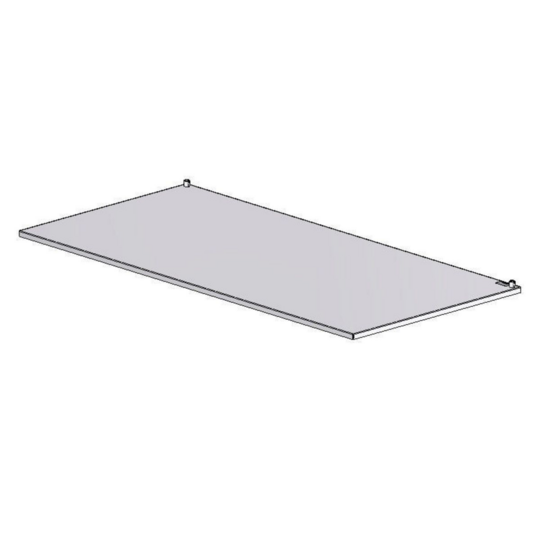

HCP Horizontal coupling plane	1.6 m x 0.8 m for indirect application of the ESD. Includes cable with two integrated 470 kΩ HV-resistors	No. 4700480

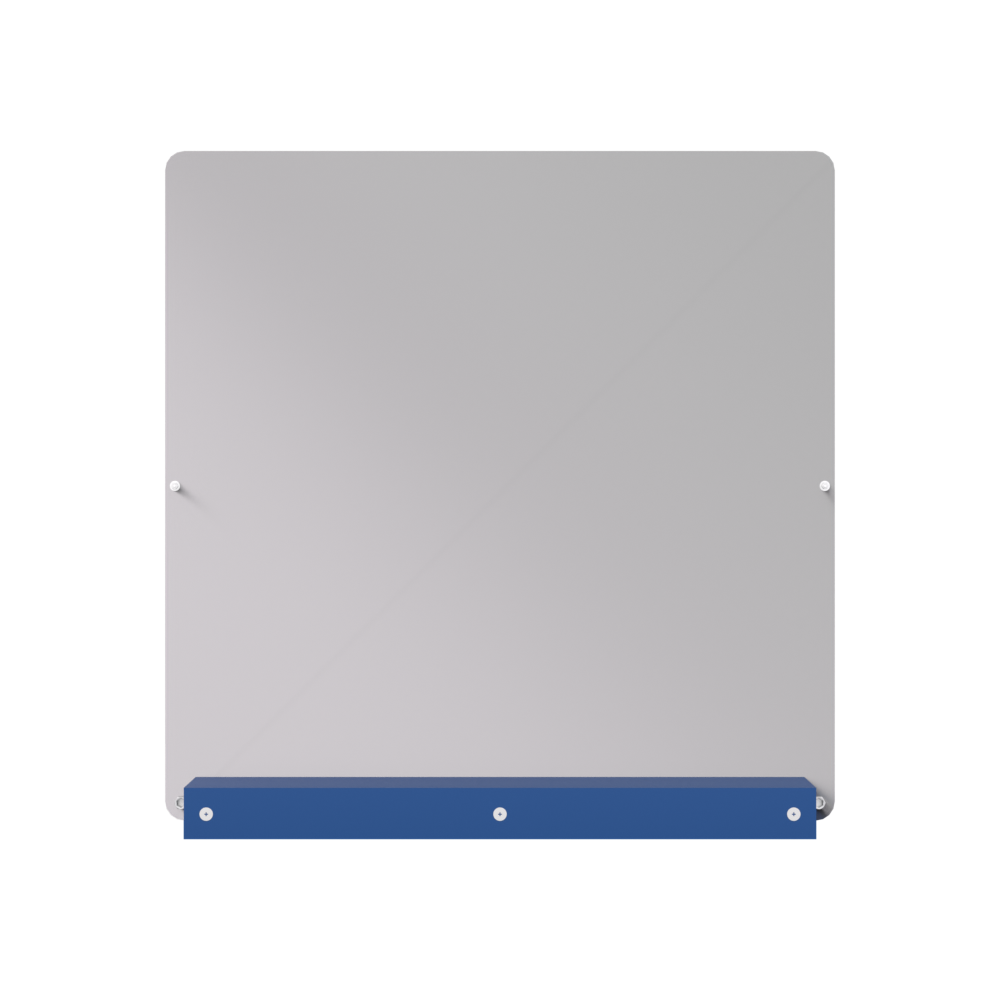

VCP Vertical coupling plane	0.5 m x 0.5 m for indirect application of the ESD. Includes cable with two integrated 470 kΩ HV-Resitors	No. 4700480

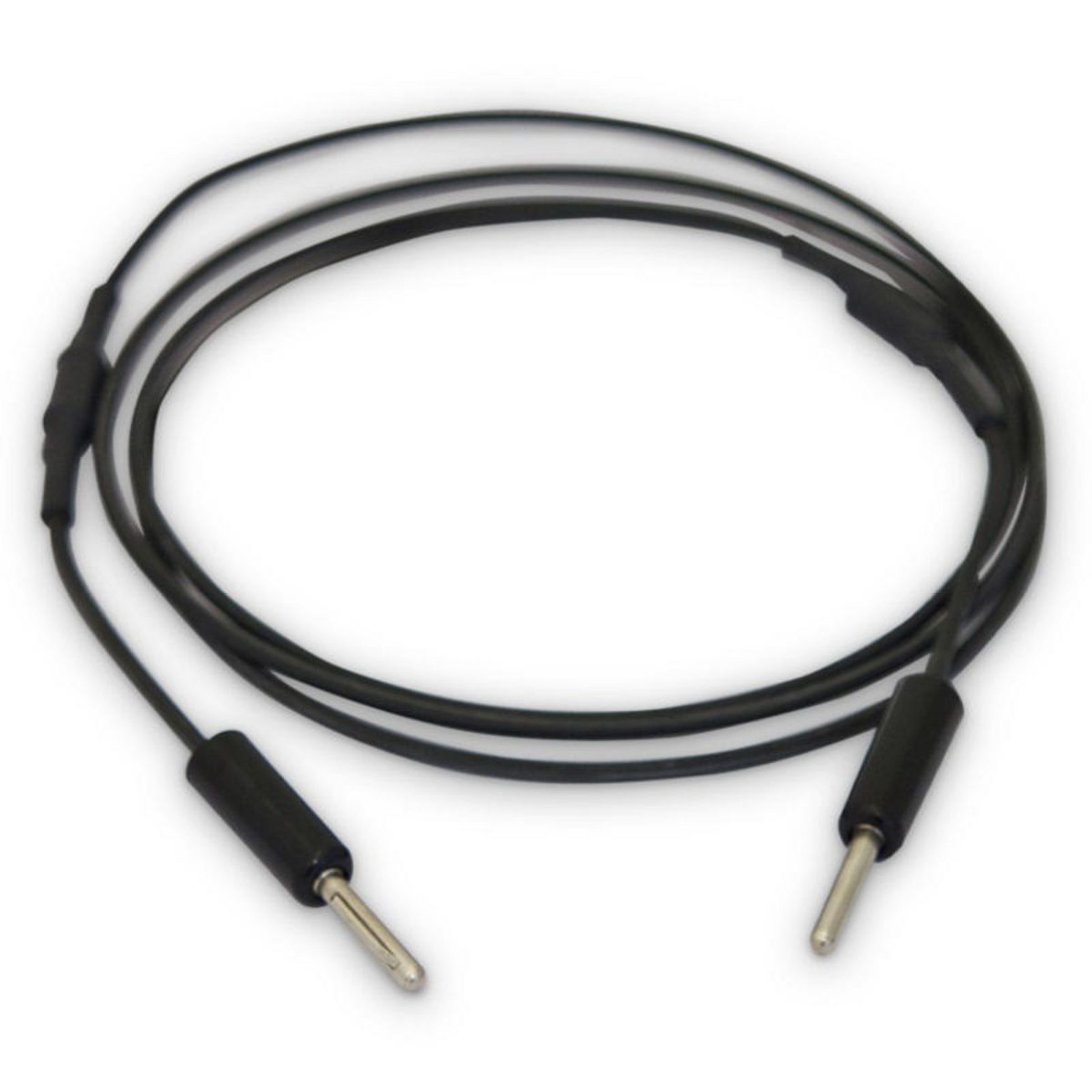

Resistor Cable	2 x 470 kOhm Resistors in Cable (already included in HCP / VCP)	No. 2498101

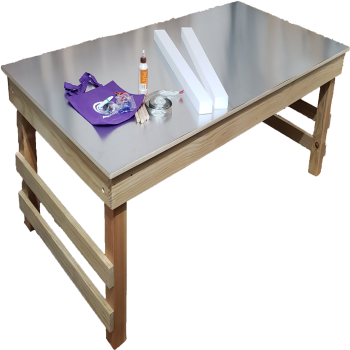

ESD Table Table	1.60 x 0.8 m, made of wood without any metallic parts, as required by IEC 61000-4-2	No. 2495581
Remote ControlAC	Package of fiber optical RS 232 interface and control & report software	No. 2496871

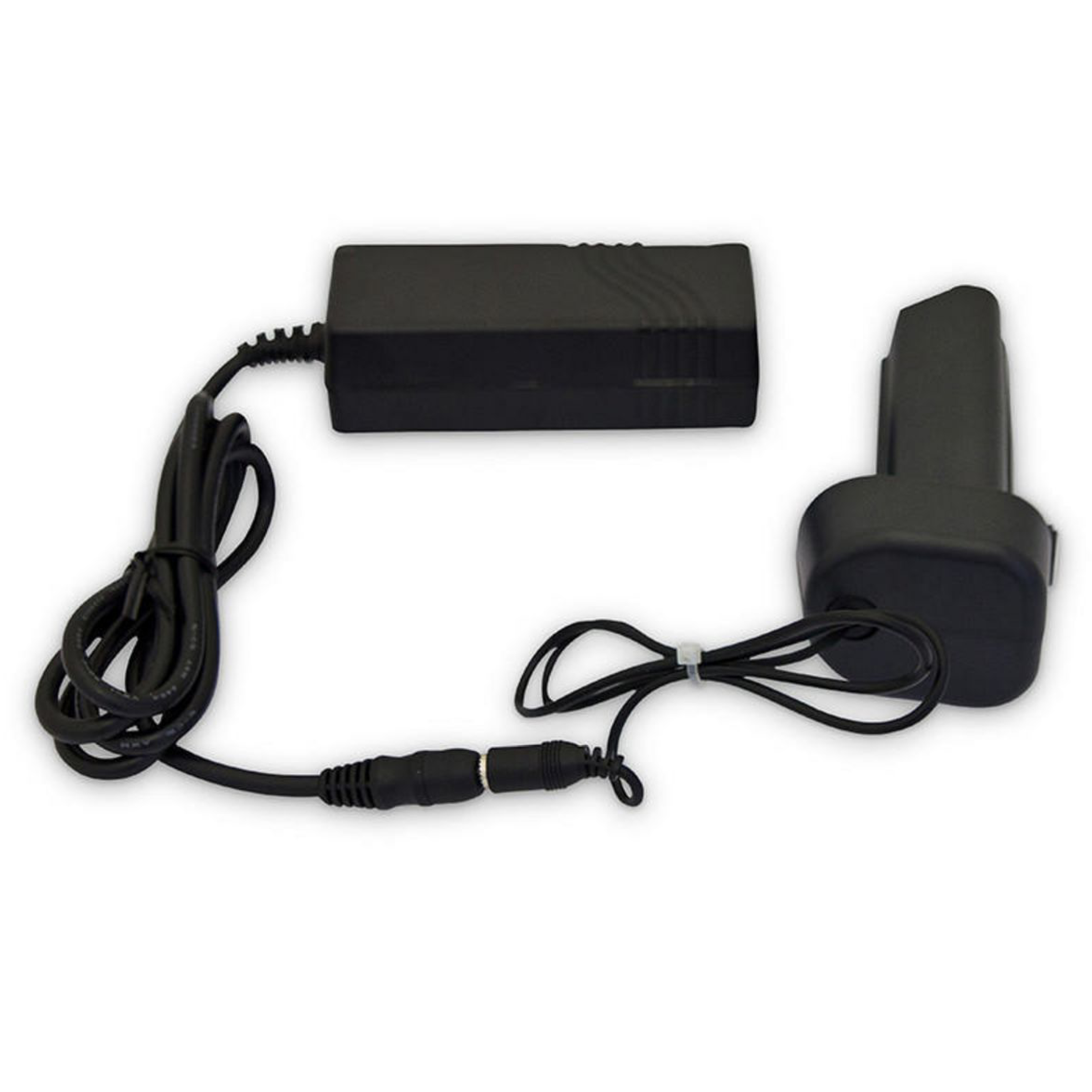

AC Mains Adapter	The power supply replaces the rechargeable battery pack for continuous testing.	No. 2490214

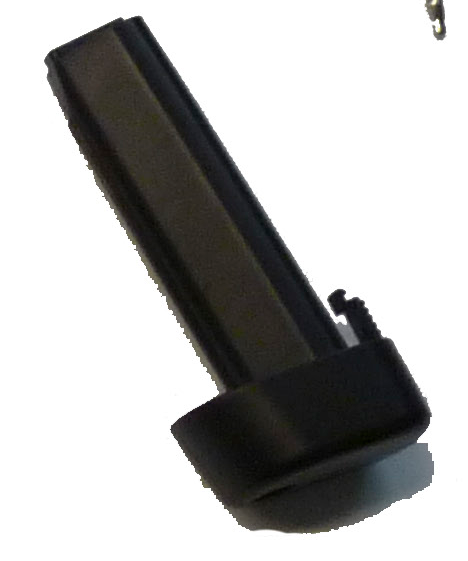

Onyx Battery Pack	Single battery pack for ONYX ESD guns. Qty 2 required for purchase (2 Batteries included with Onyx)	No. 4700585
Factory Calibration is included with the unit
AccCal - ONYX1	ISO 17025 Accredited Calibration of ONYX with 1 RC module	No. 2499981
AccCal - ONYX2	ISO 17025 Accredited Calibration of ONYX with 2 RC module	No. 2499986
AccCal - ONYX3	ISO 17025 Accredited Calibration of ONYX with 3 RC modules	No. 2499987
AccCal - ONYX4	ISO 17025 Accredited Calibration of ONYX with 4 RC module	No. 2499988
