LSProbe 2.0 Variant B, Laser Powered Field Probe, 9 kHz to 26.5 GHz, <1 V/m … >1,000 V/m

LSProbe 2.0 Variant B, Laser Powered Field Probe, 9 kHz to 26.5 GHz, <1 V/m … >1,000 V/m

The LSProbe 2.0 Variant B Field Probe is a high-speed, high-accuracy, and high-dynamic range electric-field probe.

Its standard frequency range is 9 kHz – 26.5 GHz. (Variant B) 1,000 V/m
Best-in-class compensation of linearity, frequency, and temperature guarantees accurate measurements from less than 1 to at least 1,000 V/m.

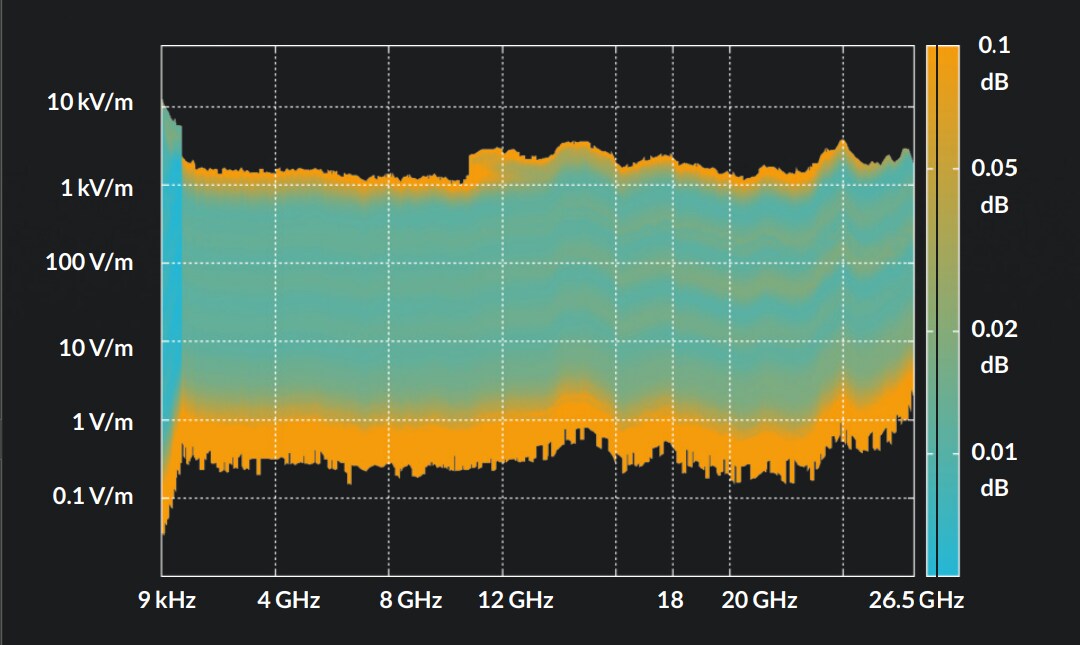

A dynamic range of 100 dB is achieved for many frequencies, enabling Field measurements at more than 10,000 V/m.

PARTNER:

LUMILOOP GMBH

MARKETS:

CATEGORIES:

TEST STANDARDS:

LSProbe Data Sheet

LSProbe Manual

LSProbe Quick Start

LSProbe CI-250+ Quick Start

SPECIFICATIONS

LSProbe 2.0 Variant B, Isotropic Laser Powered Field Probe, 9 kHz to 26.5 GHz, 1,000 V/m

The LSProbe 2.0 Field Probe is a high-speed, high-accuracy, and high-dynamic range electric-field probe.
Its standard frequency range of 9 kHz – 26.5 GHz. (Variant B).
Best-in-class compensation of linearity, frequency, and temperature guarantees accurate measurements from less than 10 to at least 1,000 V/m.
A dynamic range of 100 dB is achieved for many frequencies, enabling field measurements at more than 1,000 V/m.

A single axis, continuously sampling mode, operating at 2 MS/s, can be used for Equivalent Isotropically Radiated Power (EIRP) measurements of IoT products without antenna connectors, in accordance with EN 300 328 and EN 301 893.

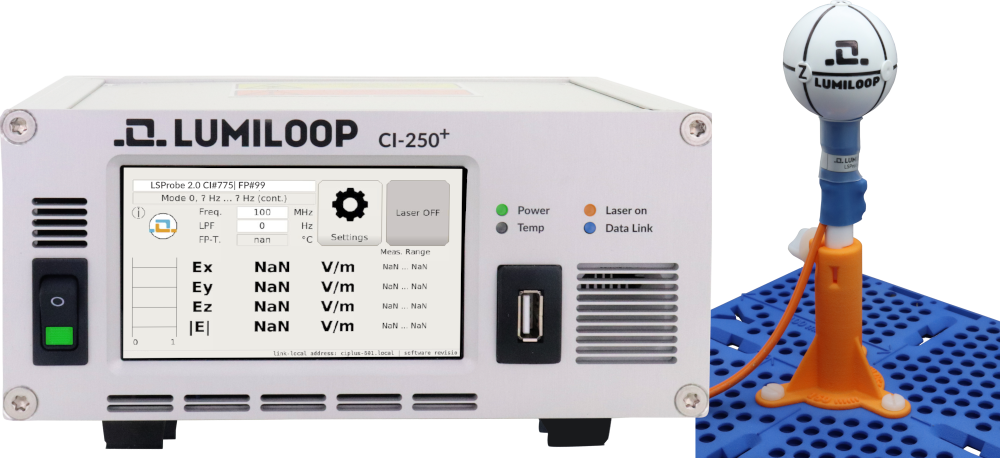

Laser-powered operation eliminates battery recharging and replacement. Extensive in-house calibration data are provided with each field probe and is handled automatically by the LSProbe Software (TCP Server and GUI).
