LUMILOOP LSFrame Multi-Device Systems

Product Integration Frames for LSProbe E-Field Probes and LSPM RF Power Meters

Summary

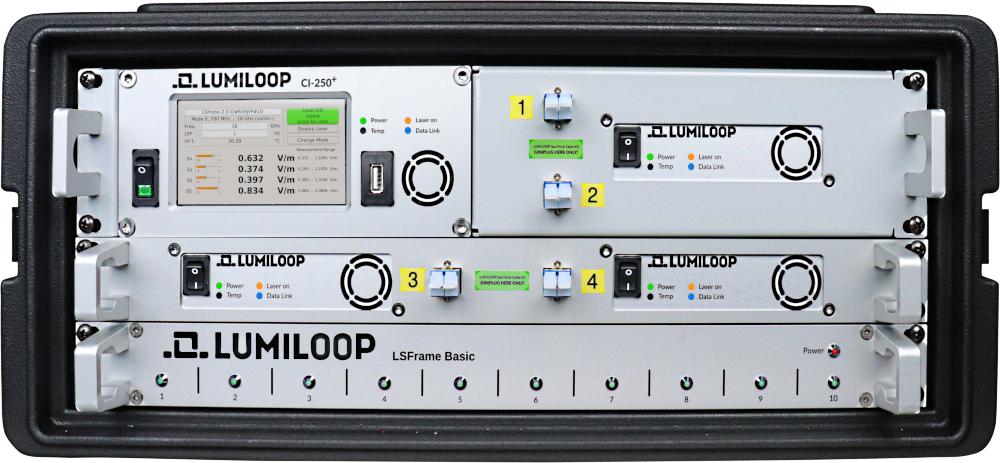

LUMILOOP LSFrame is a modular integration platform designed to mount and operate multiple LUMILOOP devices inside a portable, shallow 19″ rack. LSFrame systems are delivered assembled and tested to support streamlined multi-device operation through a unified software environment—ideal for EMC lab workflows requiring synchronized multipoint measurements.

Key Benefits

• Portable 19″ rack integration for multi-device measurement systems

• Pre-configured system bundles for faster deployment

• USB (LSFrame 1.0 Basic) and Ethernet (LSFrame 2.0) architectures are available

• Supports LSProbe laser-powered E-field probes and LSPM power meters.

• Simplifies multi-device wiring, fiber management, and front-panel routing

Typical Applications and Standards

• IEC 61000-4-3 radiated immunity testing

• IEC 61000-4-21 reverberation chamber testing

• ISO 11451-2 / ISO 11451-5 vehicle/component radiated immunity methods

• ISO 11452-11 reverberation chamber component testing

How to Select the Right LSFrame System

Recommended approach

• 3+ devices: use an LSFrame architecture for synchronization, integrated power distribution, and clean rack integration

• Higher channel count / faster networking: choose LSFrame 2.0 (Ethernet)

If you provide your test method (IEC/ISO) and chamber type (FAR/SAC/reverb), along with the number of field points, we will recommend the appropriate bundle and accessory set.

Pre-Configured System Bundles (Part Numbers)

These are turnkey systems delivered assembled and tested.

System	Interface	Includes (High-Level)	System Part No.	Picture

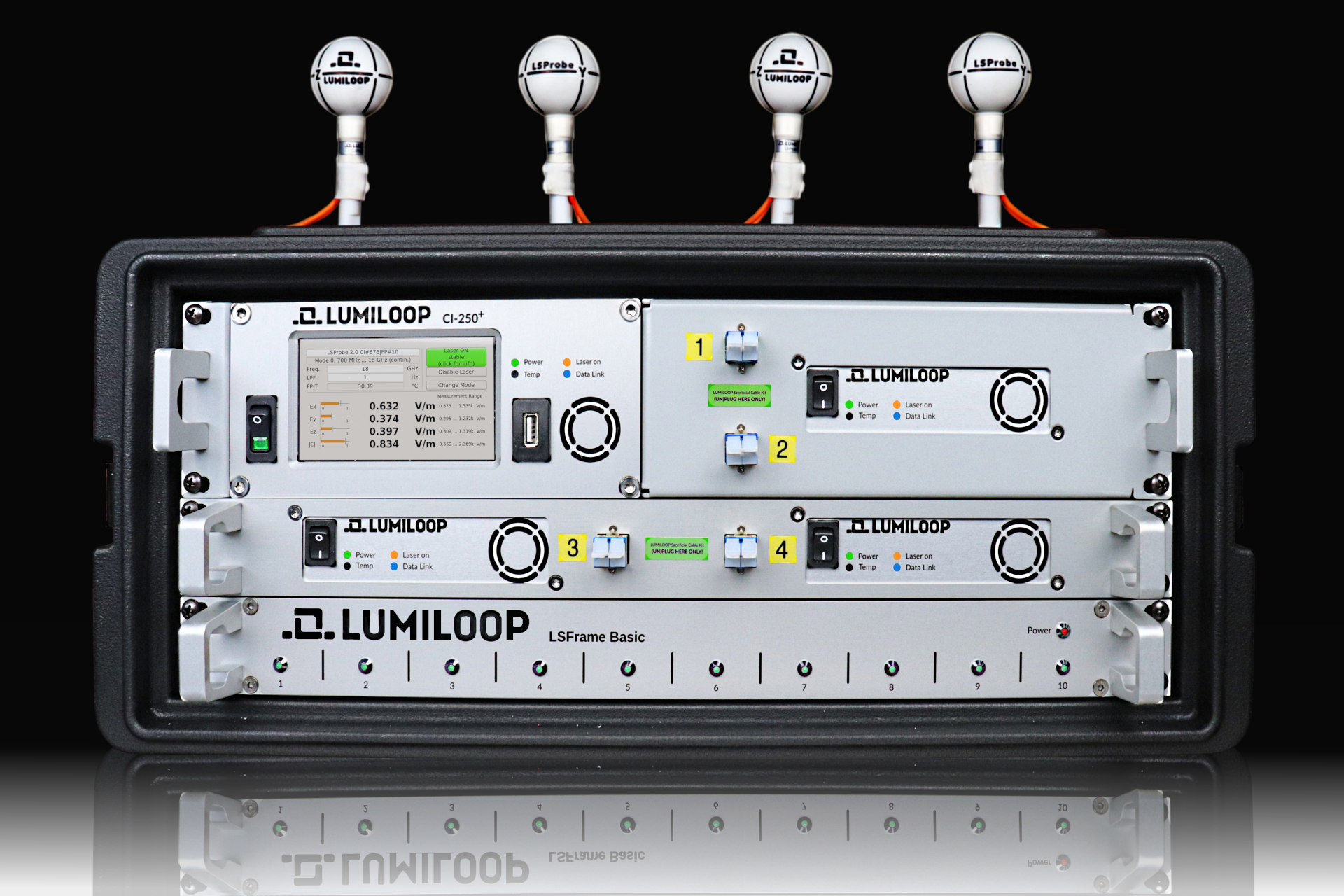

Multiprobe System – 4× LSProbe 1.2 Variant E	USB	4 probes + interfaces + LSFrame 1.0 Basic + case	3101
Multiprobe System – 4× LSProbe 2.0 Variant A	USB	4 probes + interfaces + LSFrame 1.0 Basic + case	3105
Multiprobe System – 4× LSProbe 1.2 Variant E	Ethernet (CI-250+)	4 probes + CI-250+ + 3× CI-250 + rack kit + case	3106
Multiprobe System – 4× LSProbe 2.0 Variant A	Ethernet (CI-250+)	4 probes + CI-250+ + 3× CI-250 + rack kit + case	3108
Multiprobe System – 8× LSProbe 1.2 Variant E	Ethernet (LSFrame 2.0)	8 probes + interfaces + LSFrame 2.0 + panels + case	3110
Multiprobe System – 8× LSProbe 2.0 Variant A	Ethernet (LSFrame 2.0)	8 probes + interfaces + LSFrame 2.0 + panels + case	3109

** For the 16-probe configuration, select 2x of the 8-probe systems **



LSFrame Hardware, Panels, and Rack Kits (Part Numbers)

Core LSFrame Hardware

Component	Description	Part No.	Picture
LSFrame 1.0 Basic (USB)	Integration frame with power + synchronization for multi-device setups (1U)	3001
LSFrame 2.0 (Ethernet)	Ethernet-controlled integration frame (3U)	3002
LSFrame 19″ Case for Product Integration	Portable rack/case used with LSFrame integration	3011



19″ Front Panels

Panel	Use	Height	Part No.	Picture
19″ Front Panel, 10× E2000 Coupler	Holds up to ten duplex E2000 couplers	1U	3021
19″ Front Panel, 2× CI-250	Holds up to two CI-250 (with E2000 couplers)	1U	3022
19″ Front Panel, 2× CI-250 + 1× LSPM	Holds up to two CI-250 and one LSPM	2U	3023
19″ Front Panel, 10× CI-250	Holds up to ten CI-250	4U	3024

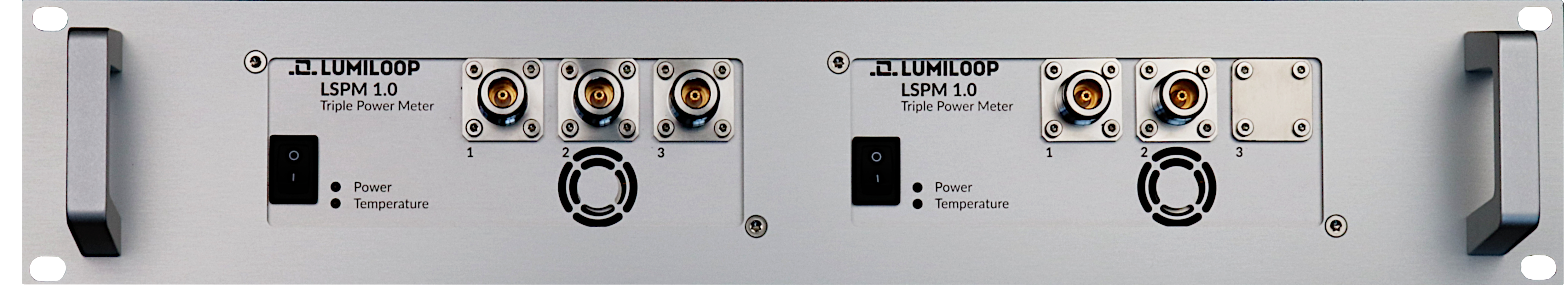

19″ Front Panel, 2× LSPM	Holds up to two LSPM	2U	3025
19″ Front Panel, 1× CI-250+ + blind panel	Mount CI-250+ (includes E2000 coupler)	2U	3026
19″ Front Panel, 1× CI-250+ + 1× CI-250	Mount CI-250+ and CI-250	2U	3027
19″ Front Panel, 1× CI-250+ + 1× LSPM	Mount CI-250+ and one LSPM	2U	3028

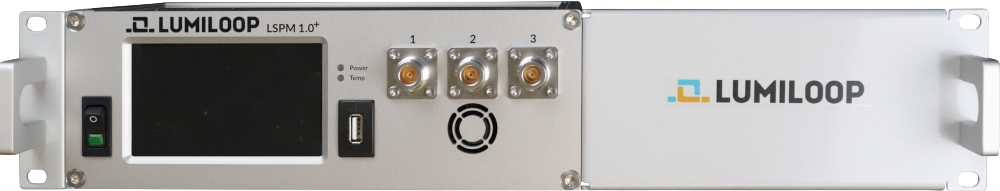

19″ Front Panel, 1× LSPM+ + blind panel	Mount one LSPM+ (LSPM 1.0+ / 2.0+)	2U	3029

Power Meter Links:  LSMP 1.0 | LSPM 2.0 | LSPM 1.0⁺ | LSPM 2.0⁺ | LSPM 1.1 | LSPM 2.1

What Absolute EMC Provides

• North American Sourcing, Quoting, and Service (U.S./Canada/Mexico)

• Configuration review (channel count, front panels, rack layout)

• Practical integration support for EMC labs (test method alignment, accessory planning)

Request a Quote

Email: info@absolute-emc.com
Phone: 703-774-7505

When requesting a quote, include:

• Standard(s) used (IEC 61000-4-3 / ISO 11451 / IEC 61000-4-21 / ISO 11452-11)

• Number of field points (4 vs 8)

• Preferred interface (USB vs Ethernet)

• Any required accessories/spares (fiber lengths, sacrificial kits, cases)

FAQ

Can I expand later from 4 probes to 8 probes?
Yes—many customers start with 4 and expand as test complexity increases. We can propose an expansion BOM using LSFrame components and panels.

Do you offer calibration support?
We can support calibration planning and recommend accredited calibration pathways appropriate to your quality system and test requirements.

Which architecture should I choose (USB vs Ethernet)?
USB-based systems are straightforward for smaller configurations; Ethernet-based LSFrame 2.0 is preferred for higher channel count and faster system control.
