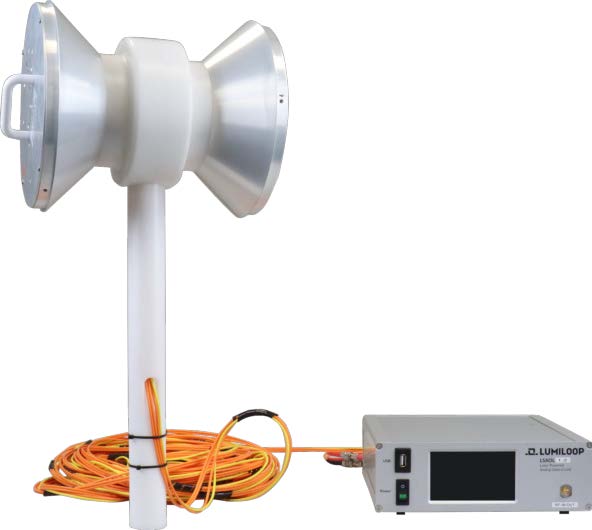

LSAOL 1.2 Laser-Powered Analog Optical Link

LSAOL 1.2 Laser-Powered Analog Optical Link

  • Laser-powered RF over fiber — no batteries required
  • Wideband coverage from 1 MHz to 3 / 4 / 6 GHz
  • Eliminates coaxial cable loss and grounding issues
  • Modular RX/TX configuration with optional LNA
  • >100 m fiber length for EMC chambers and antenna measurements
  • Ethernet control with SCPI for automated test systems



PARTNER:

MARKETS:

CATEGORIES:

TEST STANDARDS:

Data Sheet

SPECIFICATIONS

LSAOL 1.2 Laser-Powered Analog Optical Link

1 MHz to 3 / 4 / 6 GHz | RF over Fiber for EMC & Antenna Measurements

The LUMILOOP LSAOL 1.2 is a laser-powered, wideband analog RF-over-fiber transmission system designed for demanding EMC emission testing, antenna measurements, and RF signal transport applications. By eliminating long coaxial cable runs, grounding issues, and battery-powered front-ends, the LSAOL 1.2 delivers stable, low-loss RF signal transmission up to 6 GHz over fiber-optic links exceeding 100 m.

Laser-powered operation removes the need for local batteries at the front unit, enabling continuous operation with minimal maintenance and excellent long-term stability—ideal for EMC laboratories, test chambers, and measurement environments.

Key Technical Advantages

  • Laser-powered front unit
    No batteries required; eliminates maintenance and downtime associated with battery replacement.

  • Wideband RF over fiber
    Frequency coverage from 1 MHz up to 3 GHz, 4 GHz, or 6 GHz, depending on model.

  • 50 Ω analog transmission
    Preserves amplitude accuracy and dynamic range for emission testing and antenna measurements.

  • Modular RX / TX configuration
    User-selectable signal direction:

    • Receiver mode: Front Unit → Base Unit → EMI receiver or spectrum analyzer

    • Transmitter mode: Base Unit → Front Unit → antenna or DUT

  • Integrated pre-amplifier options
    Configurable with or without LNA to optimize noise figure, gain, and intercept point.

  • Long fiber runs without attenuation penalties
    Optical links support distances >100 m, avoiding coax losses and chamber feedthrough issues.

  • Local and remote control
    Built-in touchscreen plus Ethernet remote control using SCPI commands for automated test systems.

Typical Applications

  • EMC radiated emission measurements

  • Antenna characterization and measurements

  • Long-distance RF signal transport in EMC chambers

  • Elimination of ground loops and common-mode interference

  • Integration into custom antenna bodies or probes

  • RF transmission to or from DUTs in harsh or isolated environments

Available Models & RF Performance



Analog Optical Link Variants

ModelLSAOL 1.2-3GLSAOL 1.2-4GLSAOL 1.2-6G
Low Frequency Cutoff 1 MHz 1 MHz 1 MHz
High Frequency Cutoff 3 GHz 4 GHz 6 GHz
Frequency Response ±1.5 dB ±1.5 dB ±1.5 dB
Input VSWR 1.7 : 1 1.7 : 1 1.7 : 1

Spurious-Free Dynamic Range (SFDR)

Configuration3G4G6G
With LNA (@ 1 GHz / @ HFC) 108 / 104 dB·Hz 105 / 104 dB·Hz 105 / 101 dB·Hz
Without LNA (@ 1 GHz / @ HFC) 109 / 104 dB·Hz 107 / 102 dB·Hz 107 / 100 dB·Hz

RF Link Gain

Configuration3G4G6G
With LNA +20 dB +17 dB +17 dB
Without LNA 0 dB 0 dB 0 dB

Input Third-Order Intercept (IP3)

Configuration3G4G6G
With LNA (@ 1 GHz / @ HFC) 10 / 8 dBm 8 / 8 dBm 8 / 6 dBm
Without LNA (@ 1 GHz / @ HFC) 28 / 25 dBm 27 / 25 dBm 26 / 24 dBm

With or without LNA is a built-time option of the RF receiver module. Single RX or TX RF modules are available on request.

System Specifications

Front Unit

ParameterSpecification
RF Connector SMA female, 50 Ω
Dimensions (W × D × H) 100 × 100 × 50 mm

Base Unit

ParameterSpecification
RF Connector SMA female, 50 Ω
Remote Control Interface Ethernet
Power Supply 100–240 V AC, 50/60 Hz
Dimensions (W × D × H) 250 × 280 × 80 mm

Fiber-Optic Interfaces

FunctionConnector / Type
RF Optical Link 1 × SC/APC, single-mode
Laser Power Supply 2 × FC/PC, multi-mode
Data Communication 1 × ST/PC, multi-mode
Maximum Fiber Length >100 m

Environmental

ParameterSpecification
Operating Temperature 0 °C to 40

Control & Automation

The LSAOL 1.2 can be operated locally via its integrated touchscreen or remotely through Ethernet using SCPI commands, enabling straightforward integration into automated EMC test systems and third-party control software

North American Sales & Support

Absolute EMC LLC is the authorized sales partner for LUMILOOP LSAOL 1.2 systems in the United States, Canada, and Mexico, providing application support, system configuration guidance, and procurement assistance.

Request a Quote

To receive pricing, configuration guidance (LNA vs. non-LNA), fiber length options, or integration support for your EMC lab or antenna measurement setup, contact Absolute EMC today.

Request a Quote | Speak with an EMC Specialist
