NNBM DO160-800, 9 kHz - 400 MHz, 800A, 5µH LISN, DO-160
- Measurement of interference voltage in vehicles, aircraft, and ships
- 9 kHz - 400 MHz
- 1500VDC / 650VAC up to 400Hz
- Max current 700A, (800A limited time)
- Impedance of each path: 5 µH || 50 Ω ±20 %
PARTNER:
CATEGORIES:
TEST STANDARDS:
Data Sheet
SPECIFICATIONS

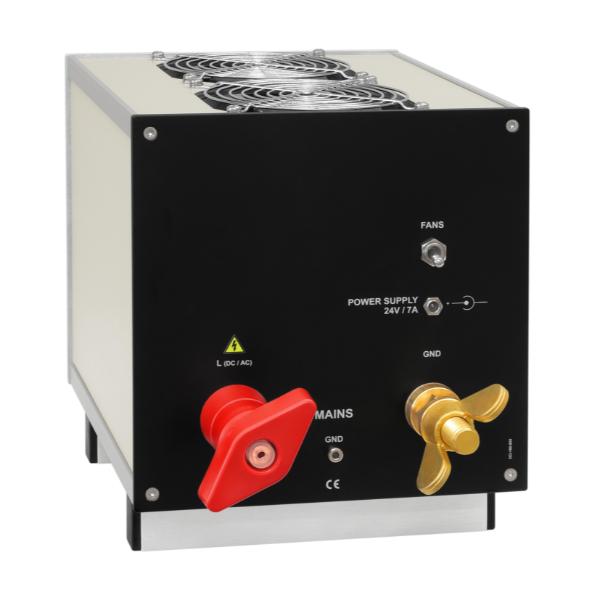

NNBM DO160-800, 9 kHz - 400 MHz, 800A, 5µH LISN, DO-160The main application of the single unsymmetrical path AMN (artificial mains network) NNBM DO160-1500 is the measurement of interference voltage in vehicles, aircraft, and ships in the HF-VHF range 0.01 - 400 MHz. The impedance characteristic is realized according to DO-160 and DEF-STAN-59 5 μH || 50 Ω. The continuous current rating is 200 A, for a short time more than 280 A is possible. The EuT is connected to the wing terminals at the front panel. The main terminals are on the backside. The 10 μF Capacitor for decoupling is built into this LISN
|
