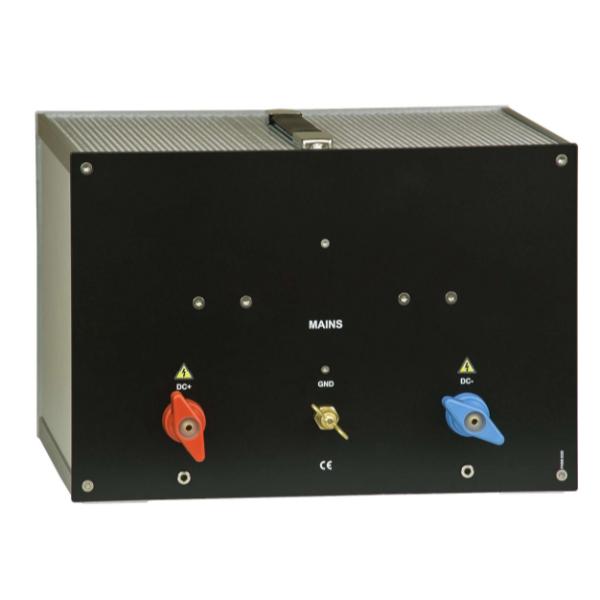

PVSM 8320, Symmetrical DC-network and LISN
- Symmetrical DC-network and LISN (Line Impedance Stabilization Network)
- Current rating: 25 A (40 A Limited Time)
- Max Voltage 250 VDC
- DC Resistance 70 mΩ
Data Sheet
SPECIFICATIONS
PVSM 8320, DC Network and (LISN)The symmetrical DC-network and LISN PVSM 8320 simulates the conditions at the ports of a single photovoltaic module or a string of PV-modules. This Line Impedance Stabilisation Network (LISN) is designed according to IEC 63027 Annex B.O respectively.
|
