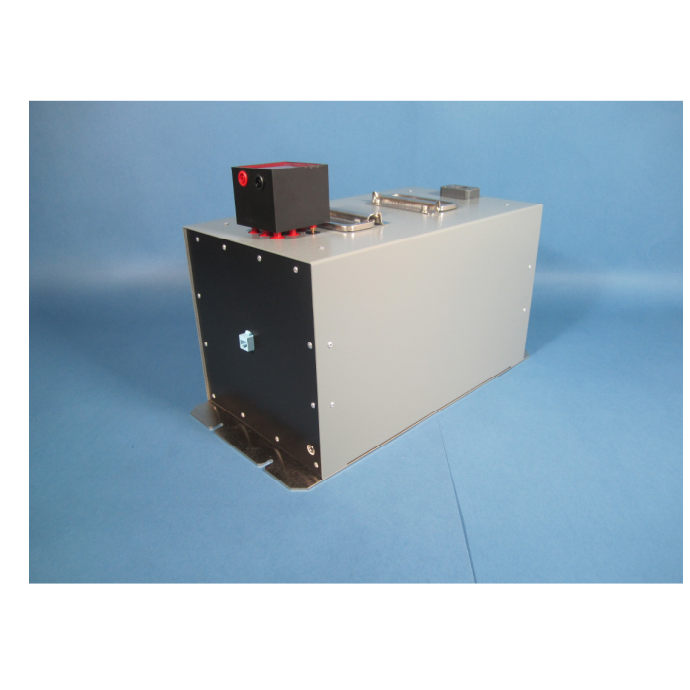

PCD-1000-4 - 4 kV Gigabit Ethernet and PoE Surge CDN

Combined surge coupling and decoupling for active Gigabit Ethernet and PoE.

The PCD-1000-4 high-speed data-line CDN applies common-mode 1.2/50 us - 8/20 us surges to balanced telecommunications circuits up to 1000Base-T while decoupling auxiliary equipment. It supports IEEE 802.3af PoE and non-PoE configurations, with a maximum 4 kV surge test voltage.

PARTNER:

HAEFELY EMC

MARKETS:

CATEGORIES:

TEST STANDARDS:

IEC/EN 61000-4-5 ,

Select Options/Sizes:

PCD-1000-4 Datasheet 600136 Rev C

SPECIFICATIONS

HAEFELY EMC ACCESSORIES

PCD-1000-4 - 4 kV Gigabit Ethernet and PoE Surge CDN

Combined surge coupling and decoupling for active Gigabit Ethernet and PoE.

Overview and application

The PCD-1000-4 high-speed data-line CDN is documented by the supplied Fischer F-130814-1004-4 datasheet. It applies common-mode 1.2/50 us - 8/20 us surges to balanced telecommunications circuits up to 1000Base-T while decoupling auxiliary equipment. It supports IEEE 802.3af PoE and non-PoE configurations, with a maximum 4 kV surge test voltage.

External resistor boxes configure common-mode injection for one, two or four pairs. Confirm the required boxes and cable set when ordering; the supplied sheet does not give a complete packing list.
No spark gaps are used for surge coupling or AE-port voltage limiting, according to the manufacturer.
Isolation inductance is sized to avoid saturation at the rated surge level.
Each CDN is measured with a Fluke DTX-1800 to demonstrate CAT 6 Permanent Link performance. The datasheet references TIA-568-C and ISO 11801:2002 measurement requirements.
The supplied source does not establish support for IEEE 802.3at/bt PoE or data speeds above 1 Gbit/s.

Specifications follow the user-supplied Fischer F-130814-1004-4 datasheet (600136 Rev C). PCD-1000-4 is the Haefely accessory designation.

Technical specifications

Specification	Details
Source model	Fischer Custom Communications F-130814-1004-4; supplied as the source for PCD-1000-4
Function	Combined surge coupling and decoupling
Coupling mode	Common-mode injection with respect to CDN chassis via external resistor boxes
Circuit configurations	1 pair, 2 pairs or 4 pairs
Maximum data speed	1000Base-T
Maximum telecom operating voltage	65 V DC
Maximum telecom operating current	1 A DC; rated for Power over Ethernet
PoE support	IEEE 802.3af; PoE and non-PoE operation
Telecom connections	RJ-45; CAT 6A connectors at EUT and AE ports
Surge-generator connection	Multi-Contact safety socket
Maximum surge voltage	4.0 kV, 1.2/50 us, EN 61000-4-5
Maximum surge current	150 A, 8/20 us, EN 61000-4-5
EUT-to-AE surge isolation	Minimum 50 dB voltage and current over the stated range of EUT/AE load configurations
Dimensions (L x W x H)	40 x 23 x 24 cm
Weight	8.0 kg
Transmission performance	CAT 6 Permanent Link, measured using Fluke DTX-1800
Typical NEXT at 250 MHz	45 dB
Typical PS NEXT at 250 MHz	40 dB
Typical ACR-F at 250 MHz	30 dB
Typical PS ACR-F at 250 MHz	30 dB
Typical return loss at 250 MHz	19 dB
Resistor matching	Normally better than 0.1%, per manufacturer

Included components

Surge CDN (F-130814-1004-4 source model)
External test data demonstrating EUT surge delivery and AE-port residual voltage/current

Standards and system configuration

EN 61000-4-5 surge test method.
IEEE 802.3af PoE support; CAT 6 Permanent Link performance.

Compare data-line coupling and decoupling networks

Product	Function	Signal circuit	Test waveform	Key ratings
PCD 121	Coupling	Symmetrical; 2 pairs / 4 wires	Combination wave	6.6 kV; selectable gas arrestor / ABD coupling
PCD 126A	Coupling	4 wires; asymmetrical surge; symmetrical or asymmetrical ring wave	Combination wave; 100 kHz ring wave	6.6 kV; capacitors, ABDs, gas arrestors or direct
DEC 5	Decoupling	Symmetrical; 4 wires	Combination, telecom and ring wave	6.6 kV; 20 mH compensated; 1 A
DEC 6	Decoupling	Symmetrical; 4 wires	Combination, telecom and ring wave	6.6 kV; 200 ohm; 0.1 A
DEC 7	Decoupling	Asymmetrical; 4 wires	Combination and ring wave	6.6 kV; 20 mH uncompensated; 1.5 A
PCD-1000-4	Coupling + decoupling	Balanced Ethernet; 1 / 2 / 4 pairs; 1000Base-T	Combination wave	4 kV / 150 A surge; 65 V DC / 1 A line; IEEE 802.3af PoE

Combination wave: 1.2/50 us voltage and 8/20 us current. Telecom wave: 10/700 us voltage and 5/320 us current. Ratings depend on the selected coupling/protection elements; review each product specification before configuring the system.

PCD 121 and PCD 126A provide coupling only. DEC 5, DEC 6 and DEC 7 provide decoupling/protection only. PCD-1000-4 combines both functions for high-speed Ethernet. IP4B is an EFT/burst clamp and is intentionally excluded from this matrix.
