• CG50/500ML & MLA, 50 kHz - 30 MHz, 50 and 500 kHz Steps, Conducted Comb Generator
  • CG50/500ML & MLA, 50 kHz - 30 MHz, 50 and 500 kHz Steps, Conducted Comb Generator
  • CG50/500ML & MLA, 50 kHz - 30 MHz, 50 and 500 kHz Steps, Conducted Comb Generator
  • CG50/500ML & MLA, 50 kHz - 30 MHz, 50 and 500 kHz Steps, Conducted Comb Generator
  • CG50/500ML & MLA, 50 kHz - 30 MHz, 50 and 500 kHz Steps, Conducted Comb Generator

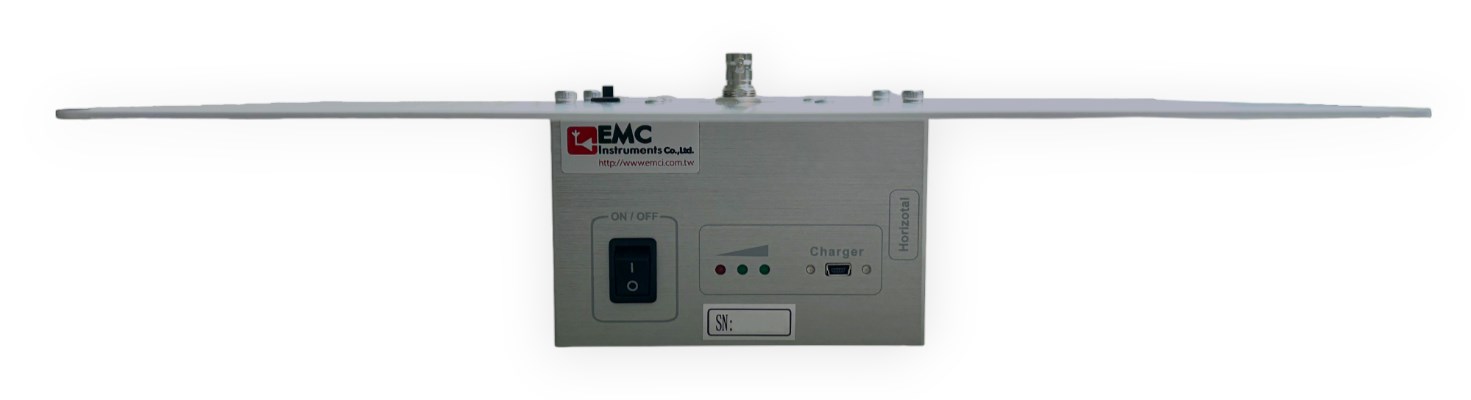

CG50/500ML & MLA, 50 kHz - 30 MHz, 50 and 500 kHz Steps, Conducted Comb Generator

  • Broad verification coverage: 50 kHz to 108 MHz for conducted-emissions setups.
  • Radiated reference output from 50 kHz to 30 MHz when used with the monopole antenna.
  • Selectable 50 kHz and 500 kHz comb spacing for different receiver spans and measurement tasks.
  • Internal rechargeable battery supports portable use and reduces external-cable influence during checks.
  • 50 ohm BNC female output simplifies connection to common EMC measurement accessories.
  • Useful for daily or periodic chamber, receiver, cable, LISN, and accessory verification.

PARTNER:

MARKETS:

CATEGORIES:

TEST STANDARDS:

CG50-500ML Data Sheet

CG50-500MLA Data Sheet

SPECIFICATIONS

CG50/500 Comb Generator Series



Choose the correct model

Product

Best fit

Frequency coverage

Antenna configuration

CG50/500ML

Conducted-emissions verification plus monopole radiated checks

CE: 50 kHz-108 MHz; RE: 50 kHz-30 MHz

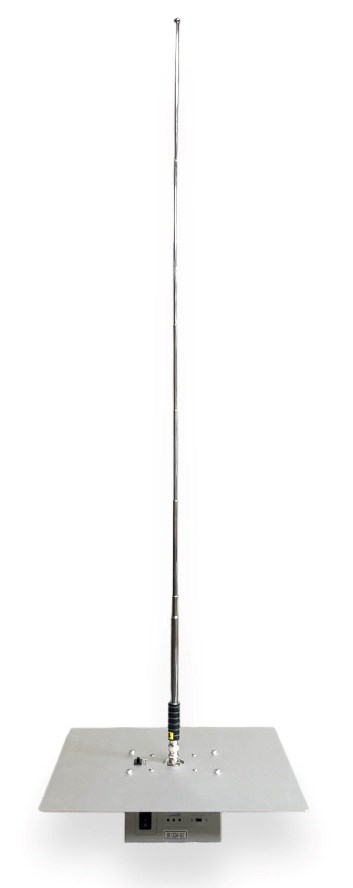

Monopole antenna and ground plane

CG50/500MLA

Low-frequency radiated verification using two antenna types

RE: 50 kHz-30 MHz

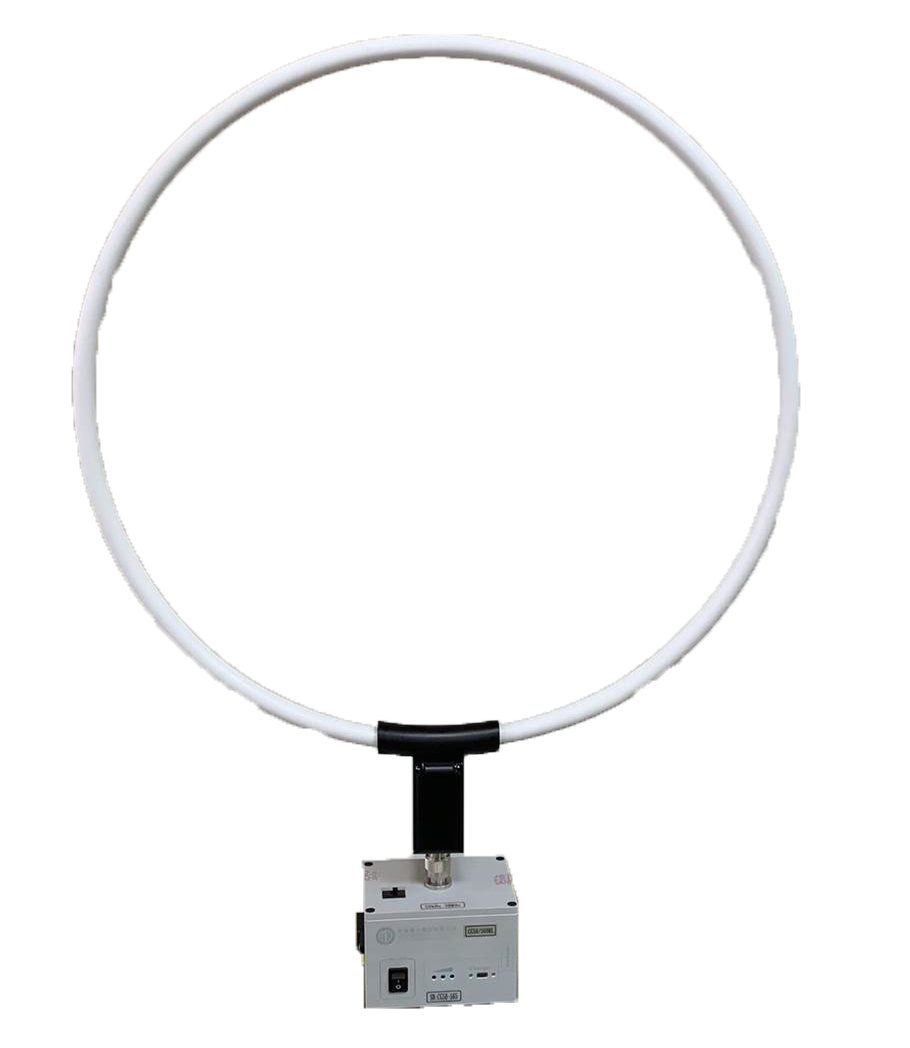

Monopole, ground plane and 500 mm loop antenna



 Key selling points

  • Broad verification coverage: 50 kHz to 108 MHz for conducted-emissions setups.
  • Radiated reference output from 50 kHz to 30 MHz when used with the monopole antenna.
  • Selectable 50 kHz and 500 kHz comb spacing for different receiver spans and measurement tasks.
  • Internal rechargeable battery supports portable use and reduces external-cable influence during checks.
  • 50 ohm BNC female output simplifies connection to common EMC measurement accessories.
  • Useful for daily or periodic chamber, receiver, cable, LISN, and accessory verification.



Both models at a glance

Both models generate a stable harmonic reference with selectable 50 kHz or 500 kHz spacing. The main selection question is whether the laboratory needs conducted-emissions verification through a LISN or dual-antenna radiated verification with both a monopole and a loop.



Complete model comparison

Specification CG50/500ML CG50/500MLA
Primary application Conducted and low-frequency radiated verification Low-frequency radiated verification
Conducted-emissions range 50 kHz to 108 MHz through an AC/DC LISN Not specified for conducted-emissions use
Radiated-emissions range 50 kHz to 30 MHz 50 kHz to 30 MHz
Frequency step Selectable 50 kHz or 500 kHz Selectable 50 kHz or 500 kHz
Included antenna configurations Monopole antenna Monopole antenna and 500 mm loop antenna
Output impedance 50 ohms 50 ohms
Output connector BNC female N female
Charging input USB Mini, +5 VDC USB Mini, +5 VDC
Typical charging time 8 to 10 hours 8 to 10 hours
Typical operating time 16 hours 16 hours
Generator dimensions 119 x 81.5 x 85.5 mm 119 x 81.5 x 85.5 mm

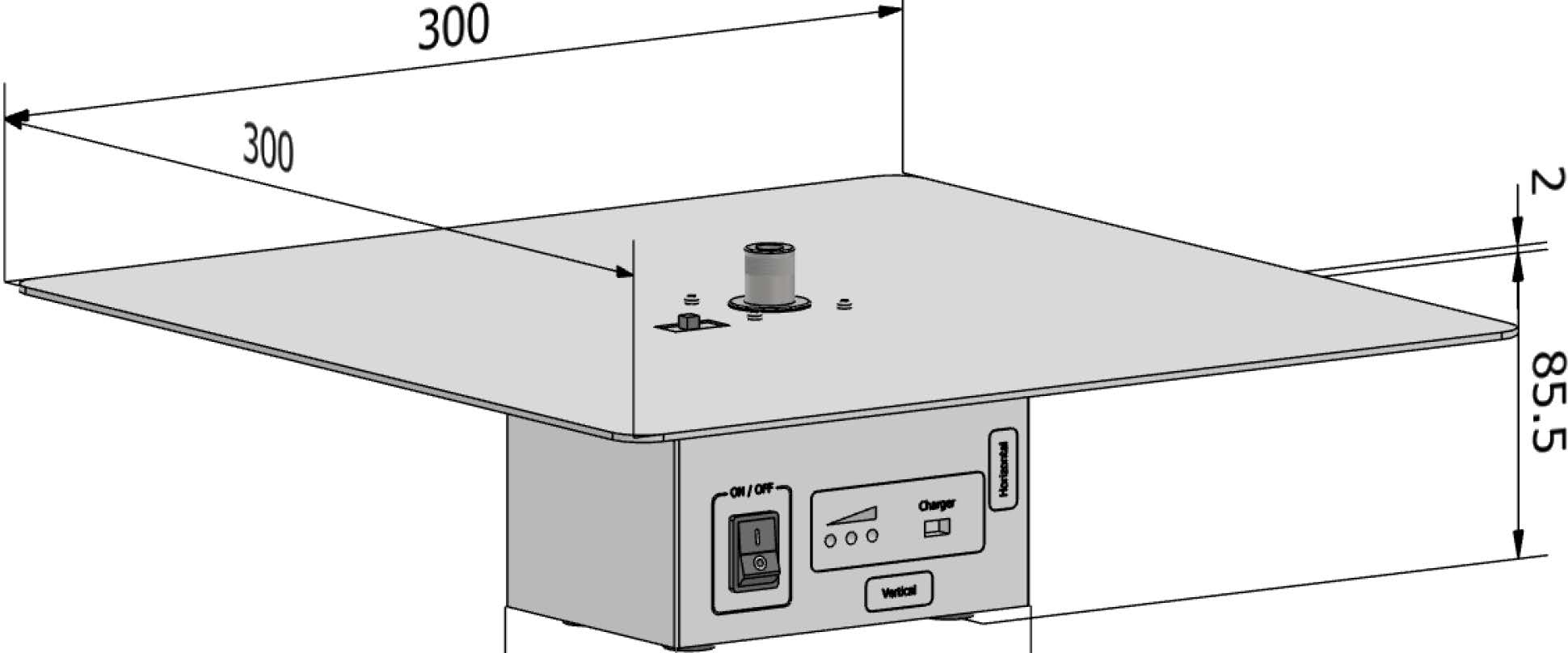

Ground-plane dimensions 300 x 300 x 2 mm 300 x 300 x 2 mm
Loop antenna inner diameter Not included 500 mm
Net weight 1 kg 1 kg



 Recommended applications

Application How the CG50/500ML is used
Conducted emissions verification Inject a repeatable broadband reference through an AC or DC LISN to confirm the signal path, receiver response, and setup repeatability.
Radiated emissions verification Use the monopole antenna and ground plane for reference checks from 50 kHz to 30 MHz.
System troubleshooting Isolate changes in cables, attenuators, LISNs, receivers, adapters, or test configuration.
Routine quality checks Record reference traces and compare them over time to identify drift or unexpected setup changes.
Training and demonstrations Provide a visible, repeatable harmonic pattern for receiver setup and measurement-process training.



Included components

Component

CG50/500ML

CG50/500MLA
Comb generator Included Included
Monopole antenna Included Included
Ground plane Included Included
500 mm loop antenna Not included Included
USB cable and charger Included Included
Accessory set and storage box Included Included

Choose the CG50/500ML when conducted-emissions verification is required. Choose the CG50/500MLA when the priority is comparing both loop- and monopole-based radiated measurement paths.
