POG-CS116 - CS116 Test Generator, Dampened Wave

Highlights of the CS116 Damped Sinusoid Generator

  • MIL-STD 461 CS116 Compliant: Meets stringent military testing standards.
  • Flexible Frequency Options: Choose from 6, 9, or 17 test frequencies.
  • Comprehensive Accessories: Includes injection probe, attenuator, oscilloscope, and control software.
  • Efficient Operation: Single signal output reduces test time and supports automation.
  • User-Friendly Control: Easily controlled via RS232 and USB interfaces.
  • Versatile Configurations: Available as standalone (POG-CS116-6) or modular (M-CS116) units.
  • Robust Design: Durable construction with wide power compatibility (90–264 Vac).

Optimize your naval and industrial testing with the CS116 Damped Sinusoid Generator—precision and efficiency combined.

PARTNER:

MARKETS:

TEST STANDARDS:

Select Options/Sizes:

Data Sheet

SPECIFICATIONS

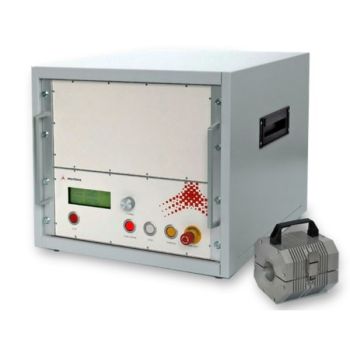

POG-CS116 Damped Sinusoid Generator

Overview

The POG-CS116 Damped Sinusoid Generator by Absolute EMC is a state-of-the-art transient generator engineered to meet the rigorous requirements of MIL-STD 461 CS116 standards. Designed to verify the resilience of Equipment Under Test (EUT) against sinusoidal excitations on interconnecting cables, this generator is essential for ensuring the reliability and performance of naval and industrial electronic systems.


Key Features

  • MIL-STD Compliance: Fully compliant with MIL-STD 461 D/E/F/G CS116, ensuring adherence to military-grade testing standards.
  • Flexible Test Frequencies: Available in three configurations with varying numbers of discrete frequencies:
    • POG-CS116-6: 6 test frequencies
    • POG-CS116-9: 9 test frequencies
    • POG-CS116-17: 17 test frequencies
    • Enhanced frequency options (up to 17) allow for better excitation of EUT resonances.

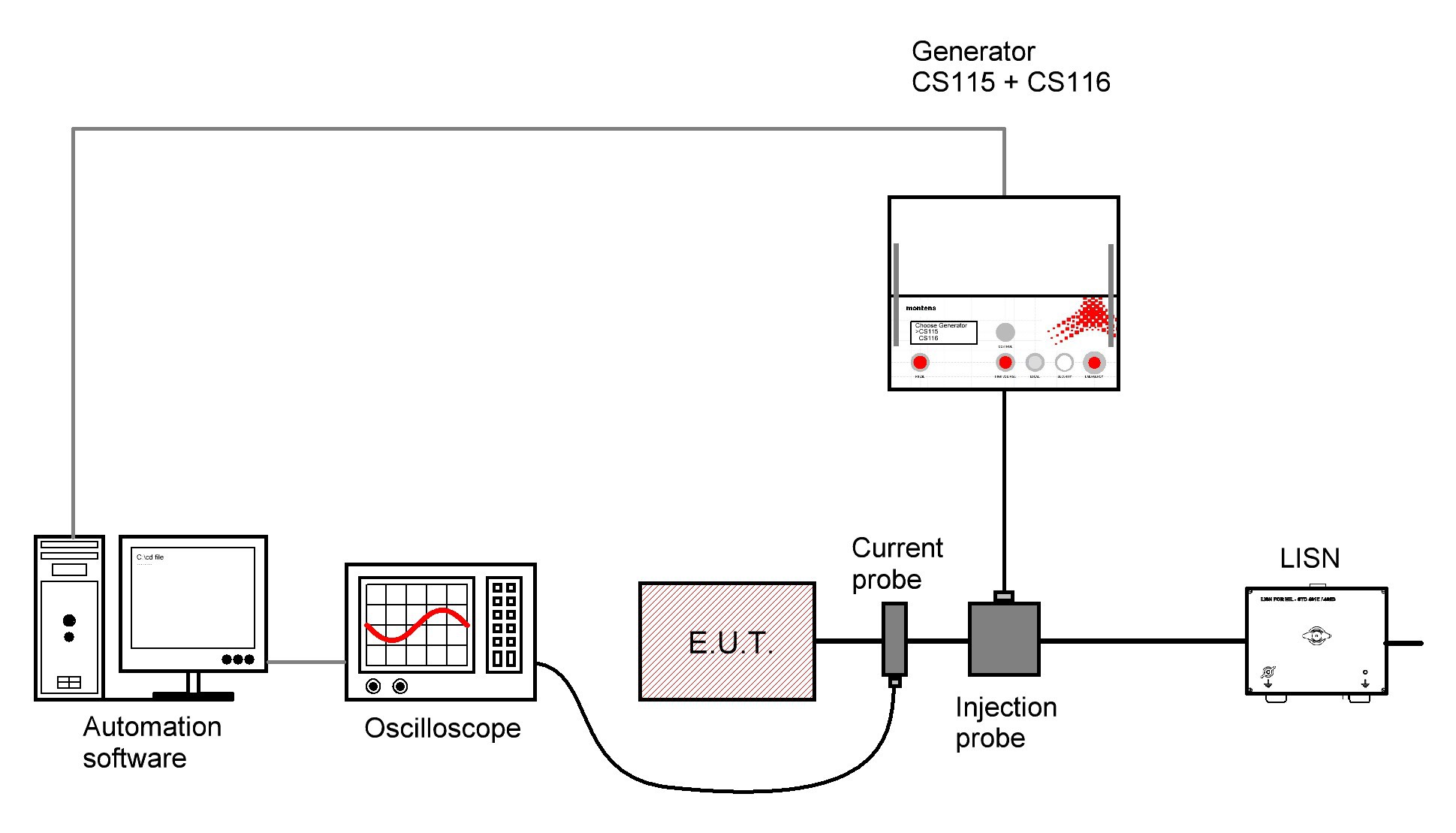

  • Comprehensive Accessories: Can be ordered with essential accessories including an injection probe, attenuator, oscilloscope, and control software for a complete testing setup.
  • Efficient Testing Process: Single signal output eliminates the need for connection changes during testing, reducing test duration and enabling automated calibration and test sequences.
  • High Performance:
    • Output Waveform: Damped oscillatory wave for accurate sinusoidal excitation.
    • Output Current: Up to 10 A on 50 ohm.
    • Output Impedance: Less than 100 ohm for optimal signal delivery.
  • User-Friendly Control: Fully controllable via computer through RS232 and USB interfaces, allowing seamless integration with your existing testing infrastructure.
  • Durable and Portable:
    • Complete Unit: Weighs 34.5 kg with dimensions 630 x 530 x 485 mm.
    • 19-inch Rack Module: Weighs 17.0 kg with dimensions 630 x 485 x 405 mm (9HU), ideal for space-constrained environments.
  • Wide Power Compatibility: Operates on 90-250 Vac, 50-60 Hz, with a power rating of 35 W / 75 VA, suitable for various power environments.
  • Robust Construction: Built to withstand demanding testing conditions with a storage temperature range of 5-50°C and an operating temperature range of 20-45°C.
  • Automation Software: Dedicated software application automatically calibrates the setup, sets perturbation levels, collects data, and generates comprehensive calibration and test reports.

Specifications

ParameterPOG-CS116-6POG-CS116-9POG-CS116-17
Standards MIL-STD 461D/E/F/G, CS116 MIL-STD 461D/E/F/G, CS116 MIL-STD 461D/E/F/G, CS116
Output Waveform Damped oscillatory wave Damped oscillatory wave Damped oscillatory wave
Test Frequencies 10, 100 kHz; 1, 10, 30, 100 MHz 10, 30, 100, 300 kHz
1, 3, 10, 30, 100 MHz		 10, 18, 30, 56, 100, 180, 300, 560 kHz
1, 1.8, 3, 5.6, 10, 18, 30, 56, 100 MHz
Output Current Up to 10 A on 50 ohm Up to 10 A on 50 ohm Up to 10 A on 50 ohm
Output Impedance ≤ 100 Ω ≤ 100 Ω ≤ 100 Ω
Damping Factor 15 ± 5 15 ± 5 15 ± 5
Repetition Rates Single, 0.5 Hz, 1 Hz Single, 0.5 Hz, 1 Hz Single, 0.5 Hz, 1 Hz
Output Impedance / Connector N 50 ohm N 50 ohm N 50 ohm
Storage Temperature 5 - 50°C 5 - 50°C 5 - 50°C
Operating Temperature 20 - 45°C 20 - 45°C 20 - 45°C
Control Interfaces RS232 and USB RS232 and USB RS232 and USB
Power Supply 90 - 264 Vac / 47 - 63 Hz / 150 VA 90 - 264 Vac / 47 - 63 Hz / 150 VA 90 - 264 Vac / 47 - 63 Hz / 150 VA
Weight 34.5 kg (complete unit) 17.0 kg (19-inch rack module) 17.0 kg (19-inch rack module)
Dimensions (L x W x H) 630 x 530 x 485 mm 630 x 530 x 485 mm 630 x 530 x 485 mm

Applications

  • Naval Equipment Testing: Ensure the robustness of submarine and surface ship electronic systems against sinusoidal transient disturbances.
  • Quality Assurance: Validate the durability and reliability of AC and DC power leads in harsh and demanding environments.
  • Electromagnetic Compatibility (EMC) Testing: Assess and enhance the electromagnetic resilience of critical naval components and systems.
  • Research & Development: Facilitate the development of robust electronic systems capable of withstanding high-intensity sinusoidal excitations.
  • Precompliance Testing: Prepare your naval and industrial equipment for formal compliance by simulating real-world transient sinusoidal conditions.

Ordering Information

Choose the configuration that best suits your testing needs:

TypeDescription
POG-CS116-6 Pulse generator for MIL-STD 461D/E/F/G CS116, 6 test frequencies, 19" rack version (Housing -9U Shown)
POG-CS116-9 Pulse generator for MIL-STD 461D/E/F/G CS116, 9 test frequencies, 19" rack version (Housing -9U Shown)
POG-CS116-17 Pulse generator for MIL-STD 461D/E/F/G CS116, 19 test frequencies, 19" rack version (Housing -9U Shown)
HOUSING-9U Instrument case 9HU, 520mm, for stand alone use of the POG-CS116
IPDR250 Injection Probe: Compatible with CS114, CS115, or CS116 tests. Frequency range: 10 kHz - 400 MHz, internal diameter: 43.8 mm.  BCI Probe for CS115, CS116, CS114

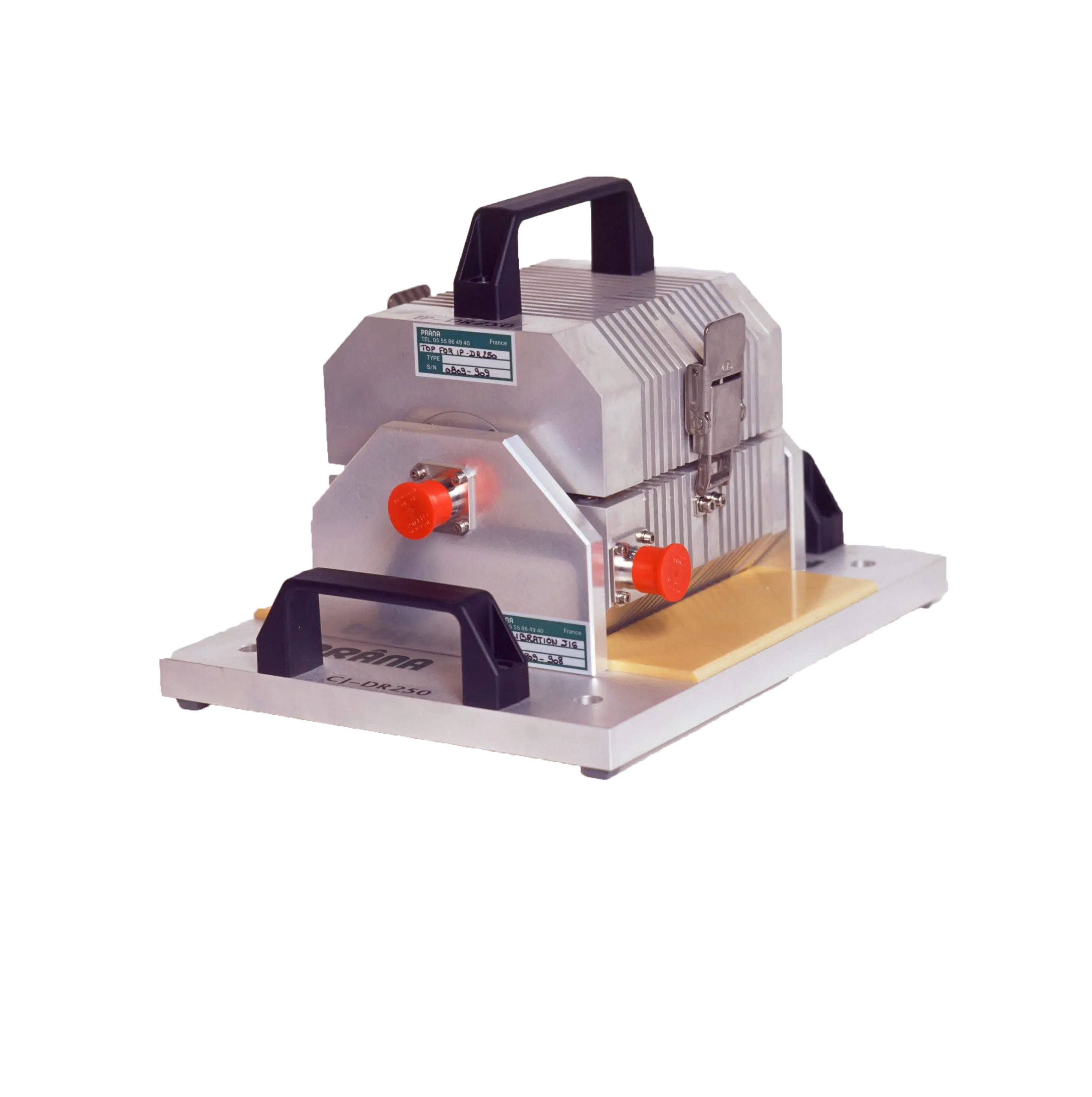

CJDR250 Calibration Jig: Designed for the IPDR250 injection probe.  Calibration Jig with probe
SW-CS-DOW Control software for MIL-STD-461 CS115 test setup
M-CS115 Module for MIL-STD 461 D/E/F/G CS115, to be installed in the POG-CS116-x generator
M-CS106 Module for MIL-STD-461F CS106, to be installed in the POG-CS116 modular generator
M-CS114 Module for MIL-Std 461 D/E/F/G CS114, to drive the signal of the external CS114 amplifier to the common output, to be installed in the POG-CS116-x generator

Why Choose the CS116 Damped Sinusoid Generator?

Absolute EMC’s CS116 Damped Sinusoid Generator offers unmatched precision, compliance, and versatility, making it the ideal choice for rigorous transient susceptibility testing in naval and industrial applications. Whether you require a standalone solution or a modular addition to your existing setup, the CS116 delivers reliable performance to meet your stringent testing standards.



Ensure the reliability and resilience of your naval and industrial power systems with the CS116 Damped Sinusoid Generator—precision engineering for critical applications.
