AM 9104 - Antenna Mast

Detachable Antenna Mast System (glass-fiber tubing) for VHF-UHF Antennas manual height scanning 0.4 m to 4 m insulated mast and antenna box with 0°/90° detents zinc-plated / stainless steel 3-leg mast foot

PARTNER:

MARKETS:

TEST STANDARDS:

Data Sheet

SPECIFICATIONS

AM 9104 - Antenna Mast

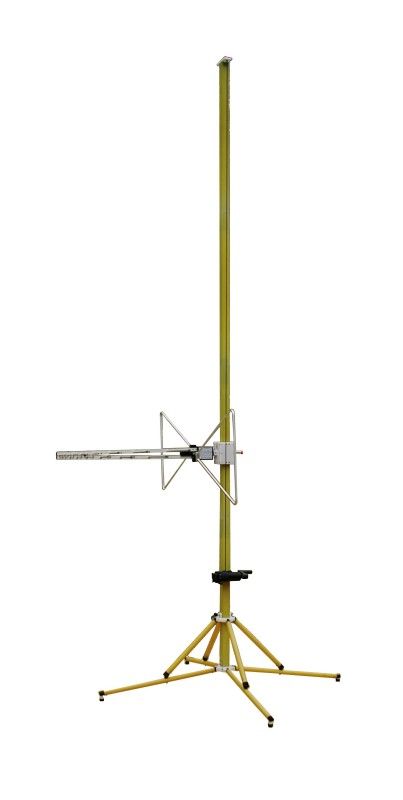

  • Schwarzbeck AM 9104 opt GFK-Fuss

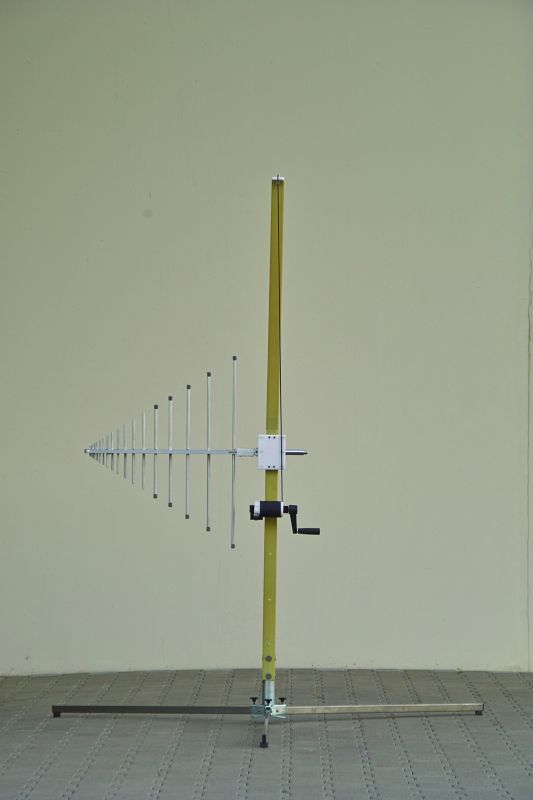

  • Schwarzbeck AM9104 Antenna Mast





Detachable Antenna Mast System (glass-fibre tubing) for VHF-UHF Antennas

manual height scanning 0.4 m to 4 m

insulated mast and antenna box with 0°/90° detents

zinc-plated / stainless steel 3-leg mast foot



pdficon small Datasheet AM 9104


Options:



AM 9104 Opt. Rollen:

Caster Wheels and Brakes for zinc-plated/ stainless steel 3-leg mast foot



AM 9104 Opt. GFK-Fuß:

Non metallic (glass-epoxy) mast foot for AM 9104











Specification:



Height scanning range:

0,4....4,15 m

Height scan: with manual winch



Required time for a complete height scan:

< 8 s

Required time for mast assembly:

< 2 min

Total weight:

13 kg

Dimensions for transport

1.17 x 0.3 x 0.3 m

Antenna support: For 22 mm tube with indexing ring



Maximum antenna weight:

5 kg

Tripod leg circumcircle diameter:

2.06 m

Mast material: Fibre glass



Tripod material: Stainless steel and zinc-plated steel, optionally (extra cost): Fibre glass





Description

The main application of AM 9104 is the measurement of radiated emission with antennas where frequent height scans are required. The mast can be set up and disassembled without any tools within 2 minutes. Due to its small transport dimensions it can be stored without problems even in small cars. The antennas are mounted with their 22 mm tube and indexing ring directly into the antenna support. The polarisation is fixed by a latching mechanism in the antenna support that uses the indexing ring mounted to any Schwarzbeck antenna. There is no additional adapter needed to accept antennas with 22 mm tubes. A bubble level is mounted on the tripod to enable a convenient perpendicular adjustment of the three leg spider on uneven ground. The spider legs can be equipped with caster wheels with brakes optionally



Scope of delivery:

AM 9104 consists of a spider-like zinc plated and stainless steel tripod, 4 glass fiber square-tubes 50 mm thick of a total length of 115 cm (100 cm later visible, 15 cm used for the connection to the next tube), a hand winch, a rope and an antenna support made of POM.



Required floor space:

Radius from the mast center to the outer leg end: 103 cm. Minimum distance between mast center and wall: 52 cm.
