VBA200-3000 — 12 MHz to 200 MHz, 3kW, Class-A RF Power Amplifiers

  • Class-A operation for low distortion and highly linear RF output
  • 100% mismatch tolerant (Infinity:1 VSWR) with no fold-back protection required
  • Push-pull MOSFET architecture for even-order harmonic suppression
  • Wide instantaneous bandwidth from 12 to 200 MHz
  • Compact rack or bench configurations for lab and chamber use
  • Designed for continuous EMC testing environments

PARTNER:

MARKETS:

CATEGORIES:

TEST STANDARDS:

SPECIFICATIONS

VBA 200 Series — 12 to 200 MHz Class-A RF Power Amplifiers

VBA200-3000 RF Power Amplifier

12 MHz – 200 MHz | 3000 W | Class-A | 100 % Mismatch Tolerant



The Vectawave VBA200-3000 is a high-power, broadband RF amplifier engineered for the most demanding electromagnetic compatibility (EMC) immunity tests and high-power RF applications. Designed to deliver 3000 W of rated power across 12 MHz to 200 MHz, this amplifier combines rugged Class-A MOSFET push-pull output stages with Vectawave’s proprietary power combining architecture to optimize efficiency, linearity, and mismatch tolerance.

Key Technical Advantages

    • 3000 W broadband output for conducted and radiated immunity tests

    • Class-A operation for very low distortion and predictable linear performance

    • 100 % mismatch tolerant (Infinity:1 VSWR) — no fold-back or shutdown required

    • Rugged push-pull MOSFET output stages minimize harmonic content

    • High-efficiency proprietary power combiner reduces internal losses

    • Front-panel and remote control via Ethernet, USB, and GPIB

    • Comprehensive monitoring of forward/reflected power and supply health

    • Unconditional stability across the entire frequency band



Models & Core Specifications

SpecificationVBA200-3000

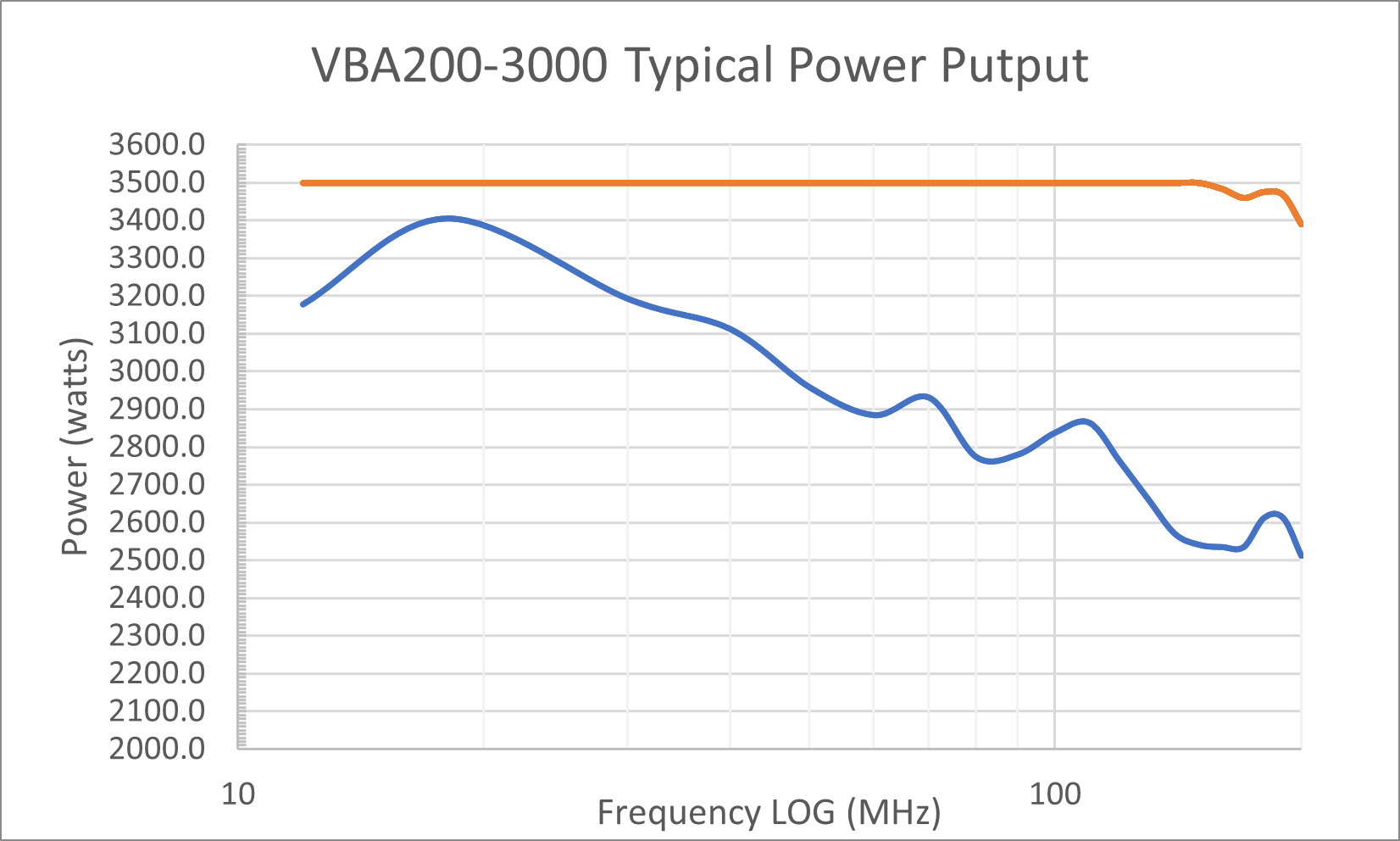

Typ. Performance Curve
Frequency Range 12 MHz–200 MHz
Type Class-A;
rugged push-pull MOSFET
Output VSWR Tolerance ∞:1,
100 % mismatch tolerant
Rated / Typical Power CW ≥3000W
P1dB ≥2400W
Gain (min) 65 dB
Gain Flatness ±3 dB
TOI (typ) 75 dBm
Harmonics @ Linear Power < –20 dBc
RF Input / Output Connectors Input: Type-N (f) Output: 7/16 DIN (f)
Input Power (Mains) 3 phase 200-240V or 350-415V ac
45-63Hz, <11kVA
IEC60309 plug
Size & Weight 19-inch, 20U Rack, 800mm Deep, 190kg
Interface Ethernet, USB, GPIB, Front Panel Display
Notes Rear connectors





EMC Applications & Standards Coverage



  • Radiated Immunity Testing for High Automotive levels 20MHz-200MHz
  • Bulk Current Injection (BCI)
  • Transducer and coil excitation
  • Antenna drive at VHF frequencies
  • Automotive, aerospace, and industrial EMC testing
  • General-purpose linear RF amplification



Mechanical & Integration Features

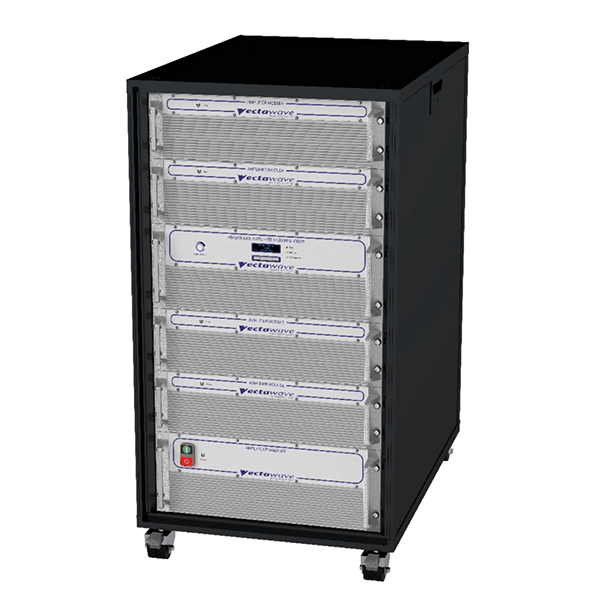

  • Robust 20U rack mount chassis for EMC labs and test systems

  • Air-cooled design optimized for continuous full-power operation

  • Standard safety interlocks for system fault mitigation

  • Remote control via industry-standard interfaces facilitates automated test integration

  • Designed for IEC 61000 series EMC immunity environments



Control & Monitoring

The VBA200-3000 supports both local and remote operation:

  • Front panel keypad and graphical display for status, power levels, and configuration

  • Ethernet / USB / GPIB interfaces for remote operation and integration with external test controllers

  • Real-time reporting of forward power, reflected power, supply health, and interlock state

  • Digital interlock implementation ensures safe operation within complex test environments

Why Absolute EMC

Absolute EMC provides application-specific system design (BCI loops, clamps, CDN selection, power meters/couplers, LISNs), installation, and correlation guidance to IEC, ISO, SAE, DO-160, and MIL standards—so your amplifier integrates correctly with sensors, control, and calibration chains from day one.

What to Specify (Selection Guide)

  1. Required test method & level (e.g., IEC 61000-4-6 level X, ISO 11452-4 forward power for clamp Y).

  2. Fixture/transducer type and insertion loss.

  3. Required linear output (P1dB) at the highest frequency of interest.

  4. Available mains power and control interface needs (USB/GPIB).

  5. Space/rack constraints and RF connectorization.





Ordering Information

  • Models: VBA200-3000 (12–200 MHz series; note model-specific start frequencies per datasheet).
  • Included: Amplifier, mains cable, user manual, and interface kit where applicable.
  • Options/Accessories: RF directional couplers & power meters, BCI clamps, CDNs, TEM/stripline fixtures, control/monitoring packages.
  • Warranty & Support: Provided by Absolute EMC with commissioning assistance and application support.
