VBA1032-450 — 1 to 3.2 GHz, 450Watts, Class-A RF Power Amplifiers

  • GaN technology with extra-wideband output stages
  • Class-A operation for low distortion and robust mismatch drive
  • Unconditional stability and infinite VSWR tolerance (within permitted excitation limits)
  • Remote control: Ethernet / USB / GPIB
  • Interlocks and monitoring: power levels, interlock states, PSU health; forward/reflected sample ports

PARTNER:

MARKETS:

CATEGORIES:

TEST STANDARDS:

VBA1032-450 Data Sheet

SPECIFICATIONS

Vectawave VBA1032-450 — 1000 MHz to 3200 MHz, 450 W High Power RF Amplifier

The VBA1032-450 is a 1000–3200 MHz, 450 W high-power RF amplifier designed for applications requiring a rugged Class-A mismatch-tolerant architecture. The design leverages extra-wideband GaN output stages and Vectawave’s proprietary Quadrature Hybrid combining technique to minimize combining loss and improve efficiency.

Control is available from the front panel or via Ethernet / USB / GPIB. The digital interface manages enable/disable, monitoring, PSU health, communications, and electrical interlocks. Rear-panel forward and reflected power sample ports are provided for system monitoring and protection integration.

Key Features

  • GaN technology with extra-wideband output stages
  • Class-A operation for low distortion and robust mismatch drive
  • Unconditional stability and infinite VSWR tolerance (within permitted excitation limits)
  • Remote control: Ethernet / USB / GPIB
  • Interlocks and monitoring: power levels, interlock states, PSU health; forward/reflected sample ports

Technical Specifications

ParameterSpecification
Frequency Range (Instantaneous) 1000–3200 MHz

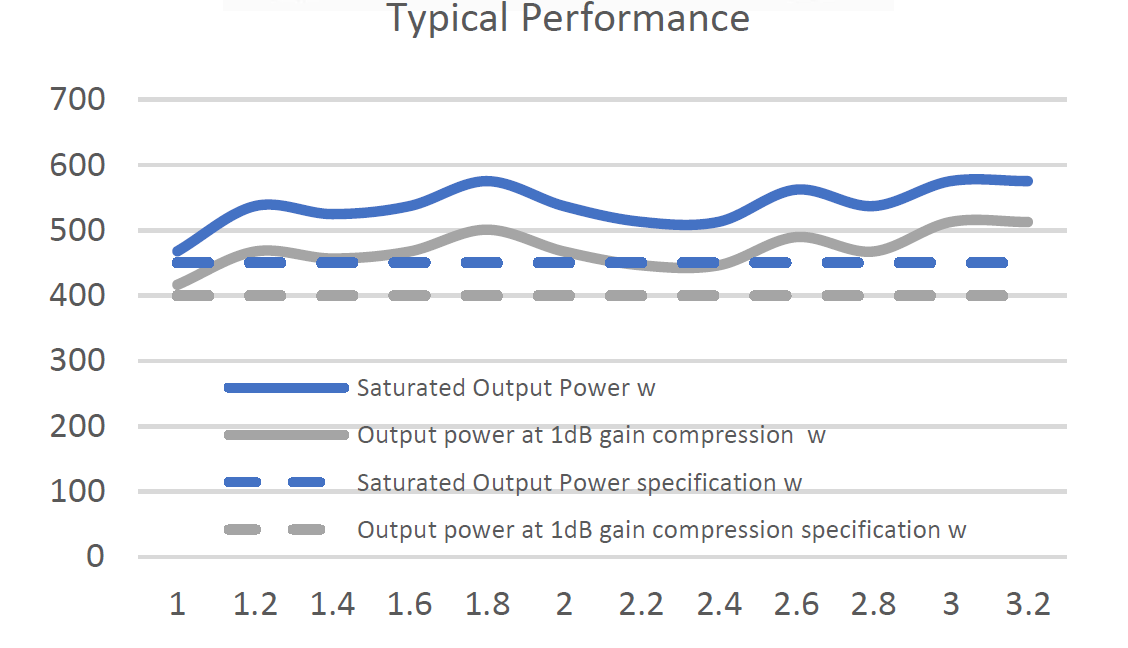

Rated Output Power 450 W (1000–3200 MHz)
Output Power @ 1 dB Gain Compression 400 W (1000–3200 MHz)
Gain 57 dB minimum
Third Order Intercept Point (TOI/IP3) 66 dBm (nominal; depends on measurement conditions)
Gain Variation vs Frequency ±3 dB
Harmonics (at linear power) Better than -20 dBc
Output Impedance 50 Ω
Stability Unconditional
Output VSWR Tolerance Infinity:1 (see excitation limits note)
Input VSWR 2:1 max
AC Supply (3-phase) Option a) 200–240 Vac, 4-pin plug (no neutral) or option
b) 350–415 Vac, 5-pin plug (with neutral)
Supply Frequency Range 45–63 Hz
Supply Power < 4 kVA max
Mains Connector IEC 60309 plug (per options)
RF Connector Style Input: Type N (female),
Output: 7-16 (female)
Safety Interlock 2 × BNC, short-circuit, and open-circuit to mute
Remote Control Interface USB / GPIB / Ethernet
Dimensions 19-inch rack, 20U, 800 mm deep
Mass 150 kg
Operating Temperature Range 0–40 °C
IP3 Note Nominal value; calculation depends on the distortion measurement power level
VSWR Note VSWR tolerance specified for excitation within permitted levels and frequency range

Request a Quote / Integration Support

 Absolute EMC supports the VBA1032-450 for North America sales and integration. For complete system builds (amplifier + couplers + power monitoring + antennas + interlock chains), request a quotation with your target frequency coverage, required field levels, and chamber/antenna details.
