VBA0860 Series — 0.8 to 6 GHz Class-A RF Power Amplifiers

  • Class-A architecture
  • GaN Quadrature Hybrid
  • Wideband 800 MHz – 6 GHz
  • Unconditional stability & extreme VSWR tolerance
  • Integrated digital interfaces (select models)

PARTNER:

MARKETS:

CATEGORIES:

TEST STANDARDS:

Select Options/Sizes:

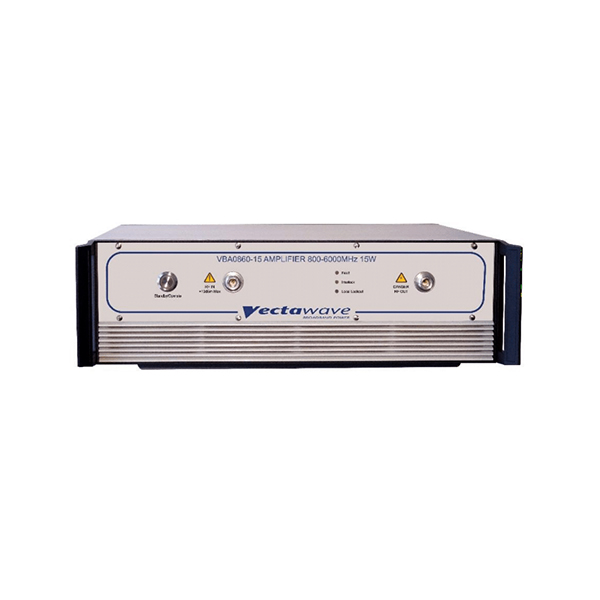

VBA0860-15, 0.8-6GHz, 15W

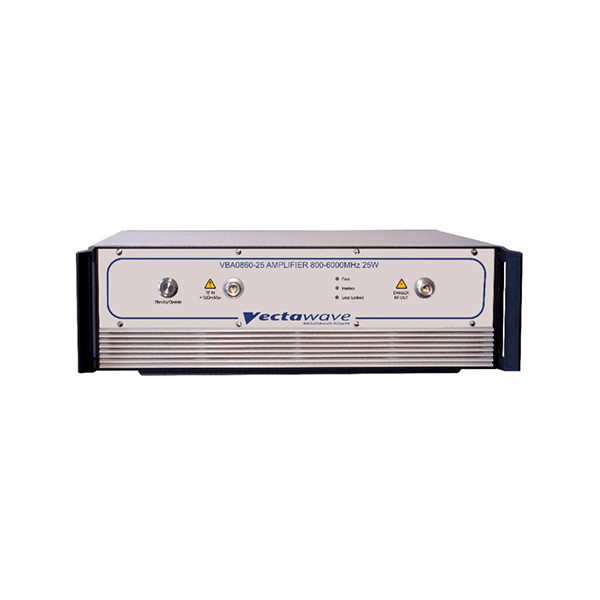

VBA0860-25, 0.8-6GHz, 25W

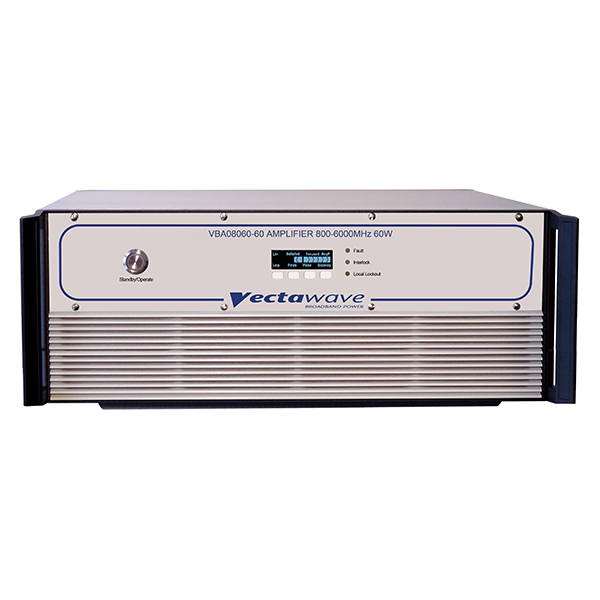

VBA0860-60, 0.8-6GHz, 60W

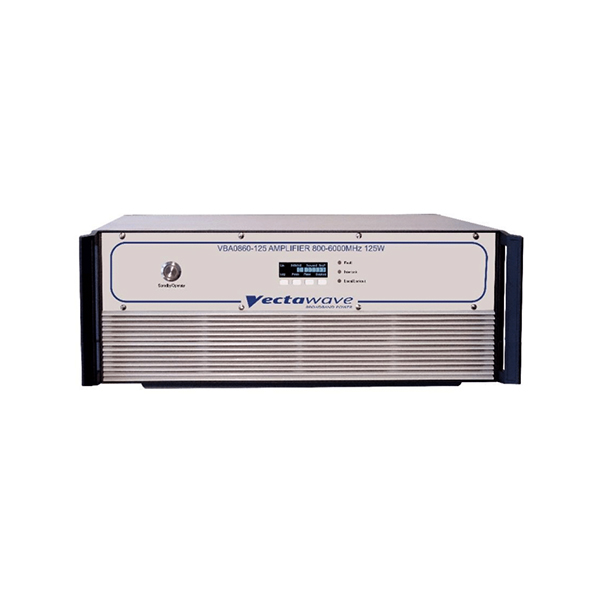

VBA0860-125, 0.8-6GHz, 125W

SPECIFICATIONS

VBA0860 Series — 0.8 to 6 GHz Class-A RF Power Amplifiers

Broadband, mismatch-tolerant RF power for radiated immunity, stripline, and antenna drive
Vectawave’s VBA0860 Series covers 0.8–6 GHz with true Class-A linearity based on GaN wideband output stages and Vectawave’s quadrature-hybrid combiners. The result is low distortion, high reliability, and unconditional operation into severe mismatch—ideal for IEC/EN 61000-4-3 radiated immunity (stripline/small antennas), DO-160 §20 work, and demanding chamber applications.



Key Technical Advantages

  • Class-A architecture for the lowest distortion in EMC immunity; designed to maintain output without fold-back under high reflection.
  • GaN push-pull wideband stages with proprietary quadrature-hybrid combining for efficient, rugged output over 0.8 - 6 GHz.
  • 0.8 - 6 GHz instantaneous bandwidth for stripline, small antenna drive, and chamber field generation.
  • Unconditional stability & ∞:1 output VSWR tolerance (any phase) on series models, supporting variable fixtures/antennas.
  • Modern remote interfaces (Ethernet/USB/GPIB) with front-panel control for enable/monitoring/interlocks.



Models & Core Specifications

SpecificationVBA0860-15VBA0860-25VBA0860-60VBA0860-125
Typ. Performance Curve
Frequency Range 0.8-6 GHz 0.8-6 GHz 0.8-6 GHz 0.8-6 GHz
Type Class-A;
GaN, quadrature combiner		 Class-A;
GaN, quadrature combiner		 Class-A;
GaN, quadrature combiner		 Class-A;
GaN, quadrature combiner
Output VSWR Tolerance ∞:1,
100 % mismatch tolerant		 ∞:1,
100 % mismatch tolerant		 ∞:1,
100 % mismatch tolerant		 ∞:1,
100 % mismatch tolerant
Rated / Typical Power CW ≥15W,
P1dB ≥10W		 CW ≥25 W,
P1dB ≥20W		 CW ≥60W,
P1dB ≥50W		 CW ≥125W,
P1dB ≥100W
Gain (min) 43dB 46 dB 49 dB 51 dB
Gain Flatness ±3 dB ±3 dB ±3 dB ±3 dB
TOI (typ) 51 dBm 54 dBm 58 dBm 60 dBm
Harmonics @ Linear Power < –20 dBc < –20 dBc < –20 dBc < –20 dBc
RF Input / Output Connectors Type N (f) Type N (f) Type N (f) Type N (f)
Input Power (Mains) 100-240V ac
45-63Hz, 150VA
 IEC320-C14		 100-240V ac
47-63Hz, <300kVA
 IEC320-C14		 100-240V ac
45-63Hz, <1.5kVA
 IEC320-C20		 100-240V ac
45-63Hz, <2kVA
 IEC320-C20
Size & Weight 19-inch, 3U Case, 500mm Deep, 6kg 19-inch, 3U Case, 500mm Deep, 7kg 19-inch, 4U Case, 600mm Deep, 15kg 19-inch, 4U Case, 600mm Deep, 20kg
Interface USB/GPIB control; front panel display USB/GPIB control; front panel display USB/GPIB control; front panel display USB/GPIB control; front panel display
Notes Front or Rear connectors Front or Rear connectors Rear connectors Rear connectors

EMC Applications & Standards Coverage

  • Radiated RF Immunity: IEC/EN 61000-4-3 (stripline/small antennas, chamber drive).
  • Automotive testing for ASLE and Reverb
  • Avionics Susceptibility: RTCA/DO-160 §20 (radiated/conducted—upper-band amplifier drive).
  • General EMC/chamber use: field generation, transducer/fixture drive over 1–6 GHz.



Control, Monitoring & Protection (Model-Dependent)

  • Local front-panel control with Ethernet/USB/GPIB remote interfaces for enable, metering, and interlocks.
  • Designed for continuous duty into high VSWR loads; unconditional stability specified on models like VBA2060-60

Why Absolute EMC

Absolute EMC sizes amplifiers to your field targets and integrates directional couplers/power meters, striplines/antennas, safety interlocks, and monitoring—so your system hits levels with margin from 2 GHz to 6 GHz on day one.

What to Specify (Selection Guide)

  1. Test method & field level (e.g., IEC 61000-4-3 10/20/30 V/m; DO-160 §20).

  2. Fixture/antenna & insertion loss (stripline, log-periodic, biconical, horn).

  3. Required linear output (P1 dB) at 2 GHz and 6 GHz with margin.

  4. Mains power & remote interface needs (Ethernet/USB/GPIB).

  5. Rack space & connectorization preferences.



Typical System Block

Signal source / RF generator → leveling & power meter/coupler → VBA2060 amplifier → stripline/antenna → EUT, with reverse-power/VSWR monitoring and interlocks. ∞:1 VSWR tolerance & unconditional stability simplify integration with variable antennas/fixtures.



Frequently Asked Questions

Q1. Will the amplifier tolerate severe mismatch from my antenna or stripline?
Yes. VBA 2060 models are designed for EMC with Class-A operation and ∞:1 VSWR tolerance; VBA2060-60 explicitly specifies unconditional stability and ∞:1 any phase.

Q2. Should I size to rated (P3 dB) or linear (P1 dB) power?
For immunity targets, size to P1 dB at 6 GHz with fixture/antenna loss margin; use rated power only for headline comparison. (See model datasheets for curves.)

Q3. Can I remote-control these amplifiers?
Yes—Ethernet/USB/GPIB interfaces are provided for enable, metering, and health/interlocks.

Ordering Information



  • Models: VBA2060-15, -25, -60, -125, -200 (2–6 GHz).
  • Included: Amplifier, mains cable, user manual.
  • Options/Accessories: Directional couplers & power meters, striplines/antennas, field probes, control/monitoring packages.
  • Warranty & Support: Absolute EMC commissioning assistance and application support.
