NFCN 9732-x nF - Compensation Network for AGEM 5521-23

Frequency-specific compensation for the AGEM 5521-23

The Schwarzbeck NFCN 9732-x nF reduces the series impedance of the AGEM 5521-23 electromagnet at a customer-selected frequency up to 1 MHz, enabling high coil currents with generator voltages below 20 V RMS under compensated operating conditions.

Specify your working frequency when ordering. Connection cables are optional.

PARTNER:

MARKETS:

CATEGORIES:

TEST STANDARDS:

NFCN 9732-x nF Data Sheet

SPECIFICATIONS
Up to 1 MHzSelected operating frequency
600 V ACWithstand voltage
0.4 kgNetwork weight
Product overview

Specify the frequency. Match the network.

Frequency-specific compensation

The capacitor lowers the total impedance of the electromagnet’s series circuit at a selected frequency. It is not described as a continuously adjustable broadband matching unit.

Built for the AGEM 5521-23

Use this network with the AGEM 5521-23 electromagnet. The “x nF” designation identifies a capacitance variant; the family datasheet does not provide one universal capacitance value.

Connection options

The generator side uses 7 mm wing terminals. The output labeled “to coil” uses 4 mm safety laboratory jacks and connects directly to the AGEM. Optional connection cables are ordered separately.

Connection overview

See where it fits.

01Generator / amplifier
02Protection resistor per AGEM setup
03NFCN 9732-x nF
04AGEM 5521-23

Connect the generator to the wing terminals and the output marked “to coil” to the electromagnet. The AGEM datasheet requires series amplifier protection.

Technical data

NFCN 9732-x nF specifications

Ratings, connectors and mechanical details consolidated from the manufacturer’s product page and Rev. A datasheet.

Read the full datasheet
Function Series capacitive compensation for AGEM 5521-23
Operating frequency Customer-specific, up to 1 MHz
Capacitance Variant-specific (x nF); specify working frequency
Generator voltage described in application Less than 20 V RMS with the compensated system
Withstand voltage 600 V AC
Generator connectors 7 mm wing terminals
Coil connectors 4 mm safety laboratory jacks
Dimensions including terminals (W × H × D) 130 × 55 × 107 mm
Weight 0.4 kg
Optional accessories Connection cables, ordered separately
Construction & application

Photos, details and test setups

Original figures extracted from the associated datasheet. Open any image to inspect the full-size figure.

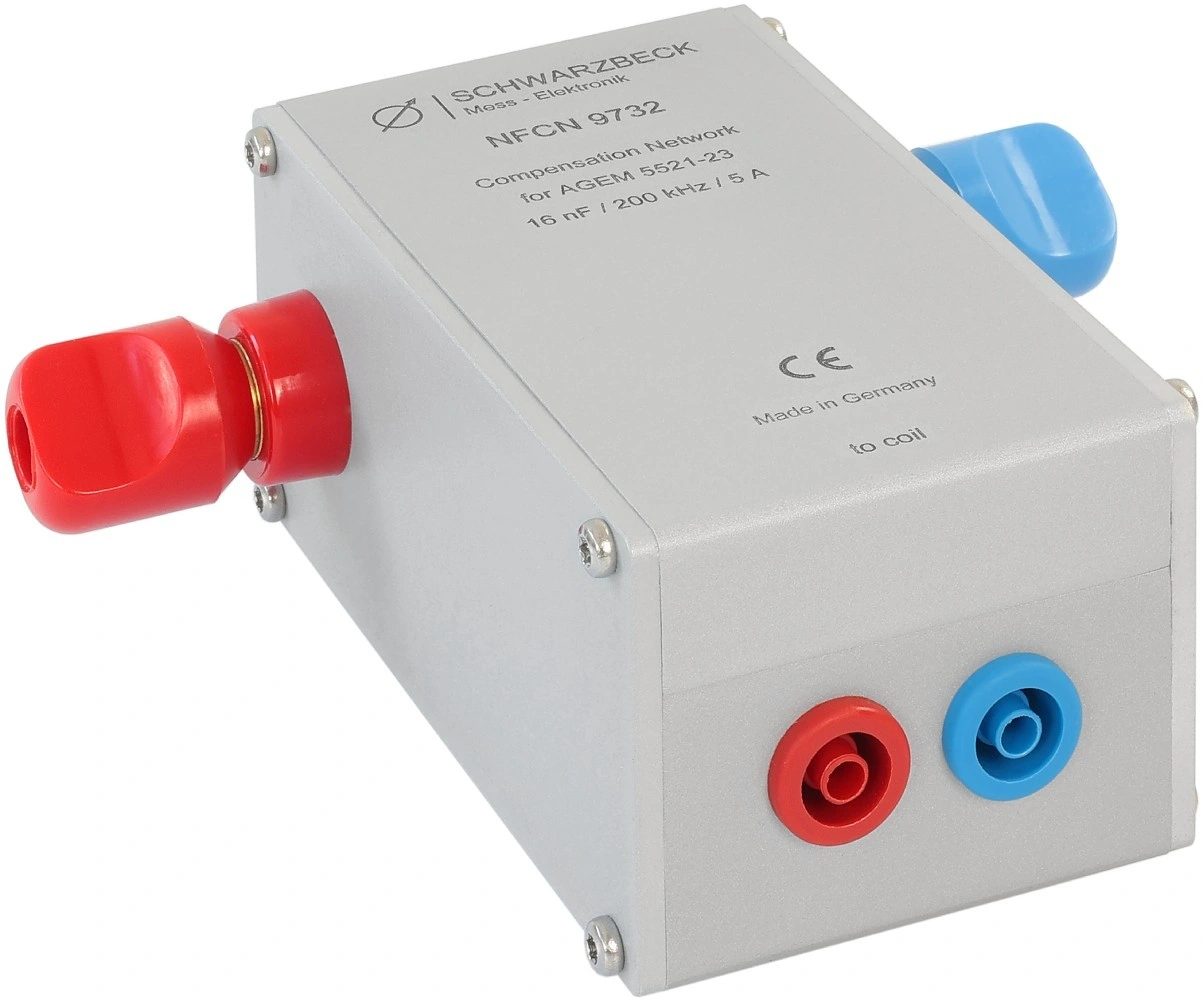

Compensation network — Wing terminals connect to the generator; the front safety jacks connect to the coil.

Compensation network

Wing terminals connect to the generator; the front safety jacks connect to the coil. The photographed 16 nF / 200 kHz / 5 A unit is one example variant; these values do not apply to every NFCN 9732-x nF.

Manufacturer datasheet · page 1 · Click image for full size

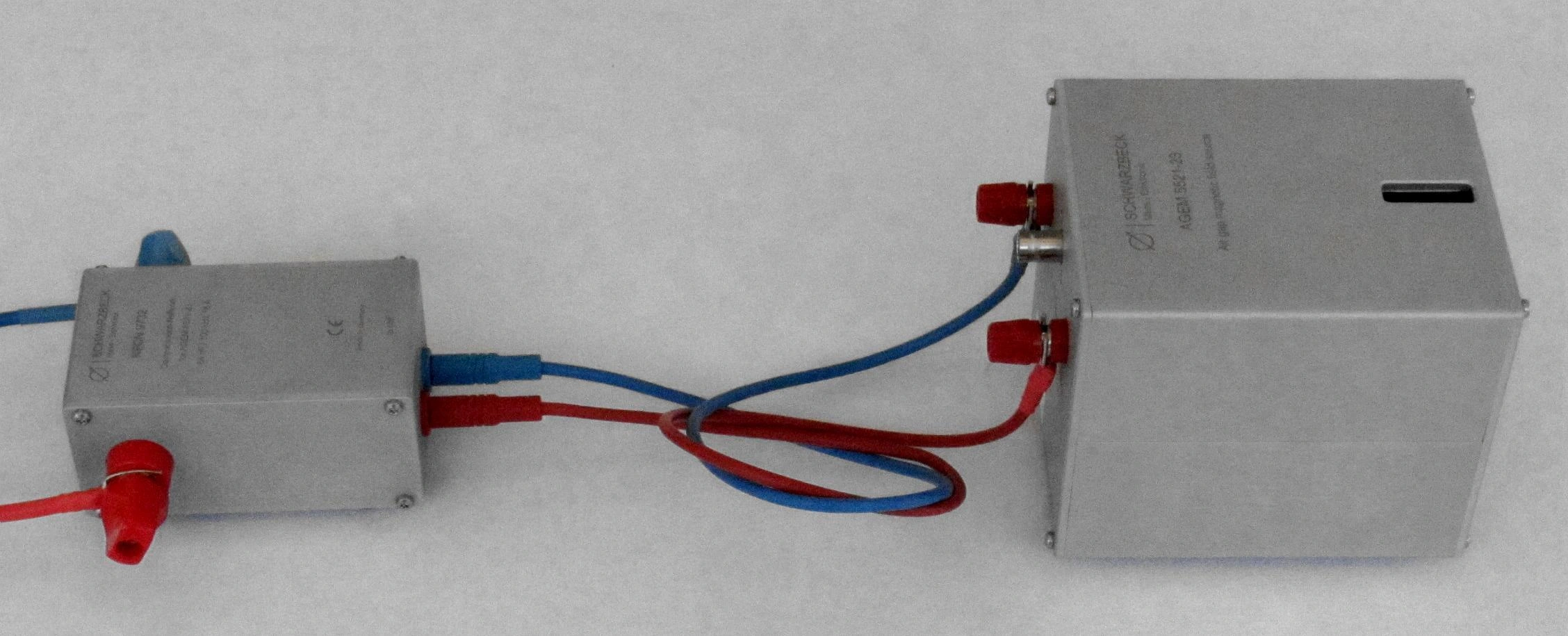

Network connected to AGEM 5521-23 — Manufacturer’s complete-system connection photograph. Optional cables are ordered separately.

Network connected to AGEM 5521-23

Manufacturer’s complete-system connection photograph. Optional cables are ordered separately.

Manufacturer datasheet · page 2 · Click image for full size

Components and system requirements

Product

NFCN 9732-x nF compensation network, with capacitance selected for your working frequency.

Optional accessories

Connection cables are available separately. Specify the required connections when configuring the system.

Supporting equipment

AGEM 5521-23 electromagnet, suitable generator/amplifier, series amplifier-protection resistor and appropriate monitoring equipment. These are separate system components.

Practical questions

Before you specify the product

Which capacitance should I order?

Provide the AGEM 5521-23 model and required operating frequency. The manufacturer specifies the capacitor for the customer’s working frequency.

Are connection cables supplied?

The datasheet lists the connection cables as optional and separately ordered.
