EMC184045SE, 18 - 40 GHz, 45dB gain, Low Noise Preamplifier

EMC184045SE, 18 - 40 GHz, 45dB gain, Low Noise Preamplifier

18 - 40 GHz, 45dB Gain, 3dB N.F.
Compensation long cable loss for EMI Measurement
Improve system noise floor flatness
High EMI performance
High linearity LNA for EMI measurement
High dynamic range
Unconditionally Stable
State-of-the-Art Technology

PARTNER:

EMC INSTRUMENTATION CORP

MARKETS:

TEST STANDARDS:

Data Sheet

SPECIFICATIONS

EMC184045SE, 18 - 40 GHz, 45dB gain, Low Noise Preamplifier

Check out our Preamplifier Selection Guide.

Features Description

18 - 40 GHz, 45dB Gain, 3dB N.F.
Compensation long cable loss for EMI Measurement
Improve system noise floor flatness
High EMI performance
High linearity LNA for EMI measurement
High dynamic range
Unconditionally Stable
State-of-the-Art Technology

Spesifications
Frequency Range	18-40GHz
Noise Figure	3 dB max
Gain (dB min)	45 dB min
Gain flatness
P-1dB Compression Point
Input VSWR/output VSWR

Power Requirements	110Vac/230Vac
Output connectors	50-ohm 2.92 Female
Size	145mm75mm66mm(158mm) 217mm330mm100mm
Net Weight	628g(870g)/3000g
Built AC input main power grounding detect circuit

Versions

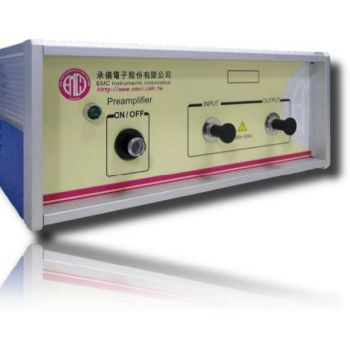

EMC184045B Bench Model

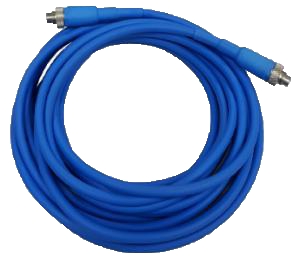

EMC184045SE-001 50mm tube clamp to mount on Antenna mast +power Supply with 6m cable
EMC184045SE-002 52mm Box clamp to mount on Antenna mast +power Supply with 6m cable
