EMC01640A, 10 MHz - 6 GHz, 40dB gain, Low Noise Preamplifier

  • 10 MHz - 6 GHz, 40dB Gain, 2.5dB N.F.
  • Compensation long cable loss for EMI Measurement
  • Improve system noise floor flatness
  • High EMI performance
  • High linearity LNA for EMI measurement
  • High dynamic range
  • Unconditionally Stable
  • State-of-the-Art Technology

PARTNER:

MARKETS:

TEST STANDARDS:

Data Sheet

SPECIFICATIONS

EMC01640A, 10 MHz - 6 GHz, 40dB gain, Low Noise Preamplifier

Check out our Preamplifier Selection Guide.

Features Description

  • 10 MHz - 6 GHz, 40dB Gain, 2.5dB N.F.
  • Compensation long cable loss for EMI Measurement
  • Improve system noise floor flatness
  • High EMI performance
  • High linearity LNA for EMI measurement
  • High dynamic range
  • Unconditionally Stable
  • State-of-the-Art Technology

Spesifications
Frequency Range 10 MHz to 6GHz
Noise Figure 2.5 dB max

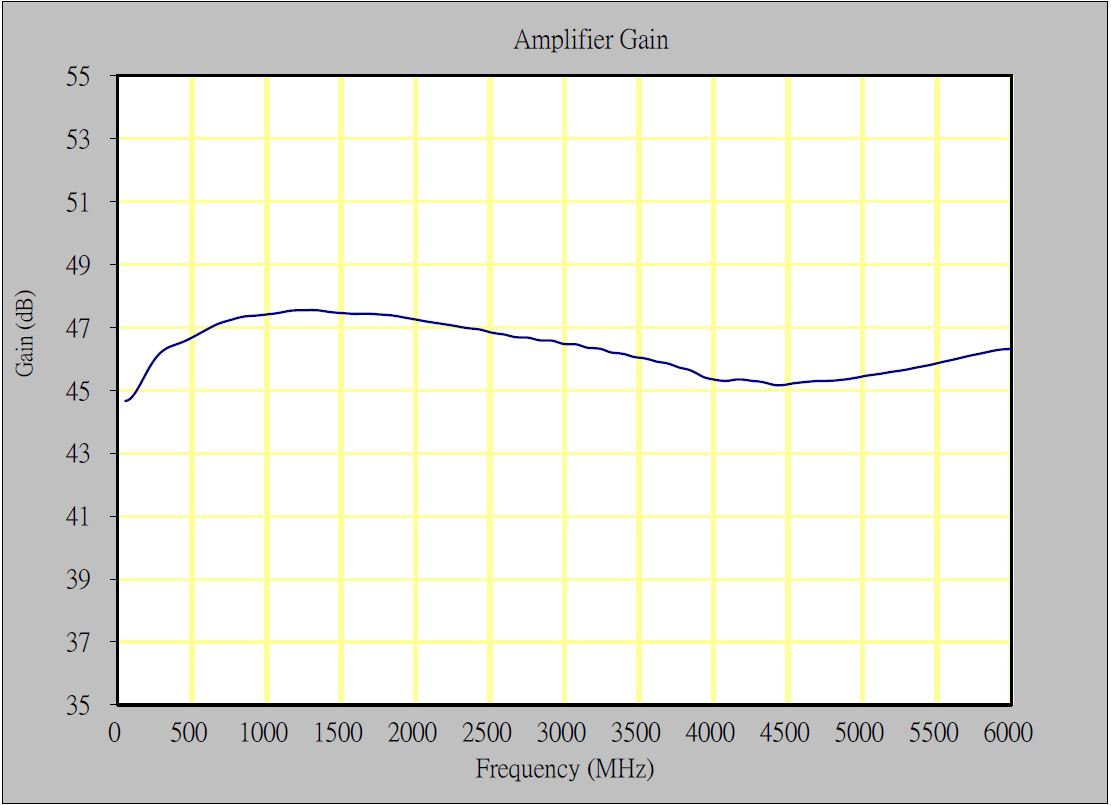

Gain (dB min) 40 dB min
Gain flatness  +/- 2.5dB
P-1dB Compression Point 150 dBm min
Input VSWR/output VSWR

 1.8:1 / 2.5:1

Power Requirements 110Vac/230Vac
Output connectors 50-ohm Type N Female
Size 217mm*330mm*100mm
Net Weight  2.8kg

Built AC input main power

grounding detect circuit


Optional Pulse/ESD protector
