EMC12630SE, 1 - 26.5 GHz, 30dB gain, Low Noise Preamplifier

  • 1 - 26.5 GHz, 30dB Gain, 4.0dB N.F.
  • Compensation long cable loss for EMI Measurement
  • Improve system noise floor flatness
  • High EMI performance
  • High linearity LNA for EMI measurement
  • High dynamic range
  • Unconditionally Stable
  • State-of-the-Art Technology

PARTNER:

MARKETS:

TEST STANDARDS:

Data Sheet

SPECIFICATIONS

EMC12630SE, 1 - 26.5 GHz, 30dB gain, Low Noise Preamplifier

Check out our Preamplifier Selection Guide.

Features Description

  • 1 - 26.5 GHz, 30dB Gain, 4.0dB N.F.
  • Compensation long cable loss for EMI Measurement
  • Improve system noise floor flatness
  • High EMI performance
  • High linearity LNA for EMI measurement
  • High dynamic range
  • Unconditionally Stable
  • State-of-the-Art Technology

Spesifications
Frequency Range 1-26.5GHz
Noise Figure 4 dB max

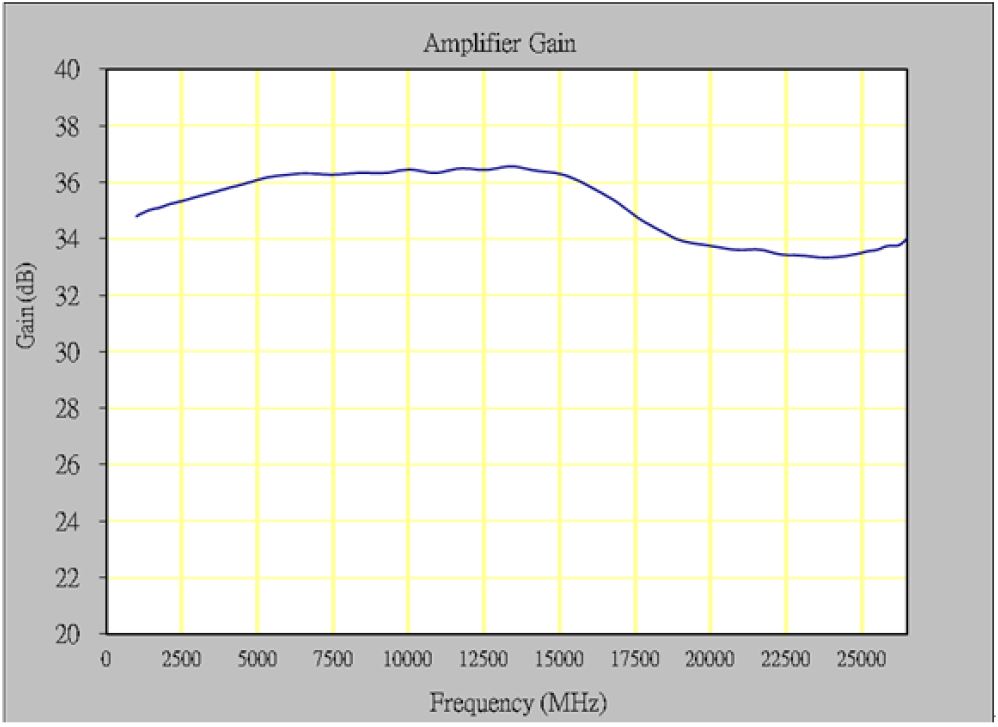

Gain (dB min) 30 dB min
Gain flatness  +/- 2.0dB
P-1dB Compression Point 13 dBm min
Input VSWR/output VSWR 2.5:1 / 2.5:1 max
Input Damage Level 0 dBm+ 10 Vdc
Power Requirements 110Vac/230Vac
Output connectors 50-ohm 2.92 Female
Size 145mm*75mm*66mm(158mm)
217mm*330mm*100mm
Net Weight  628g(870g)/3000g

Built AC input main power

grounding detect circuit





Versions

  • EMC12630B Bench Model
  • EMC12630SE-001 50mm tube clamp to mount on Antenna mast +power Supply with 6m cable
  • EMC12630SE-002 52mm Box clamp to mount on Antenna mast +power Supply with 6m cable
