EMC118A45SE, 1-18 GHz, 45dB gain, Low Noise Preamplifier

  • 1-18GHz Frequency Range
  • Compensation long cable loss for EMI Measurement
  • Improve system noise floor flatness
  • High EMI performance
  • High linearity LNA for EMI measurement
  • High dynamic range
  • Unconditionally Stable
  • State-of-the-Art Technology

Data Sheet

SPECIFICATIONS

EMC118A45SE, 1-18 GHz, 45dB gain, Low Noise Preamplifier

Check out our Preamplifier Selection Guide.

Features Description

  • 1-18GHz Frequency Range
  • Compensation long cable loss for EMI Measurement
  • Improve system noise floor flatness
  • High EMI performance
  • High linearity LNA for EMI measurement
  • High dynamic range
  • Unconditionally Stable
  • State-of-the-Art Technology

Spesifications
Frequency Range 1GHz-18GHz
Noise Figure 3.5 - 8 dB max
Nominal Gain (dB min) 32 dB min @1 GHz and 45 dB min @18 GHz
Gain flatness 1-6 GHz @36dB @ +/- 3dB
6-12 GHz @40dB @ +/- 3dB
12-18 GHz @45dB @ +/- 3dB
P-1dB Compression Point 20 dBm min
Input VSWR/output VSWR 2.8:1 / 2.8:1
Max RF input power -15dBm@1GHz max ~ -25dBm@18GHz max
Power Requirements 110Vac/240Vac
Output connectors 50-ohm SMA Female
Size 145mm*75mm*66mm(158mm)
217mm*254mm*100mm (PS)
Net Weight  628g(870g)/3000g

Built AC input main power

grounding detect circuit





Versions

  • EMC118A45SE-001 50mm tube clamp to mount on Antenna mast +power Supply with 6m cable
  • EMC118A45SE-002 22mm tube clamp to mount on Antenna +power Supply with 6m cable
  • EMC118A45SE-003 52mm Box clamp to mount on Antenna mast +power Supply with 6m cable

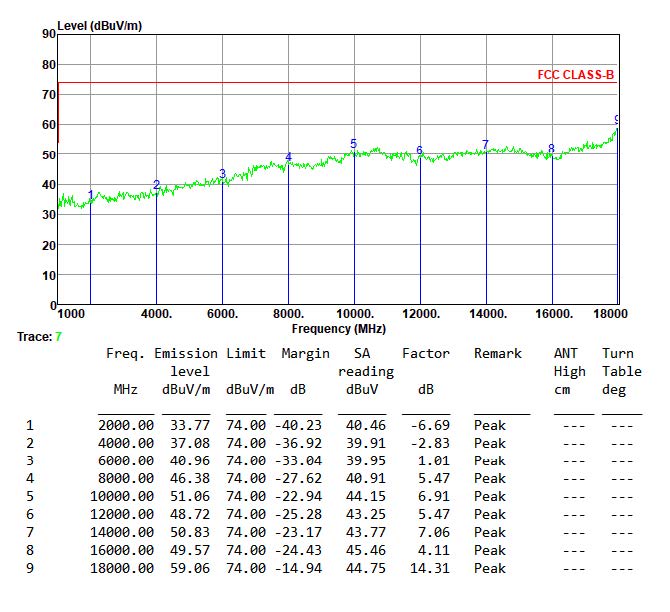

Measurement condition 1:
RBW=1MHz
VBW=3MHz
Measurement Detector: Peak trace
Measurement Limiter: Peak Limiter
Measurement antenna: Schwarzbeck BBHA9120D
Measurement Preamplifier; EMC118A45SE,Gain 47dB max
Measurement Distance: 3m
Measurement Cable: EMC104=8M+3M+1M

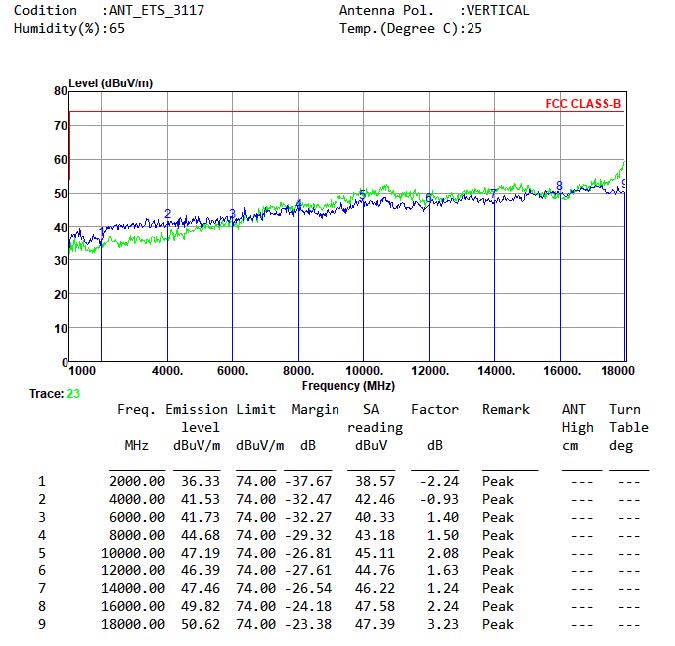

Measurement condition 2:
Measurement antenna: ETS 3117(Blue trace), Schwazbeck BBHA9120D(Green trace)
Measurement Preamplifier: EMC118A45SE
Measurement cable : EMC107(Blue Trace) =7M+2.5M+1M,EMC104(Green trace) =8M+3M+1M
Measurement Distance: 3m
Measurement Detector: Peak Trace
RBW=1MHz
VBW=3MHz
