EMC0518A45SE, 500 MHz - 18 GHz, 45dB gain, Low Noise Preamplifier

  • 500 MHz - 18 GHz Frequency Range
  • Compensation long cable loss for EMI Measurement
  • Improve system noise floor flatness
  • High EMI performance
  • High linearity LNA for EMI measurement
  • High dynamic range
  • Unconditionally Stable
  • State-of-the-Art Technology

PARTNER:

MARKETS:

TEST STANDARDS:

Data Sheet

SPECIFICATIONS

EMC0518A45SE, 500 MHz - 18 GHz, 45dB gain, Low Noise Preamplifier

Check out our Preamplifier Selection Guide.

Features Description

  • 500 MHz - 18 GHz Frequency Range
  • Compensation long cable loss for EMI Measurement
  • Improve system noise floor flatness
  • High EMI performance
  • High linearity LNA for EMI measurement
  • High dynamic range
  • Unconditionally Stable
  • State-of-the-Art Technology

Spesifications
Frequency Range 500MHz-18GHz
Noise Figure 3 dB max

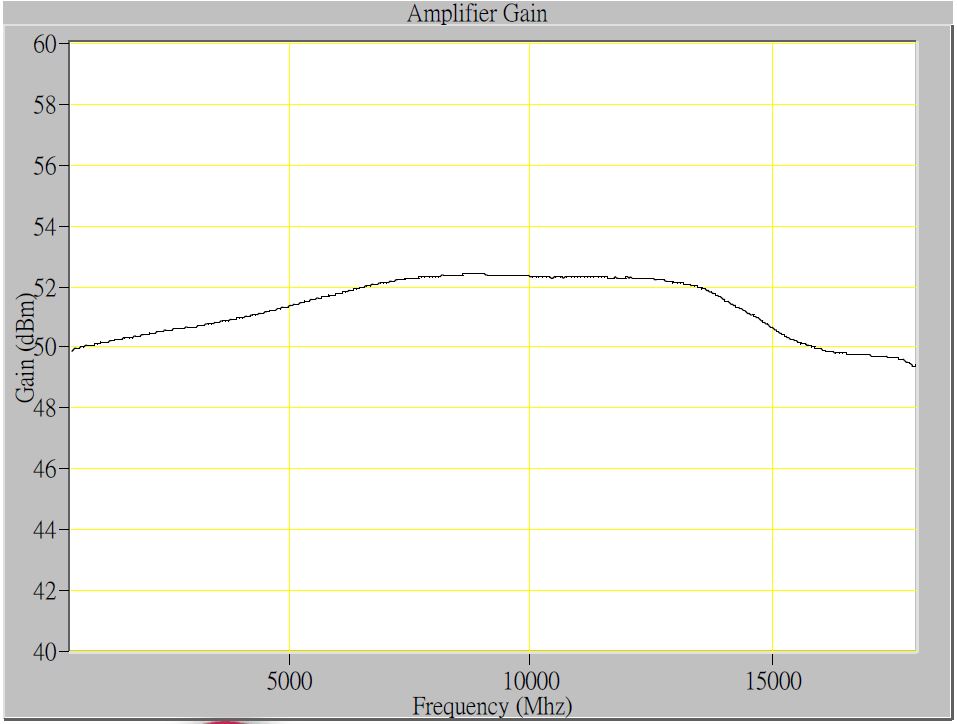

Gain (dB min) 45 dB min
Gain flatness  +/- 2.5dB
P-1dB Compression Point 15 dBm min
Input VSWR/output VSWR 2.5:1 / 2.5:1 max

Power Requirements 110Vac/230Vac
Output connectors 50-ohm SMA Female
Size 145mm*75mm*66mm(158mm)
217mm*330mm*100mm
Net Weight  628g(870g)/3000g

Built AC input main power

grounding detect circuit





Versions

  • EMC0518A45B Bench Model
  • EMC0518A45SE-001 50mm tube clamp to mount on Antenna mast +power Supply with 6m cable
  • EMC0518A45SE-002 22mm tube clamp to mount on Antenna +power Supply with 6m cable
  • EMC0518A45SE-003 52mm Box clamp to mount on Antenna mast +power Supply with 6m cable
