The TBL50100-1B is a single path 50µH (+5 ?) // 50 ? LISN for conducted emission measurements of DC or AC-powered electronic equipment. It is designed according to CISPR 16-1-2 and MIL-STD-461G standards and characterized in the frequency range of 10 kHz to 100 MHz.

Setting a high current jumper shorts the 5 Ohm resistor and configures it as 50? // 50µH LISN according to CISPR 16-1-2. Removing the jumper configures the LISN to (50µH + 5 ?) // 50 ? for MIL-STD application. The LISN is characterized from 10 kHz to 100 MHz.

Combining two LISN with the Tekbox LISN Mate enables separate measurement of common mode and differential mode noise. EUTs with 3 phase supply require three or four pieces of TBL50100-1B, depending on whether the product is supplied in delta or star configuration.

An exposed bottom panel enables convenient ground plane connection. The unit comes equipped with a Nmale to N-male RG223 cable.

• LISN type: single path V-AMN, configurable (jumper) as 50?/50µH+5 ? or 50?/50µH; no 250µH pre-filter
• Characterized Frequency range: 10 kHz – 100 MHz
• DC Resistance: < 20 m?
• Maximum current: 82 A continuous, 100A for 15 minutes; see heat up characteristics plot
• Maximum operating voltage range: 0 – 500V DC; 0 – 270V AC (50/60 Hz), 0 – 120V AC (400 Hz)

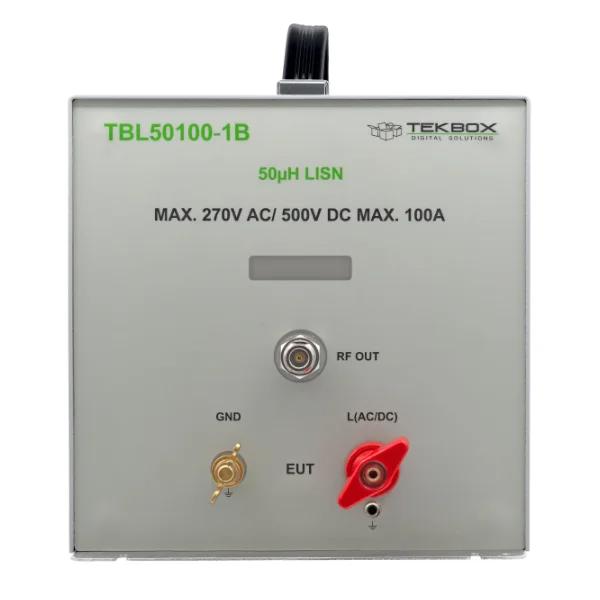

• EUT connector: binding post M8, 4mm center hole, 100A, 1kV, Schützinger POL 102 L / RT

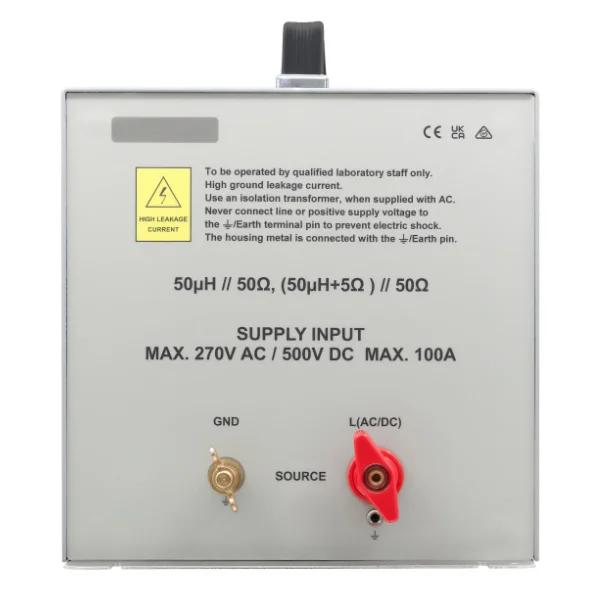

• SOURCE connector: binding post M8, 4mm center hole, 100A, 1kV, Schützinger POL 102 L / RT
• Earth: 8mm Earth stud with wing-nut, exposed stainless steel bottom panel with mounting slots and countersunk hole for 4mm screw
• RF connector: N-Female
• Jumper: Harwin D3087-98
• Dimensions: W x H x L; 230 mm x 230 mm x 350 mm;
• Weight: 5.3 kg

• EMC conducted noise measurements
