Products
MAG 1000, 120A/m CW, 1100Am Short Duration, Power Frequency Magnetic Field
MAG 1000
- 1-120A/m Contiunus testing
- 100-1100A/m Short Duration 1-3sec
- Test either 50Hz & 60Hz Selectable
- 1m square Loop

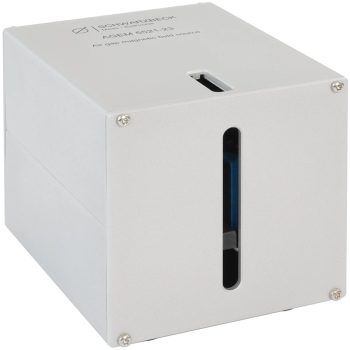

AGEM 5521-23 - Electromagnet, DC - ~1MHz, 23 Turn
Electromagnet
Strong magnetic fields in a precisely defined test gap.
Generate magnetic fields from DC to approximately 1 MHz for experimental applications. The AGEM 5521-23 combines a 23-turn coil, a split toroidal ferromagnetic core and a built-in monitor loop in a compact aluminum housing.
NFCN 9732-x nF - Compensation Network for AGEM 5521-23
Frequency-specific compensation for the AGEM 5521-23
The Schwarzbeck NFCN 9732-x nF reduces the series impedance of the AGEM 5521-23 electromagnet at a customer-selected frequency up to 1 MHz, enabling high coil currents with generator voltages below 20 V RMS under compensated operating conditions.
Specify your working frequency when ordering. Connection cables are optional.
