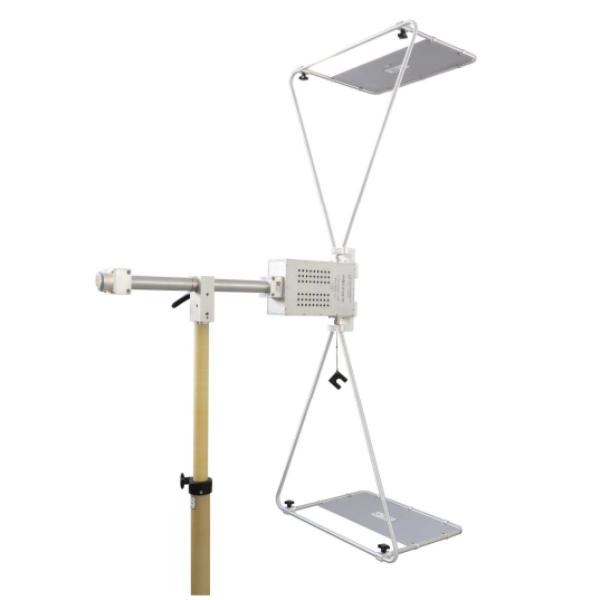

VHBD 9134-10 + Elements, 20 - 280 MHz, 10kW High-Power Biconical Antenna

  • VHBD 9134-10 antenna holder/balun in combination with required elements:
    • Biconical Elements: BBLA 9136
    • Open-Cone Elements: BBFA 9146, BBA 9106,
    • Folding Triangular Elements: TRI 0630
    • Booster Coils  BCOI 9180xW in 2, 3, 4, 5 turn versions
  • High power antenna holder/balun
  • 50 Ohm
  • 20-280 MHz, 10 kW, Type 13/30 connector - female



PARTNER:

MARKETS:

CATEGORIES:

TEST STANDARDS:

VHBD 9134-10 Data Sheet

SPECIFICATIONS



VHBD 9134-10 + Elements, 20 - 280 MHz, 10kW High-Power Biconical Antenna

  • VHBD 9134-10 antenna holder/balun in combination with required elements:
    • Biconical Elements: BBLA 9136
    • Open-Cone Elements: BBFA 9146, BBA 9106,
    • Folding Triangular Elements: TRI 0630
    • Booster Coils  BCOI 9180xW in 2, 3, 4, 5 turn versions
  • high power antenna holder/balun
  • 50 Ohm
  • 20-280 MHz, 10 kW, Type 13/30 coonector

The high power balun VHBD 9134-10 was designed for immunity tests in the frequency range from 20 MHz to 280 MHz. The symmetrical terminals can accept several types of radiating elements with 10 mm shaft. A transformation ratio for impedances of 4:1 and an extremely low-loss design allows the generation of highest field strengths in the VHF range. The mounting tube is equipped with a 13-30 coaxial connector.



Specifications:
Type:  High Power Balun 4:1 with 10 mm element fixtures.
 Frequency Range, nominal:  20 - 280 MHz
 Impedance:  50 Ω
 Power (EMC TX): 10 kW @ 20-30 MHz
8 kW @ 50 MHz
6 kW @ 100 MHz
4 kW @ 200 MHz

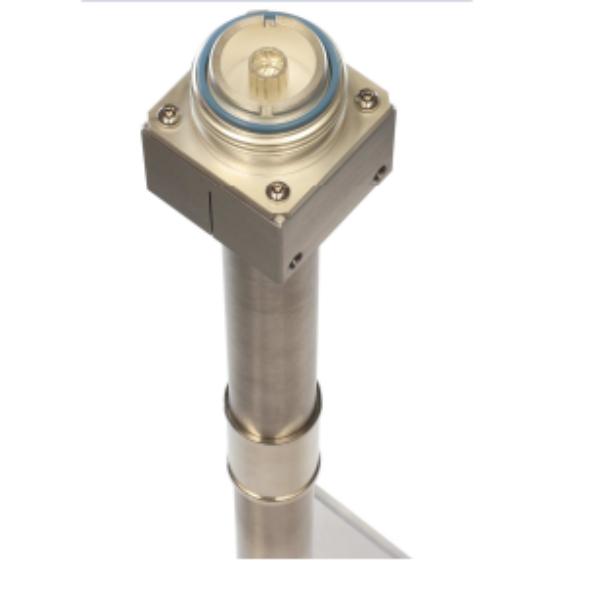

 Coaxial Connector: 13-30 IEC 60169-5
 Total weight:  5.5 kg
 Mast Adapter AA 9202-38
 Antenna shaft (Tube):  38 mm

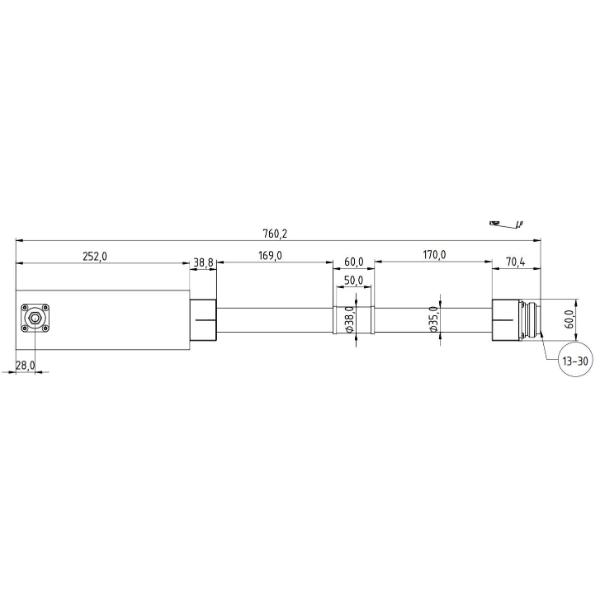

Dimensions  762 x 210 x 90 mm
