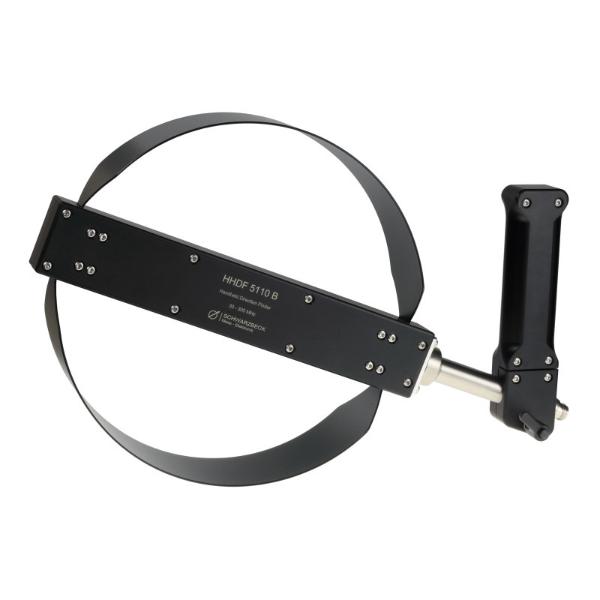

HHDF 5110 B - 30-300MHz Handheld Direction Finder

  • Handheld Direction Finder
  • 30-300 MHz
  • diam. 300 mm
  • Both horizontal and vertical polarizations
  • BNC Connector

PARTNER:

MARKETS:

CATEGORIES:

TEST STANDARDS:

Select Options/Sizes:

Data Sheet

SPECIFICATIONS

HHDF 5110 B - 30 kHz - 300MHz Handheld Direction Finder



The Handheld Direction Finder HHDF 5110 B was designed to locate radio transmitters in conjunction with a suitable portable receiver or spectrum analyzer. Thanks to its robust structure, the HHDF 5110 B is suitable for outdoor use, even under harsh environmental conditions. Since the directional pattern in the E-plane and  H-plane is nearly equal, both horizontal and vertical polarizations can be measured well.

Specifications:
Frequency range: 30 - 300 MHz
Nominal Impedance 50 ohm
Connector N Female
3 dB Beamwidth E-plane typ. 150°
3 dB Beamwidth H-plane typ. 170°
VSWR Typ. 2:1
Gain / Antenna Factor -40dBi … - 2 dBi / 20 dB/m … 36 dB/m
Mounting Tube 22 mm
Dimensions 940 mm x 300 mm x 80 mm
Weight: 1.1 kg
Accessories HHDF 5110 A (3-30 MHz), HHDF 5110 C (200-500 MHz), HHDF Handle, Carrying case CCA
