HHDF 5110 A - 9 kHz - 30MHz Handheld Direction Finder

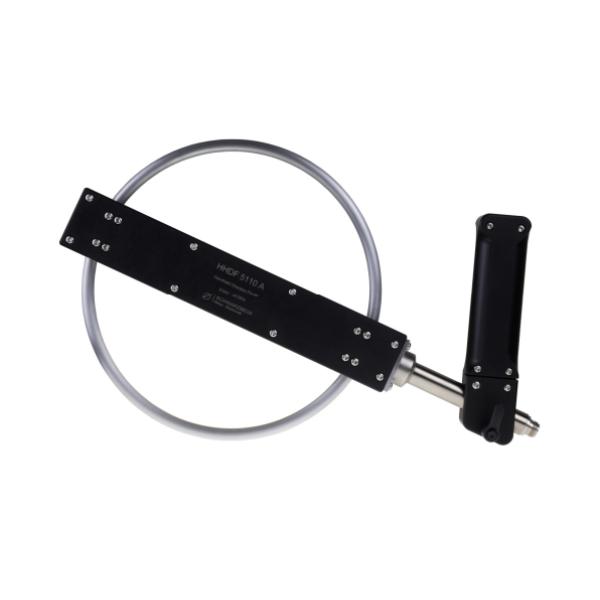

The Handheld Direction Finder HHDF 5110 A was designed to locate radio transmitters in conjunction with a suitable portable receiver or spectrum analyzer. Thanks to its robust structure, the HHDF 5110 A is suitable for outdoor use, even under harsh environmental conditions. Since the directional pattern in the E-plane and  H-plane is nearly equal, both horizontal and vertical polarizations can be measured well.

Specifications:
Frequency range: 9 kHz - 30 MHz
Nominal Impedance 50 ohm
Connector N Female
3 dB Beamwidth E-plane Omnidirectional
3 dB Beamwidth H-plane typ. 94°

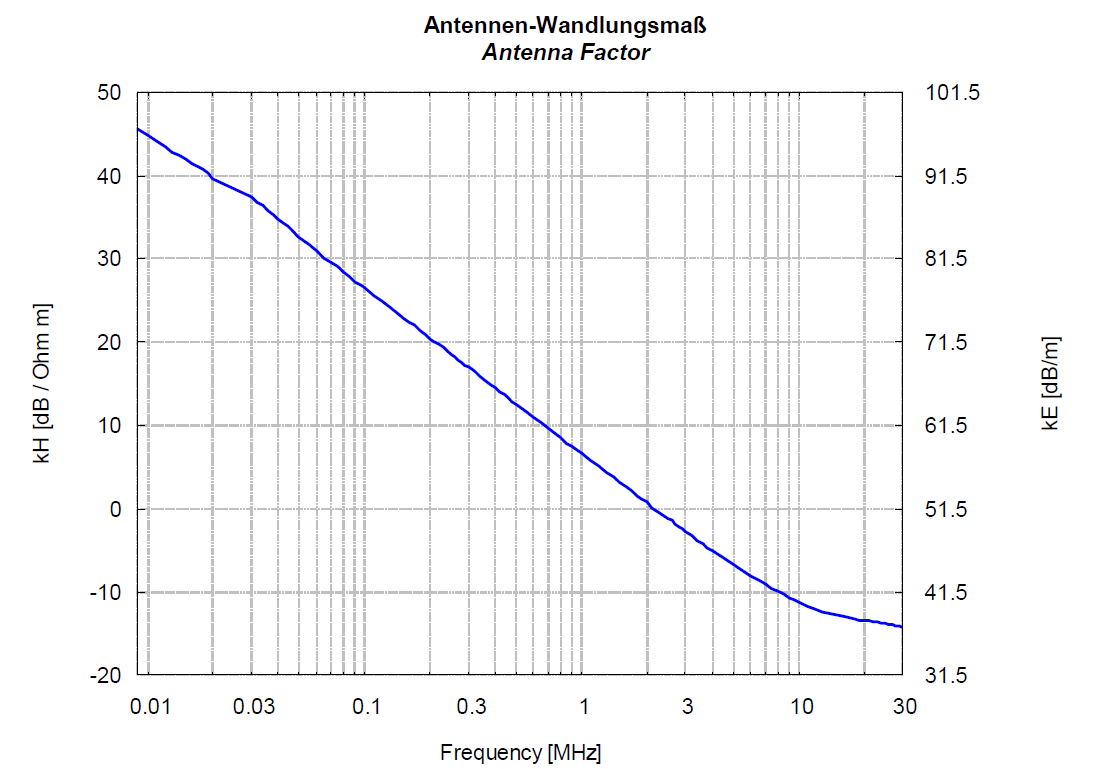

Antenna factor kH -15 - 45 dB/Ohm m
Impedance: (50 µH + 5Ω) || 50 Ω
Mounting Tube 22 mm
Dimensions 940 mm x 300 mm x 40 mm
Weight: 0.9 kg
Accessories HHDF 5110 B (30-300 MHz), HHDF 5110 C (200-500 MHz), HHDF Handle, Carrying case CCA
